9 | Configuration
Installer reference guide
110
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05

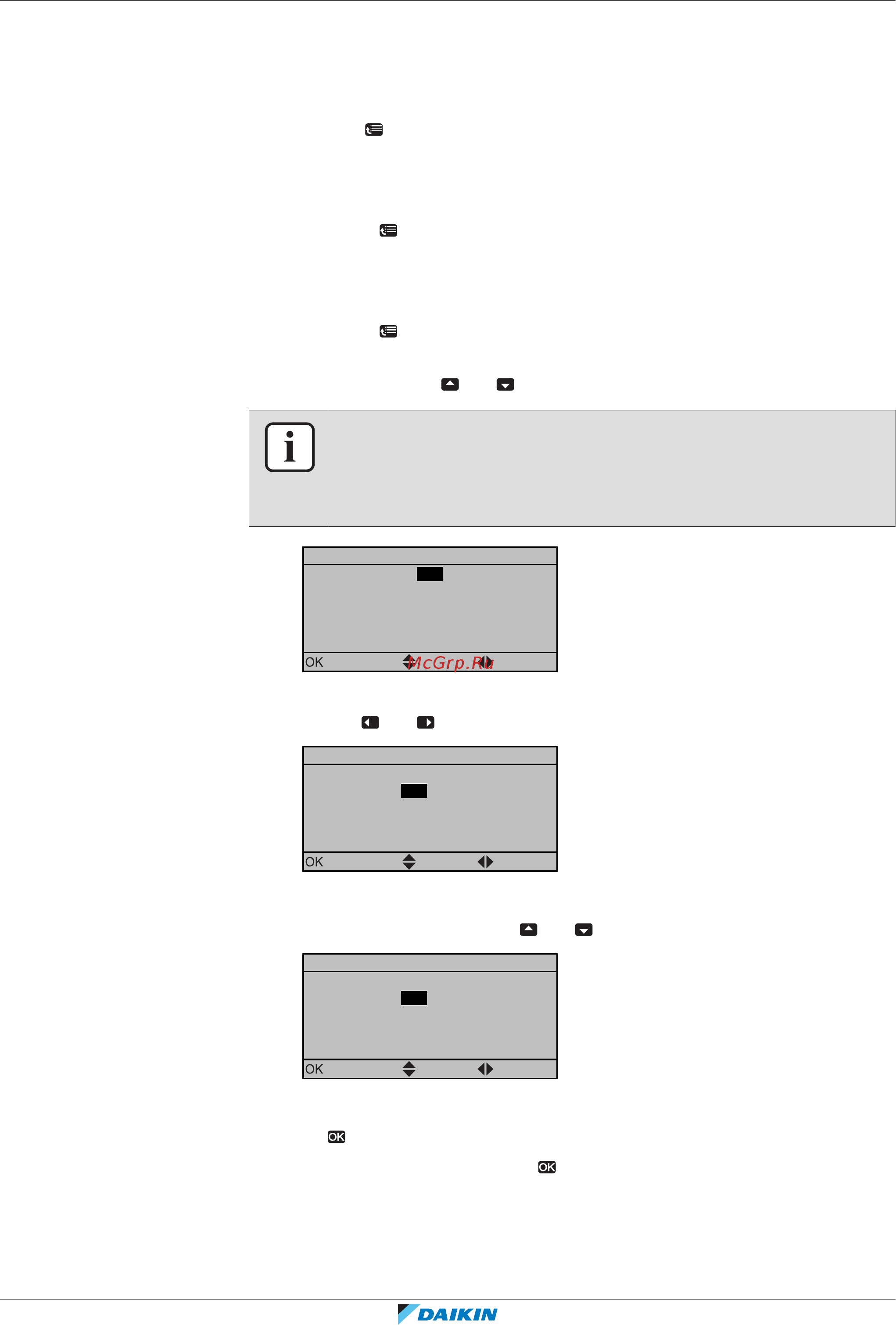

9.1.2 To access the most used commands
To access the installer settings
1 Set the user permission level to Installer.
2 Go to [A]: > Installer settings.
To access the overview settings
1 Set the user permission level to Installer.
2 Go to [A.8]: > Installer settings > Overview settings.
To modify an overview setting
Example: Modify [1‑01] from 15 to 20.
1 Go to [A.8]: > Installer settings > Overview settings.
2 Go to the corresponding screen of the first part of the setting (in this example
[1-01]) by using the and button.
INFORMATION
An additional 0-digit is added to the first part of the setting when you access the
codes in the overview settings.
Example: [1‑01]: "1" will result in "01".
01
02
06
0a
0e
00 03
07
0b
0f
0000
04
08
0c
00 01
05
09
0d
15
Overview settings
Confirm Adjust Scroll
3 Go to the corresponding second part of the setting (in this example [1-01]) by
using the and button.
01
02
06
0a
0e
00 03
07
0b
0f
0000
04
08
0c
00 01
05
09
0d
15
Overview settings
Confirm
Adjust
Scroll
Result: The value to be modified is now highlighted.
4 Modify the value by using the and button.
01
02
06
0a
0e
00 03
07
0b
0f
0000
04
08
0c
00 01
05
09
0d
20
Overview settings
Confirm
Adjust
Scroll
5 Repeat previous steps if you have to modify other settings.
6 Push to confirm the modification of the parameter.
7 At installer settings menu, press to confirm the settings.
