8 | Electrical installation
Installer reference guide
103
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
7
9
YCY2
X2M
12
3
A4P

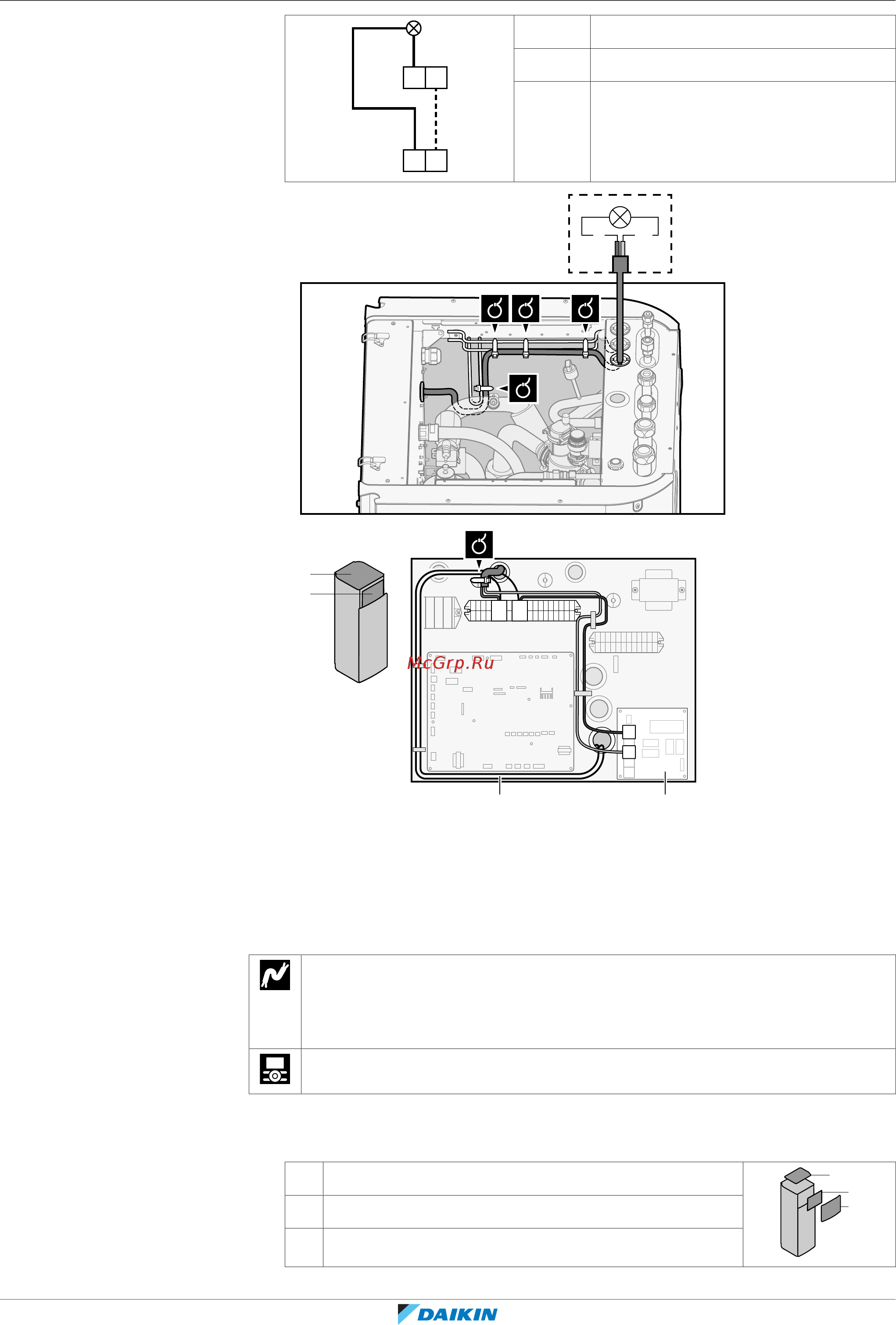

1+2 Wires connected to the alarm output
3 Wire between X2M and A4P
A4P Installation of EKRP1HBAA is
required.
A
Y27
B
A
B
7 9
X2M
A4P
Y2YC
X1M
ab
a Installation of EKRP1HBAA is required.
b Prewiring between X2M/7+9 and Q1L (=thermal protector backup heater). Do NOT change.
4 Fix the cable with cable ties to the cable tie mountings.
8.3.9 To connect the changeover to external heat source
Wires: 2×0.75mm²
Maximum load: 0.3A, 250VAC
Minimum load: 20mA, 5VDC
[A.2.2.6.1] Ext. backup heat src
1 Open the service cover. See "6.2.2To open the outdoor unit"[453].
2 Open the following (see "6.2.4To open the indoor unit"[454]):
1 Top panel
1
2
3
2 Upper front panel
3 Upper switch box cover
