Daikin EHFH03S18DA3V [19/204] About the units and options
![Daikin EHFH03S18DA3V [19/204] About the units and options](/views2/1749128/page19/bg13.png)
4 | About the units and options
Installer reference guide
19
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
4 About the units and options
In this chapter
4.1 Overview: About the units and options ................................................................................................................................. 19
4.2 Identification........................................................................................................................................................................... 19
4.2.1 Identification label: Outdoor unit .......................................................................................................................... 19
4.2.2 Identification label: Indoor unit ............................................................................................................................. 20
4.3 Combining units and options.................................................................................................................................................. 20
4.3.1 Possible combinations of indoor unit and outdoor unit ....................................................................................... 20
4.3.2 Possible options for the outdoor unit.................................................................................................................... 20
4.3.3 Possible options for the indoor unit ...................................................................................................................... 21
4.1 Overview: About the units and options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
4.2 Identification
NOTICE
When installing or servicing several units at the same time, make sure NOT to switch
the service panels between different models.

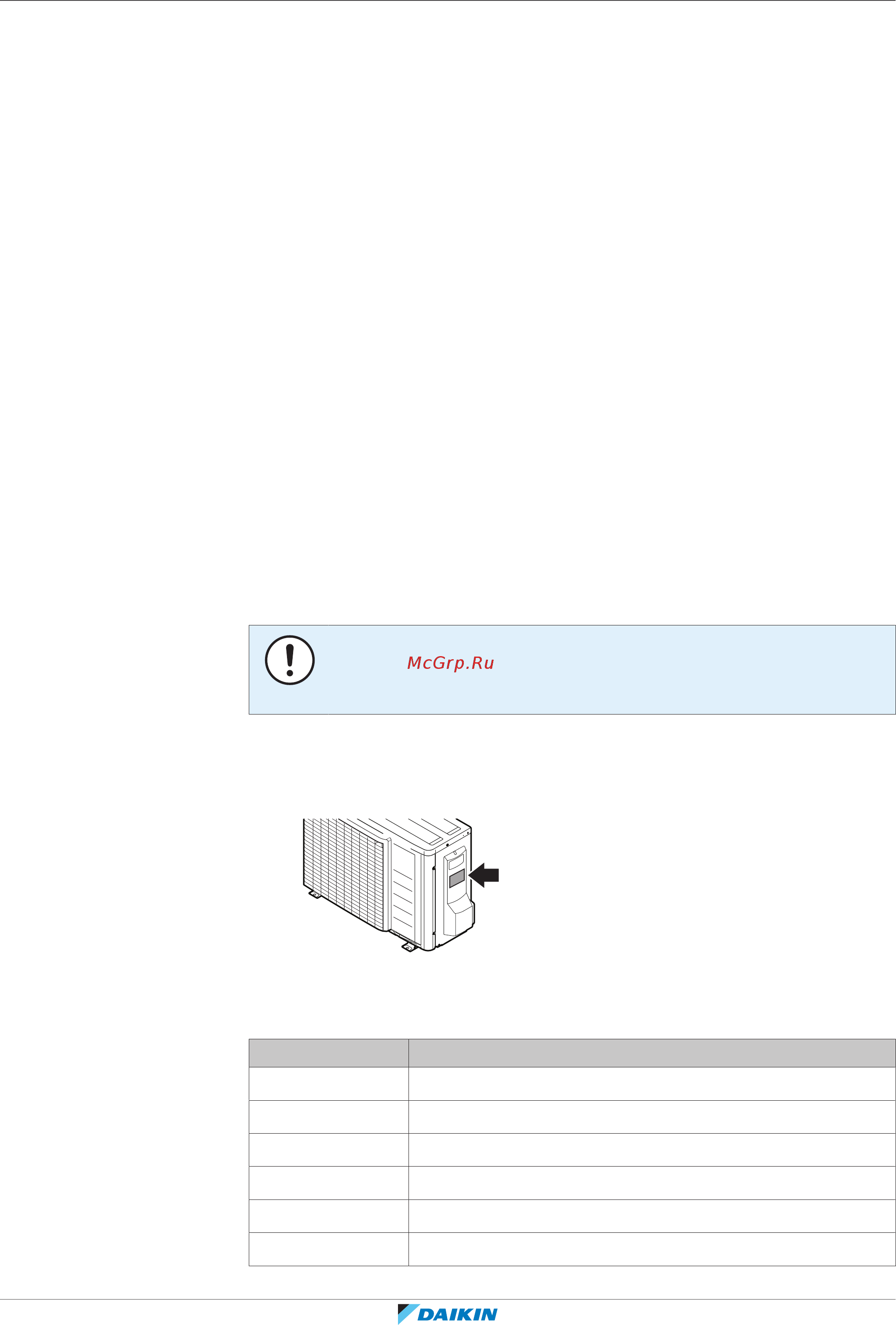

4.2.1 Identification label: Outdoor unit
Location
Model identification
Example: ERLA03DAV3
Code Explanation
ER European split outdoor pair heat pump
L Low water temperature – ambient zone: −10~−20°C
A Refrigerant R32
03 Capacity class
DA Model series
V3 Power supply
