13 | Troubleshooting
Installer reference guide
173
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05

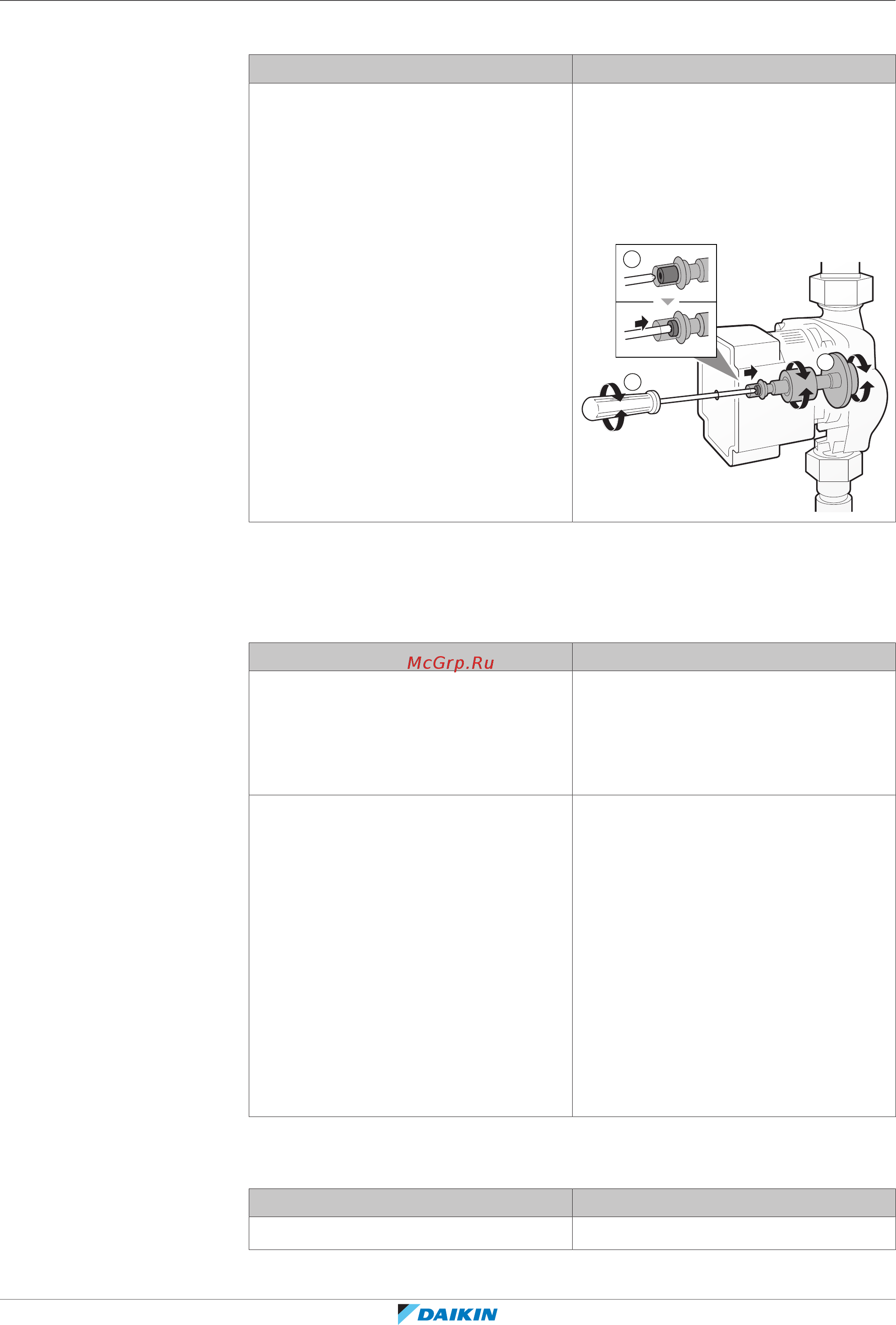

13.3.4 Symptom: The pump is blocked
Possible causes Corrective action
If the unit has been powered off for a
long time, lime might block the rotor of
the pump.
Use a PhilipsNo.2 screwdriver to push
the deblocking screw of the rotor in
(0.5cm). Then turn the deblocking
screw back and forth until the rotor is
deblocked.
(a)
Note: Do NOT use excessive force.
2
2
1
(a)
If you cannot deblock the rotor of the pump with this method, you will need to
disassemble the pump and turn the rotor by hand.
13.3.5 Symptom: The pump is making noise (cavitation)
Possible causes Corrective action
There is air in the system Purge air manually (see "To perform a
manual air purge"[4157]) or use the
automatic air purge function (see "To
perform an automatic air
purge"[4157]).
The water pressure at the pump inlet is
too low
Check and make sure that:
▪ The water pressure is >1bar.
▪ The water pressure sensor is not
broken.
▪ The expansion vessel is NOT broken.
▪ The valve (if equipped) of the water
circuit towards the expansion vessel is
open.
▪ The pre-pressure setting of the
expansion vessel is correct (see
"7.2.4 Changing the pre-pressure of
the expansion vessel"[470]).
13.3.6 Symptom: The pressure relief valve opens
Possible causes Corrective action
The expansion vessel is broken Replace the expansion vessel.
