Chapter 2: Hardware Information

2-24

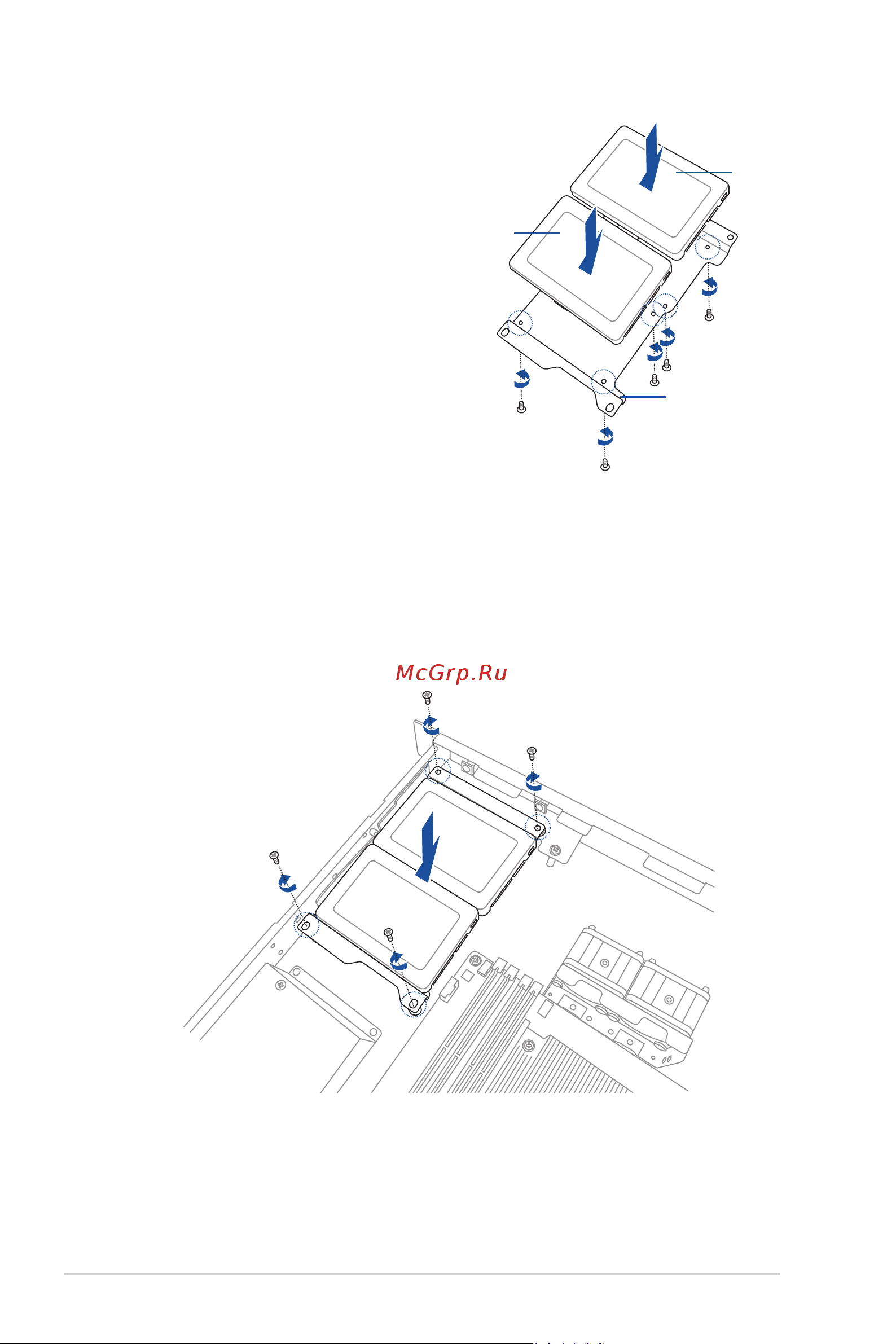

5. Prepare the SSD drive tray.

6. Place and orient two 2.5-inch SSDs on

the SSD drive tray as shown.

Ensure that the screw holes on the

underside of the 2.5-inch SSDs match

the screw holes on the SSD drive tray.

7. Secure the 2.5-inch SSDs to the SSD

drive tray using four screws each.

8. Carefully place the 2.5-inch SSD and the SSD drive tray assembly into HDD bay 2.

9. Secure the 2.5-inch SSD and SSD drive tray assembly to the HDD bay 2 using the

screws removed in step 3.

Ensure that the SSD drive tray is seated securely in place.

SSD drive tray

SSD 1

SSD 2
