Asus ESC8000 G4 [113/192] Advanced menu

5-15

ASUS ESC8000 G4 Series

Optimized Performance Settings [Default]

This option allows you to select a recommended BIOS setting to optimize performance.

System Topology [Single Root]

Allows you to switch the system PCI-E topology.

Conguration options: [Single Root] [Dual Root]

Asus Turbo Ratio Lock (ATRL) [Disabled]

Allows you to keep the processor operating at the turbo highest frequency for maximum

performance.

Conguration options: [Disabled] [Enabled]

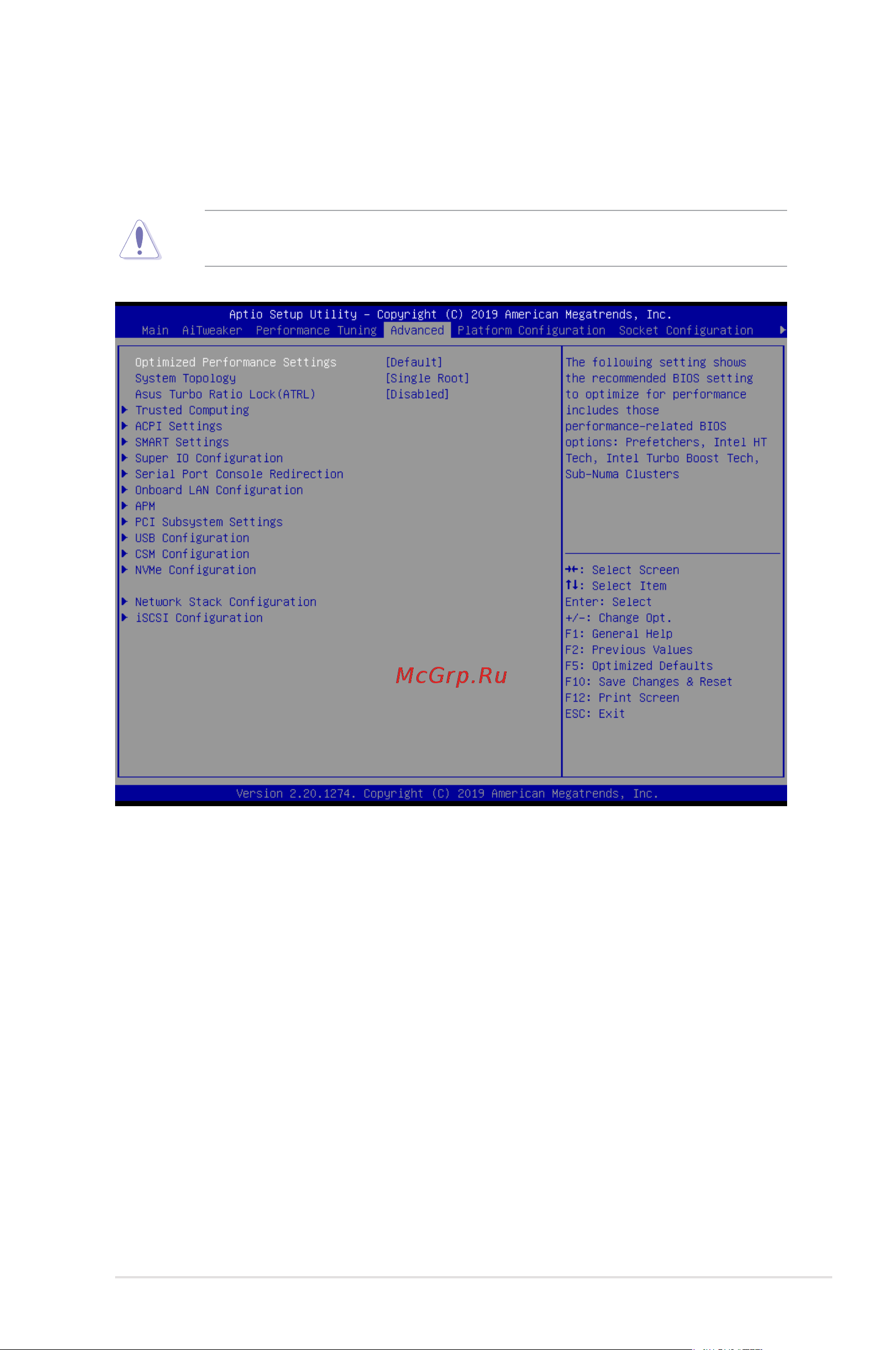

5.6 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

Take caution when changing the settings of the Advanced menu items. Incorrect eld

values can cause the system to malfunction.
