Asus ESC8000 G4 [83/192] Internal connectors

ASUS ESC8000 G4 Series

4-11

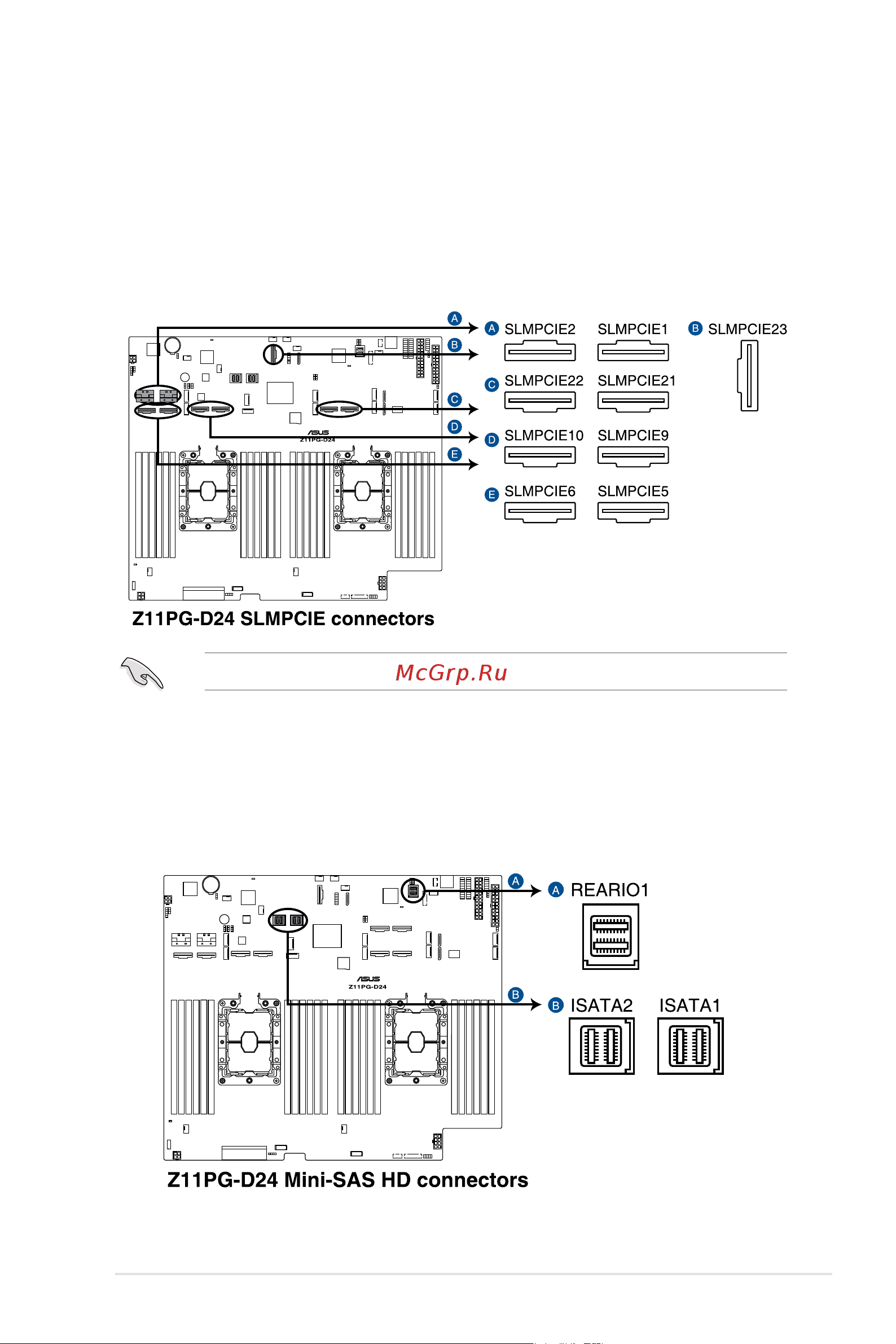

1. PCIE flex connectors (SLMPCIE1-2; SLMPCIE5-6; SLMPCIE9-10; SLMPCIE21-22;

SLMPCIE23)

These connectors allow you to connect PCIE ex cables to expand your motherboard

with additional PCIE connectors. The exible nature of the PCIE ex cable allows the

PCIE connectors to be positioned freely inside the server system.

2. Mini-SAS HD connector (ISATA1-2; REARIO1)

This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the

storage technology that supports Serial ATA. Each connector supports up to four

devices.

4.4 Internal connectors

The SLMPCIE23 connector supports two PCIe x4 and two sSATA signals.
