ASUS ESC8000 G4 Series

1-11

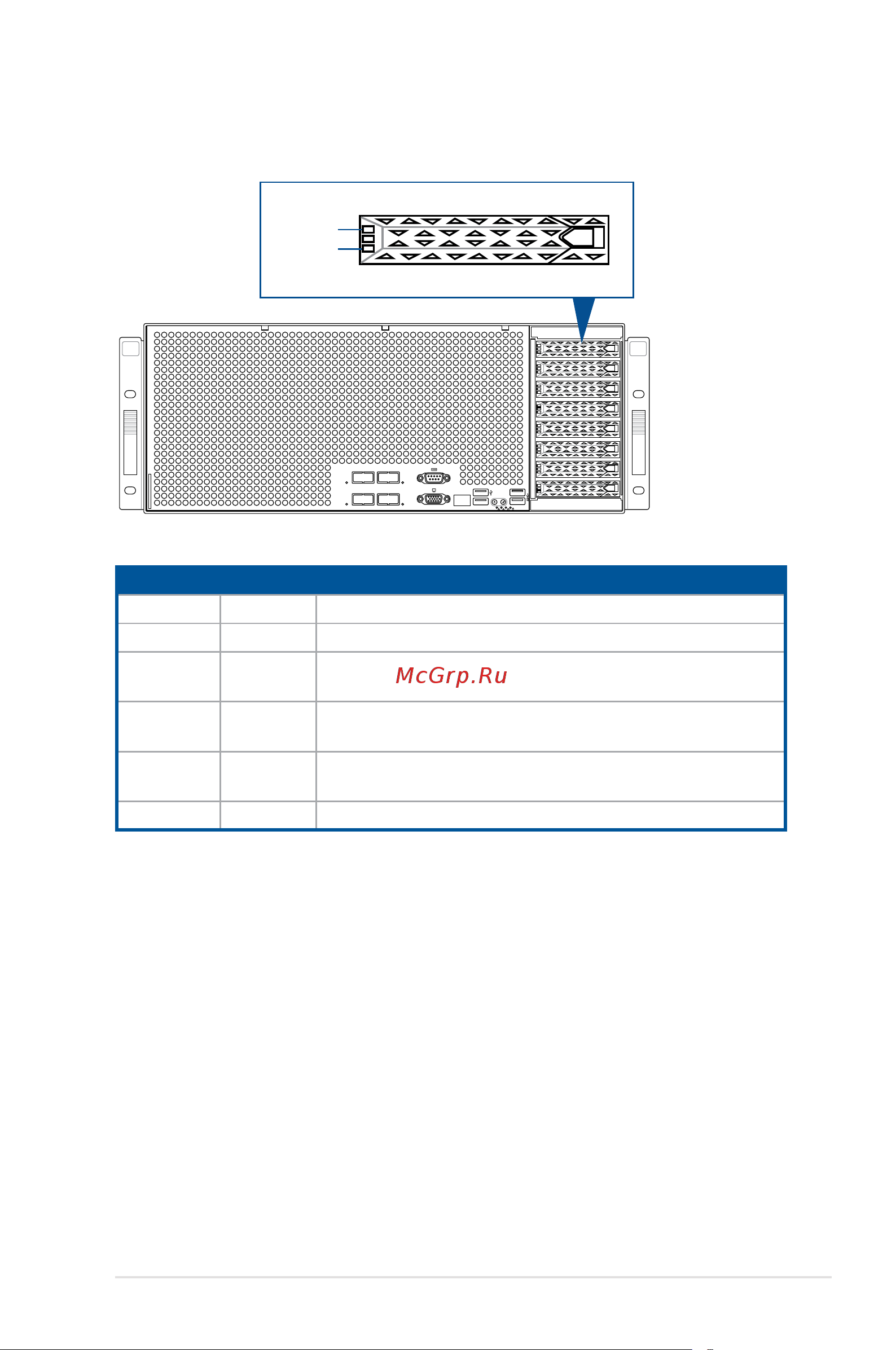

1.7.3 Storage device status LED

SATA/SAS Storage Device LED Description

GREEN ON SATA/SAS storage device power ON

RED ON Storage device has failed and should be swapped immediately

GREEN/

RED

Blinking RAID rebuilding

GREEN/

RED

Blinking Locate

GREEN/

RED

OFF Storage device not found

GREEN Blinking Read/write data from/into the SATA/SAS storage device

Red LED

Green LED
