Asus ESC8000 G4 [139/192] Event logs menu

5-41

ASUS ESC8000 G4 Series

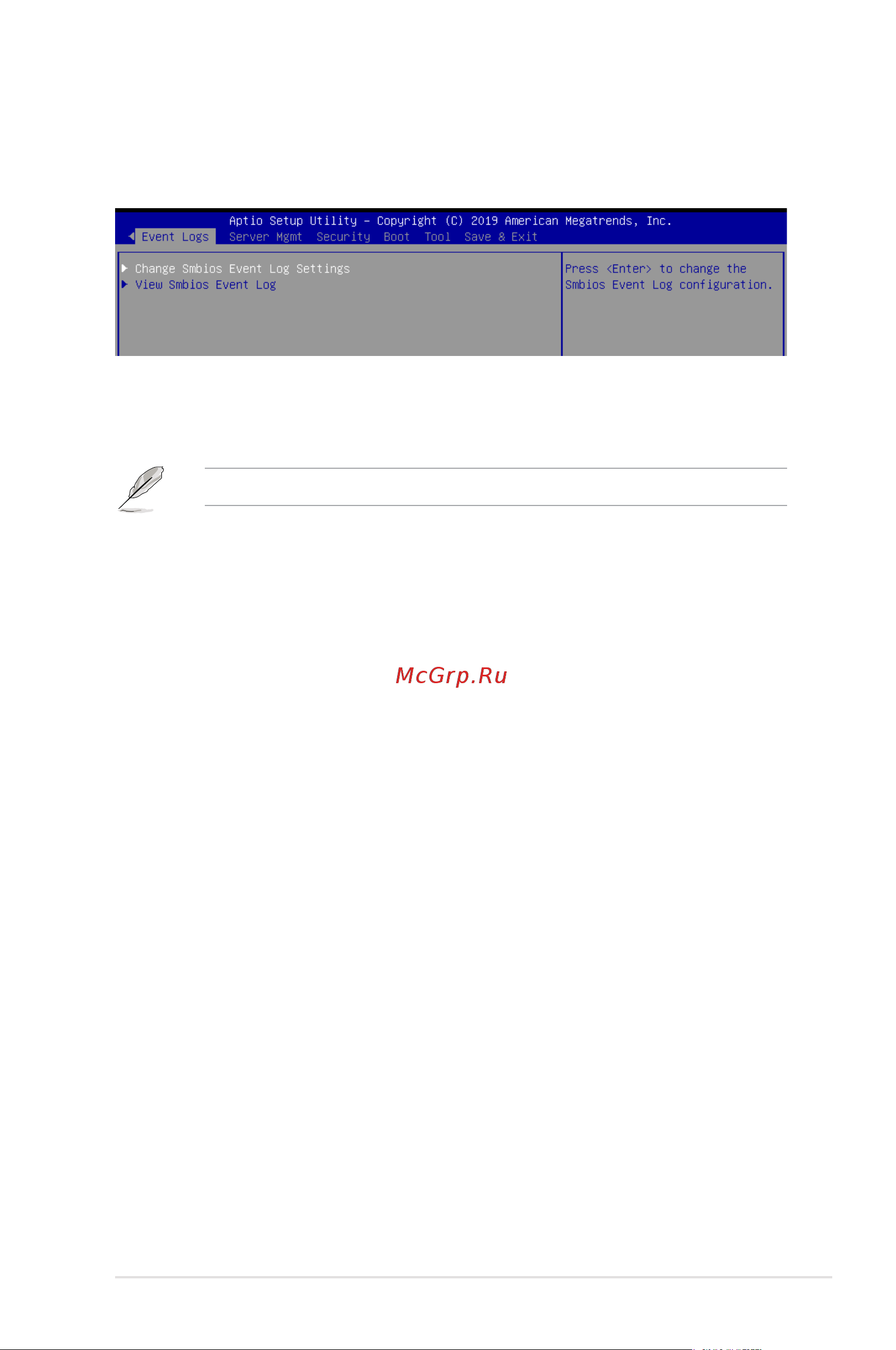

5.9 Event Logs menu

The Event Logs menu items allow you to change the event log settings and view the system

event logs.

5.9.1 Change Smbios Event Log Settings

Press <Enter> to change the Smbios Event Log conguration.

Enabling/Disabling Options

Smbios Event Log [Enabled]

Change this to enable or disable all features of Smbios Event Logging during boot.

Conguration options: [Disabled] [Enabled]

Erasing Settings

Erase Event Log [No]

Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation

during reset.

Conguration options: [No] [Yes, Next reset] [Yes, Every reset]

5.9.2 View Smbios Event Log

Press <Enter> to view all smbios event logs.

All values changed here do not take effect until computer is restarted.
