Asus ESC8000 G4 [45/192] Installing an asus pike ii card

2-23

ASUS ESC8000 G4 Series

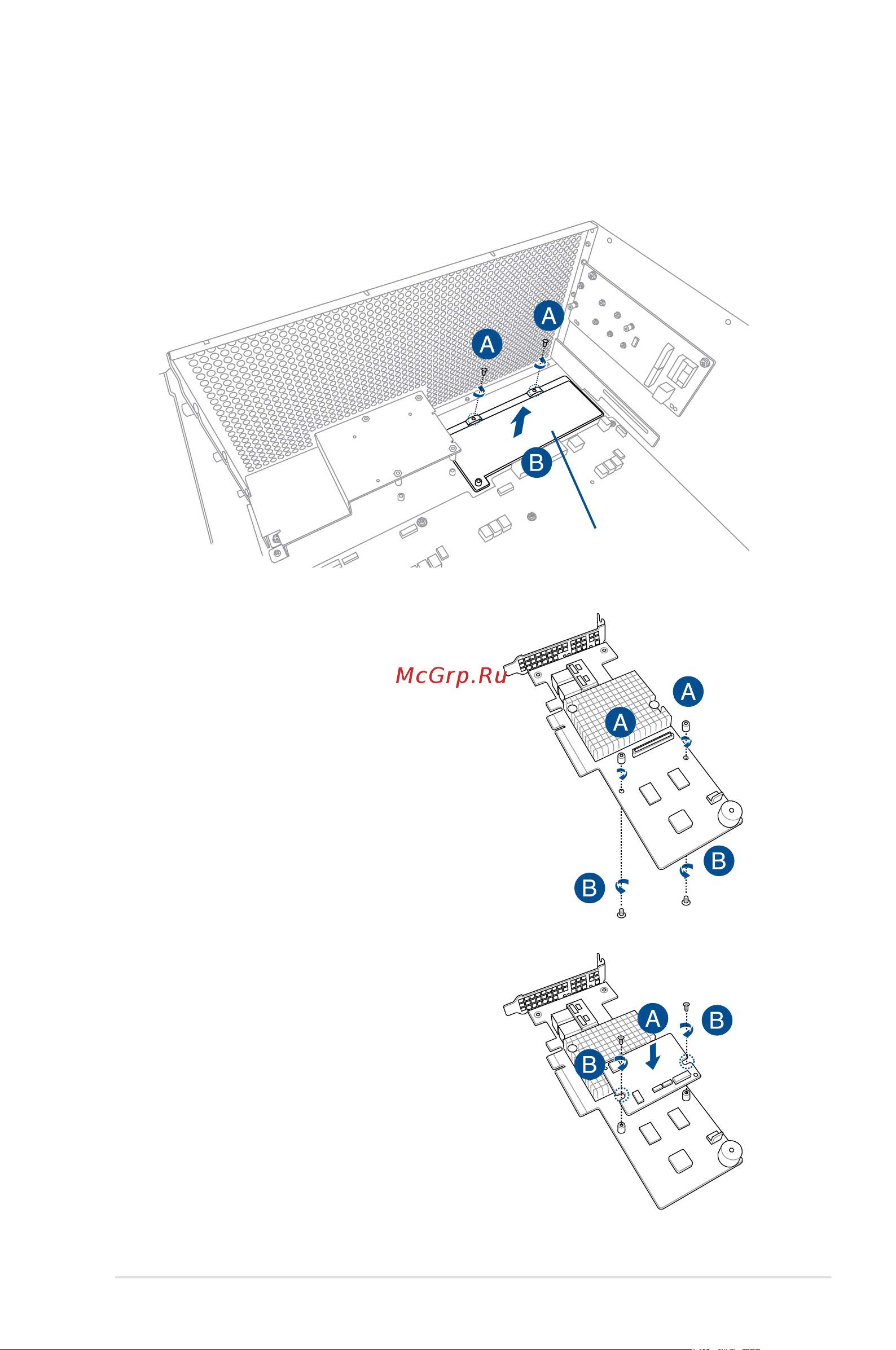

2.5.2 Installing an ASUS PIKE II card

ASUS PIKE II

card bracket

1. Remove the two (2) screws on the ASUS PIKE II card bracket (A), then remove the

ASUS PIKE II card bracket (B) from the chassis.

4. Align and install the Cache Vault Flash

Module to the connector on the ASUS

PIKE II card (A), then secure the Cache

Vault Flash Module to the screw washers

with the bundled screws (B).

2. Prepare the ASUS PIKE II card.

3. Align the two (2) screw washers to the

two screw holes on the ASUS PIKE II

card (A), then secure the bundled screws

to the screw washers from the bottom of

the ASUS PIKE II card (B).
