Chapter 2: Hardware Setup

2-22

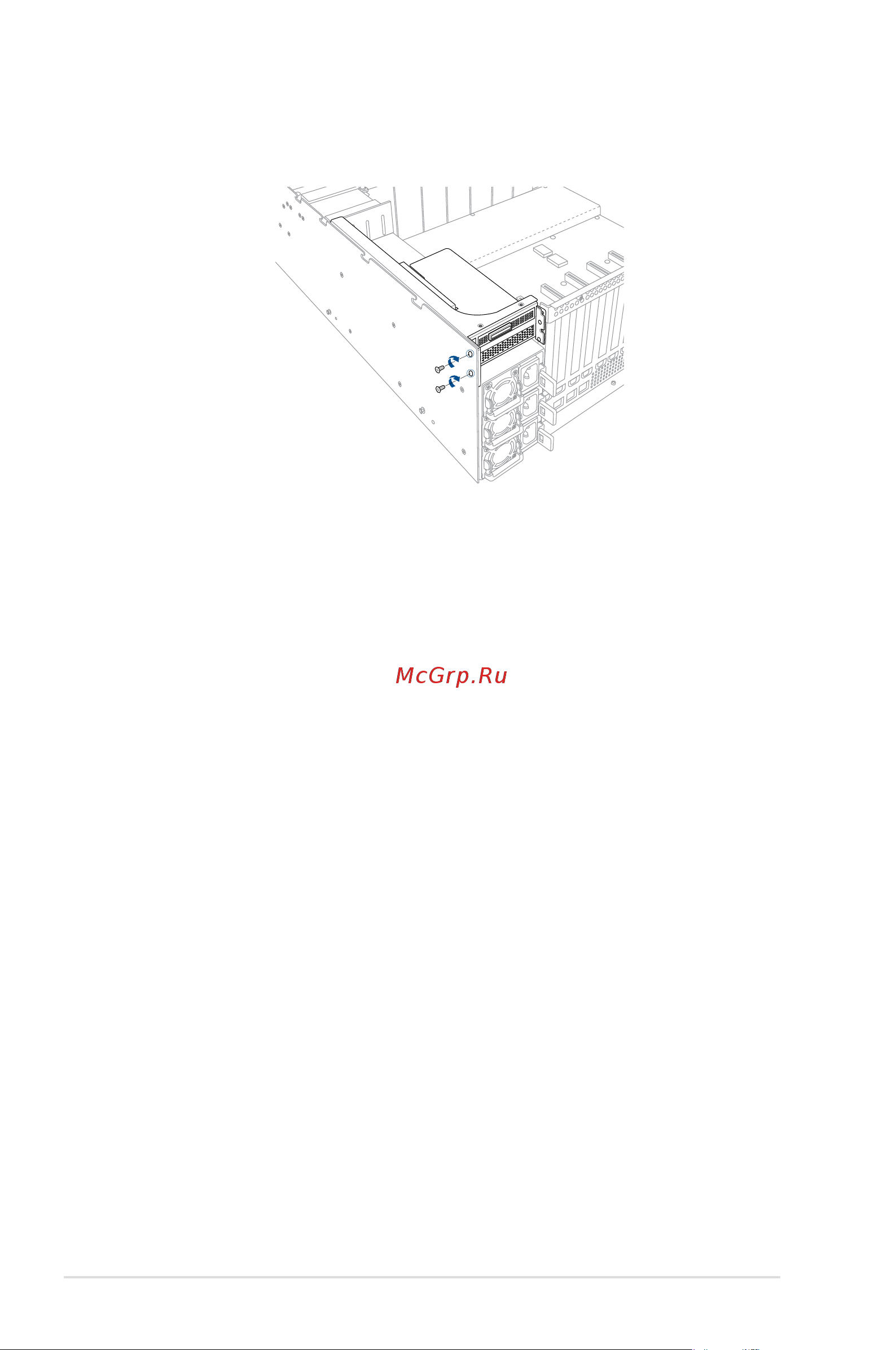

7. Secure the riser card and expansion card assembly with the two (2) screws that you

removed earlier in step 1.
