5-29
ASUS ESC8000 G4 Series

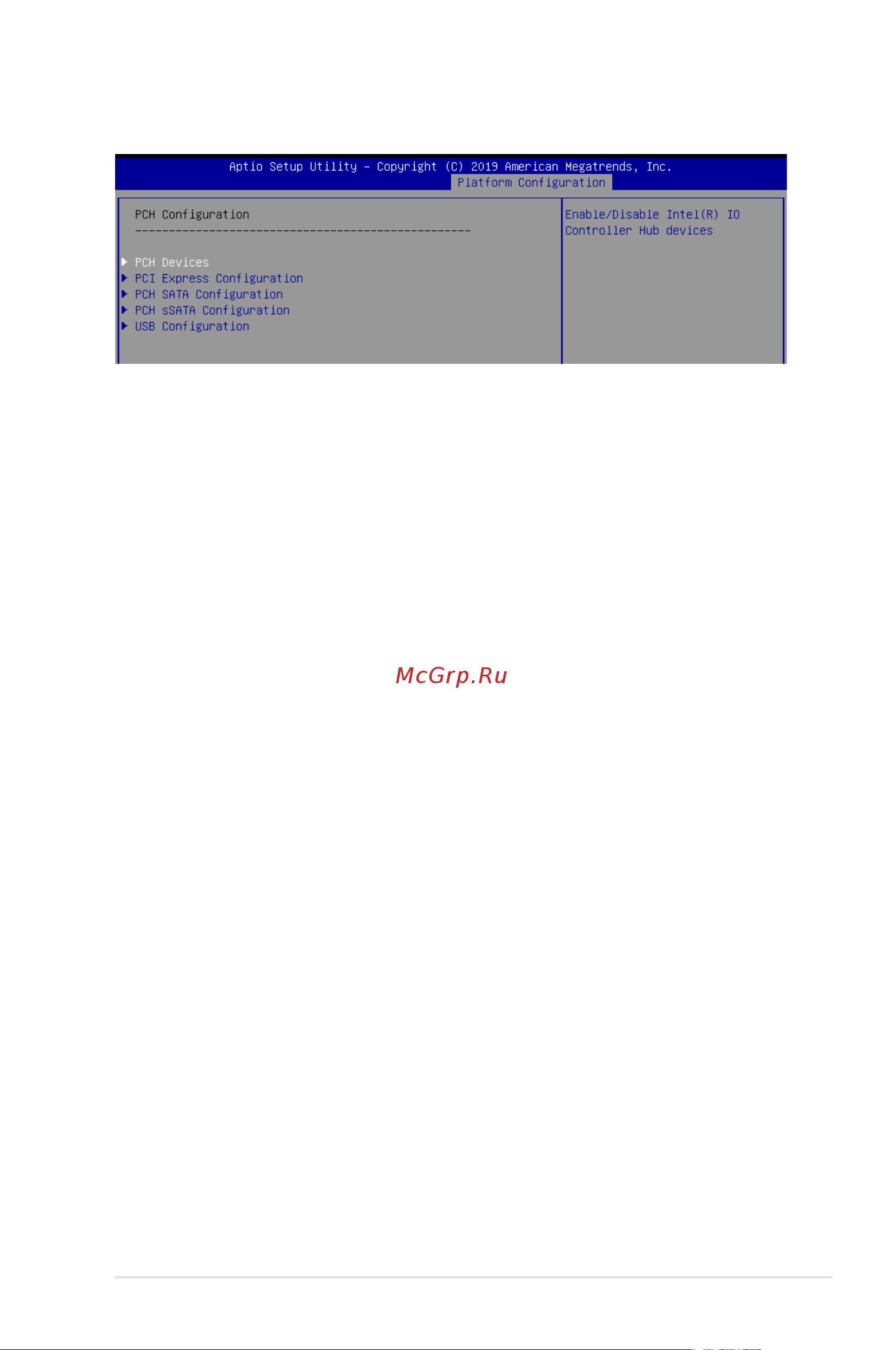

5.7.1 PCH Configuration
PCH Devices
DeepSx Power Policies [Disabled]
Allows you to congure the DeepSx Mode conguration.
Conguration options: [Disabled] [Enabled in S5] [Enabled in S4 and S5]
GP27 Wake From DeepSx [Disabled]
Allows you to enable or disable GP27 Wake From DeepSx.
Conguration options: [Disabled] [Enabled]
PCI Express Configuration
PCI-E ASPM Support (Global) [L1 Only]
Allows you to select ASPM support for all downstream devices.
Conguration options: [Per individual port] [L1 Only]
PCH DMI ASPM [Platform-POR]
Allows you to congure the PCH DMI ASPM.
Conguration options: [Platform-POR] [ASPM L1] [Disabled]
PCH SATA Configuration
SATA Controller [Enabled]
Allows you to enable or disable the SATA Controller.
Conguration options: [Disabled] [Enabled]
Configure sSATA as [AHCI]
Allows you to identify the SATA port connected to Solid State Drive or Hard Disk Drive.
Conguration options: [IDE] [AHCI] [RAID]
Support Aggressive Link Power Management [Enabled]
Allows you to enable or disable the Support Aggressive Link Power (SALP)
Management.
Conguration options: [Disabled] [Enabled]
