Asus ESC8000 G4 [40/192] Storage devices

Chapter 2: Hardware Setup

2-18

2.4 Storage devices

The ESC8000 G4 Series system supports hot-swap 2.5-inch SATA/SAS/NVME storage

devices. The storage device installed in the storage bay connects to the motherboard SATA/

SAS/NVME ports via the SATA/SAS/NVME backplane.

2.4.1 Installing the 2.5-inch SATA/SAS/NVME storage

device

NVME storage devices are only supported on the top 2 (two) storage bays. If you wish to

install an NVME storage device, ensure to install them to the 2 (two) top storage bays.

To install a 2.5-inch storage device:

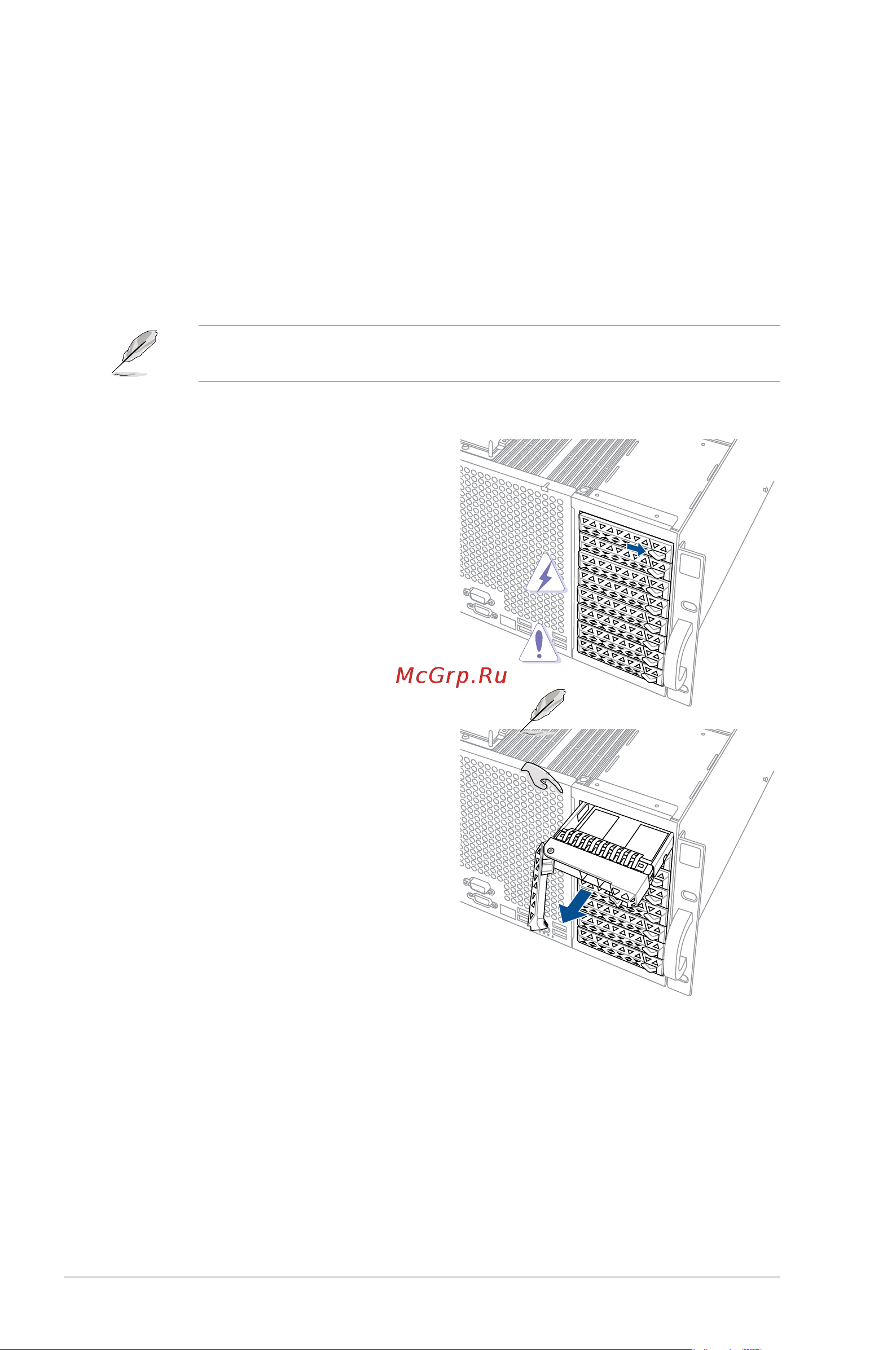

1. Press the spring lock.

2. Pull the tray lever outwards to remove

the storage device tray.
