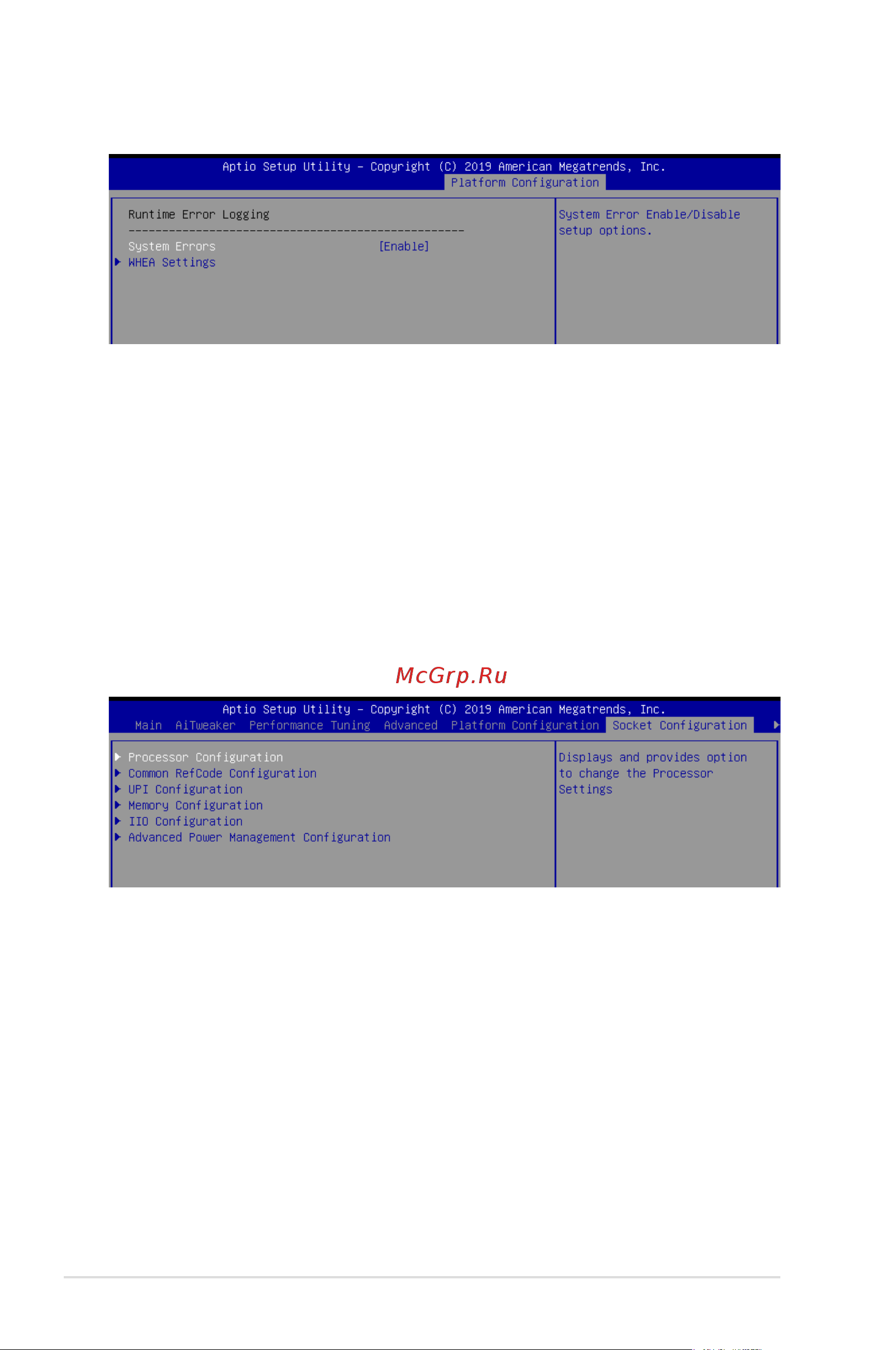

5.7.4 Runtime Error Logging Support

Runtime Error Logging

System Errors [Enabled]

This item allows you to enable or disable System Errors.

Conguration options: [Disabled] [Enabled]

Whea Settings

Whea Support [Disabled]

This item allows you to enable or disable the WHEA support.

Conguration options: [Disabled] [Enabled]

5.8 Socket Configuration menu

The IntelRCSetup menu items allow you to change the socket settings.
