Asus ESC8000 G4 [129/192] Miscellaneous configuration

5-31

ASUS ESC8000 G4 Series

The following items appears only when the

USB Per-Connector Disable

is set to

[Enabled]

USB_1-8 [Enabled]

Conguration options: [Disabled] [Enabled]

USB3_1-5 [Enabled]

Conguration options: [Disabled] [Enabled]

Security Configuration

SMM BIOS Write Protect [Enabled]

Allows you to enable or disable SMM BIOS Write Protect.

Conguration options: [Disabled] [Enabled]

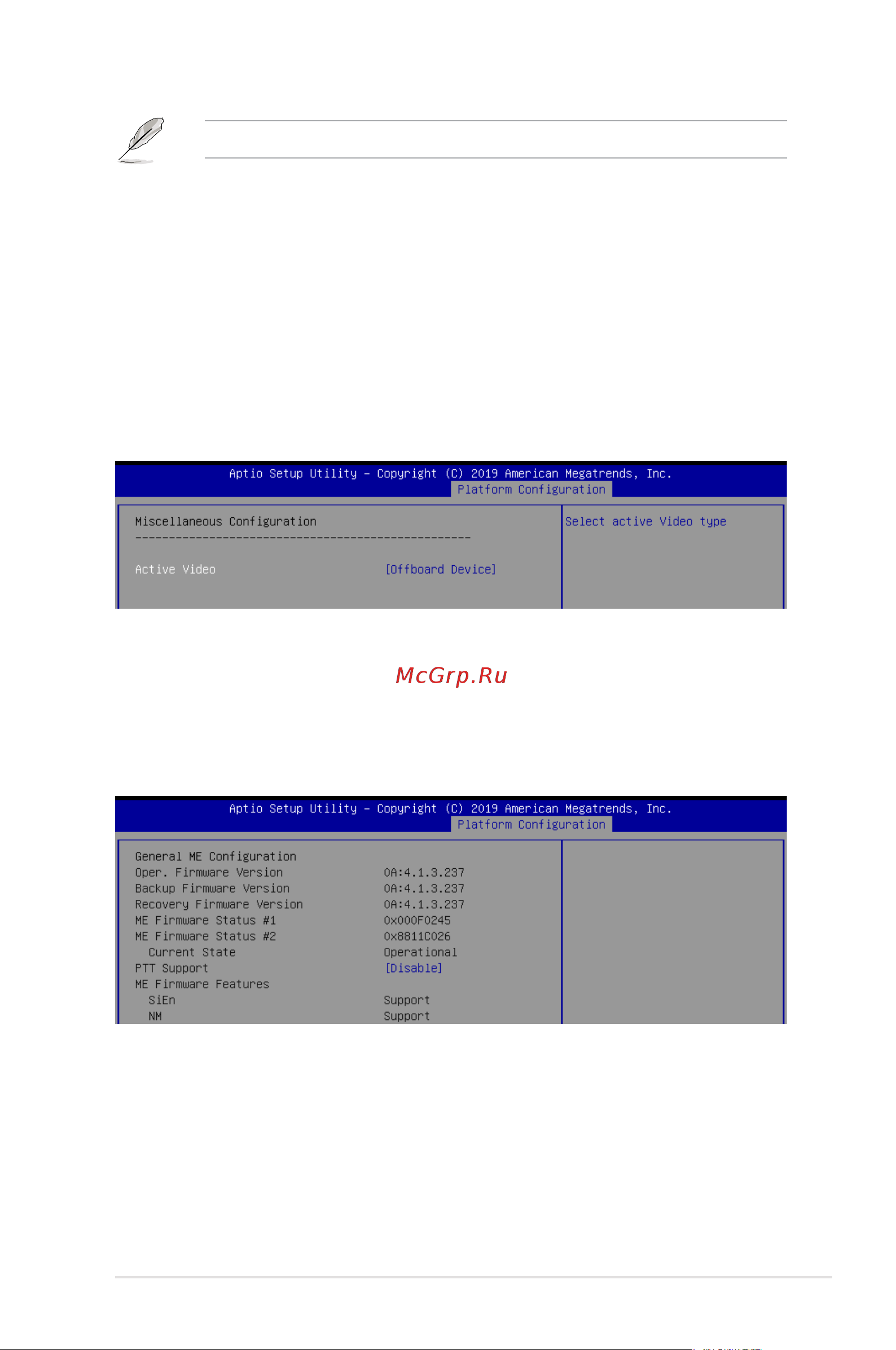

5.7.2 Miscellaneous Configuration

Active Video [Offboard Device]

Allows you to select the video type.

Conguration options: [Auto] [Onboard Device] [Offboard Device]

5.7.3 Server ME Configuration

Displays the Server ME Technology parameters on your system.
