5-36
Chapter 5: BIOS Setup

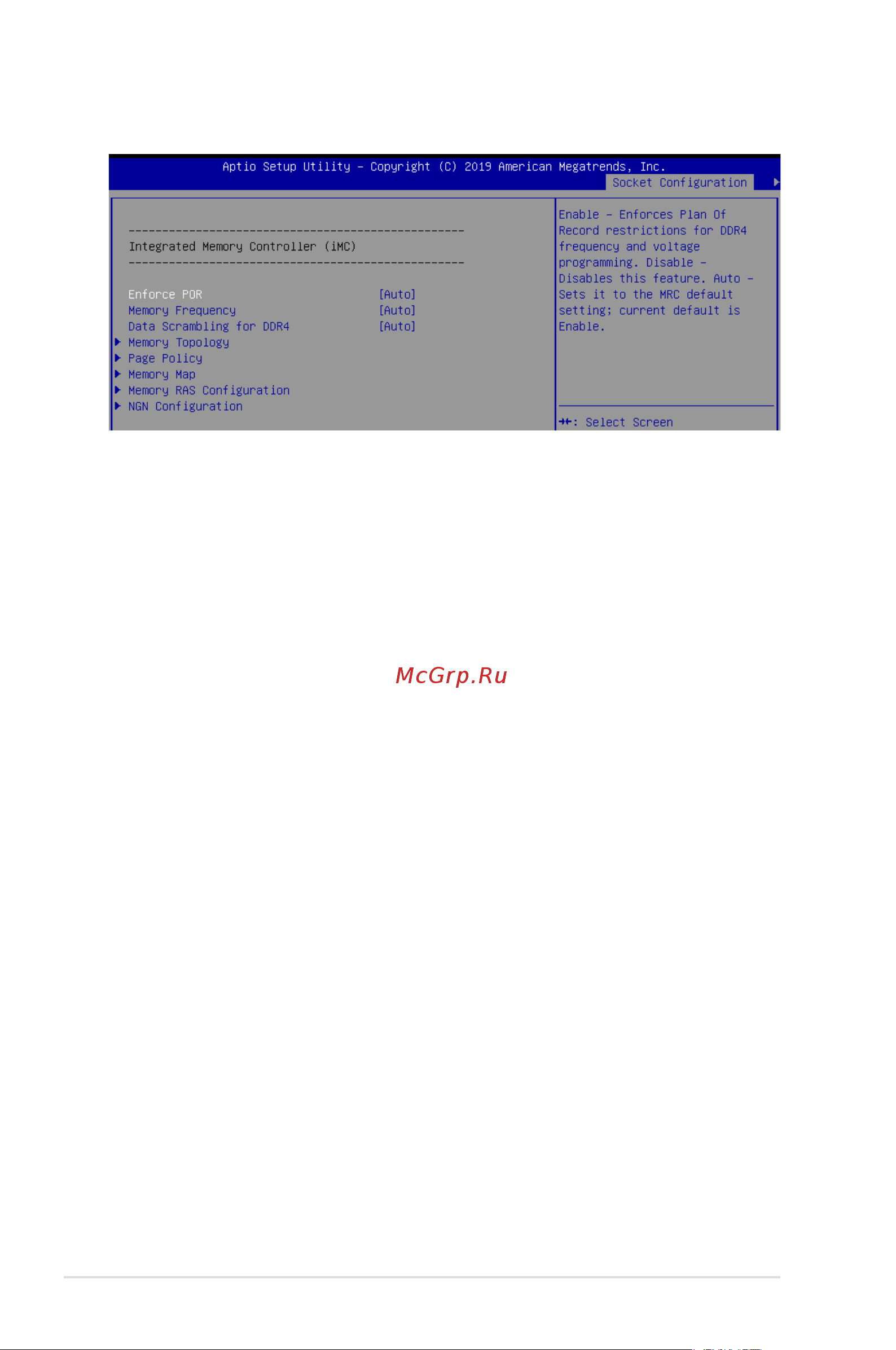

5.8.4 Memory Configuration
Enforce POR [Auto]
Allows you to enforce POR restrictions for DDR4 frequency and voltage programming.
Conguration options: [Auto] [POR] [Disabled]
Memory Frequency [Auto]
Allows you to select the memory frequency setting.
Conguration options: [Auto] [1800] - [3000-OvrClk]
Data Scrambling for DDR4 [Auto]
Allows you to enable or disable data scrambling.
Conguration options: [Auto] [Disabled] [Enabled]
Memory Topology
Displays memory topology with DIMM population information.
Page Policy
Allows you to congure Page Policy settings.
Page Policy [Disabled]
Conguration options: [Auto] [Closed] [Adaptive]
Memory Map
IMC Interleaving [Auto]
Select different IMC interleaving setting.
Conguration options: [Auto] [1-way Interleave] [2-way Interleave]
Channel Interleaving [Auto]
Select different channel interleaving setting.
Conguration options: [Auto] [1-way Interleave] [2-way Interleave]
[3-way Interleave]
