2-21

ASUS ESC8000 G4 Series

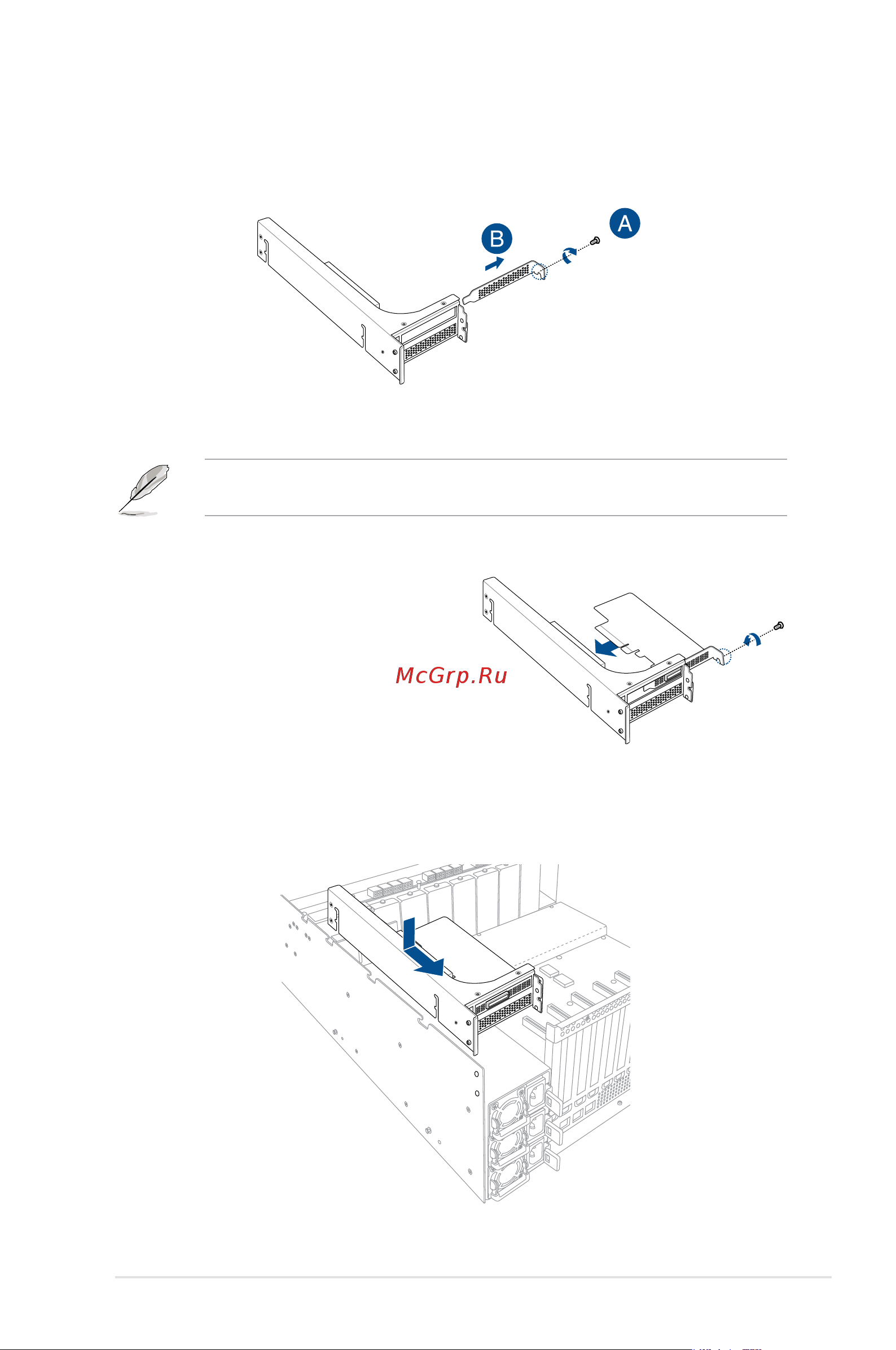

4. Prepare the expansion card.

Before installing an expansion card, read the documentation that came with it and ensure to

make the necessary hardware settings.

3. Remove the screw from the metal bracket on the riser card (A), then remove the metal

bracket from the riser card (B).

5. Align and insert the expansion card into

the PCI-E slot connector on the riser

card, then secure the expansion card

with the screw removed earlier.

6. Align and insert the riser card and expansion card assembly into the chassis, then slide

the riser card and expansion card assembly towards the rear of the chassis to lock it in

place.
