Chapter 2: Hardware Setup

2-24

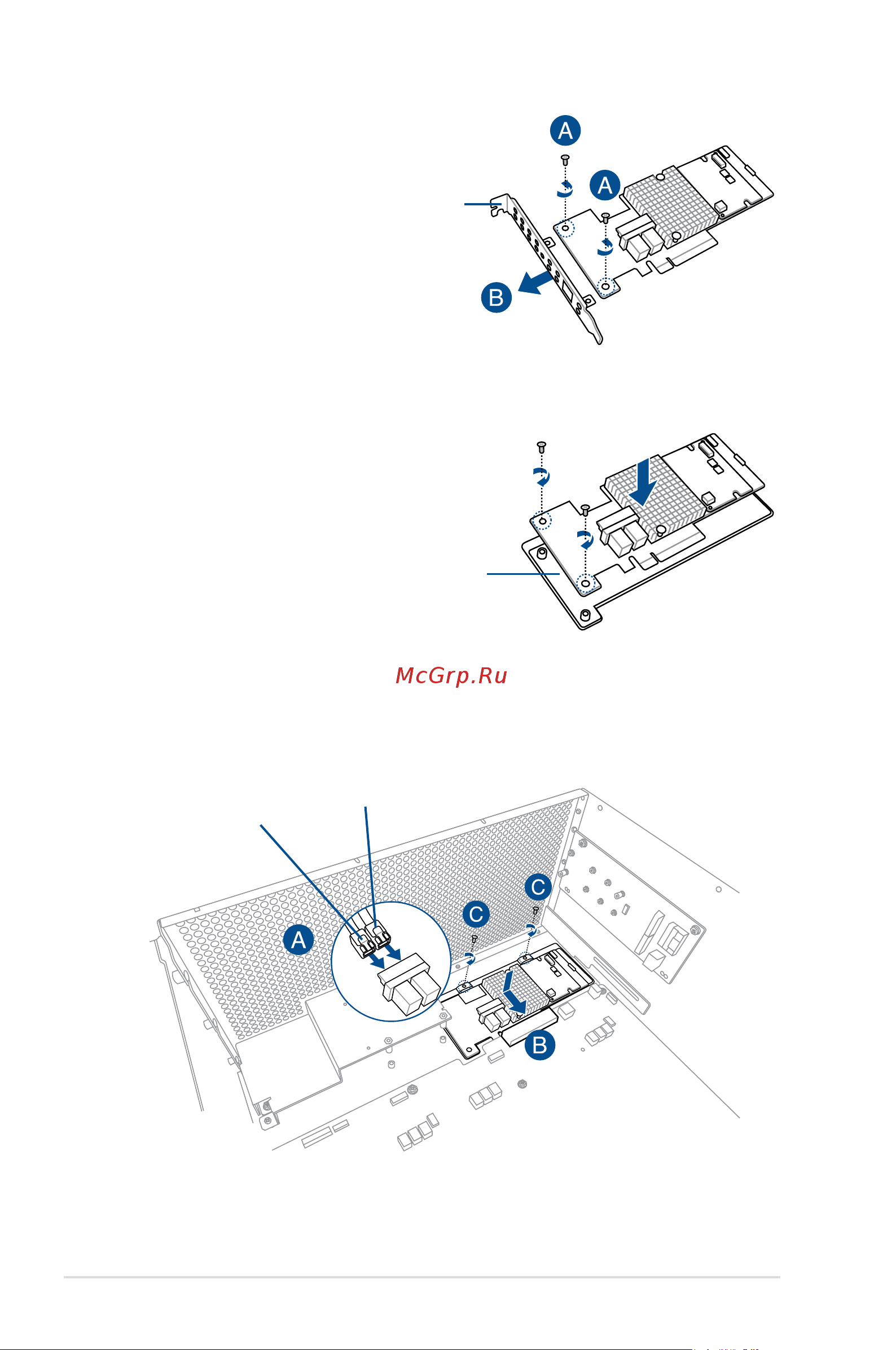

5. Remove the two (2) screws on the

ASUS PIKE II card (A), then remove the

card bracket (B).

Card bracket

6. Secure the ASUS PIKE II card to the

ASUS PIKE II card bracket with the two

(2) screws that you removed earlier.

ASUS PIKE II card bracket

7. Connect the mini-SAS HD cables to the ASUS PIKE II card (A), insert the ASUS PIKE

II card and the ASUS PIKE II card bracket into the PCI-E slot on the motherboard (B),

then secure it with the two (2) screws that you removed earlier (C).

Connect to ASUS

PIKE II card slot 1

Connect to ASUS

PIKE II card slot 2
