2-3

ASUS ESC8000 G4 Series

A protection lm is pre-attached to the system cover before shipping. Please remove the

protection lm before turning on the system for proper heat dissipation.

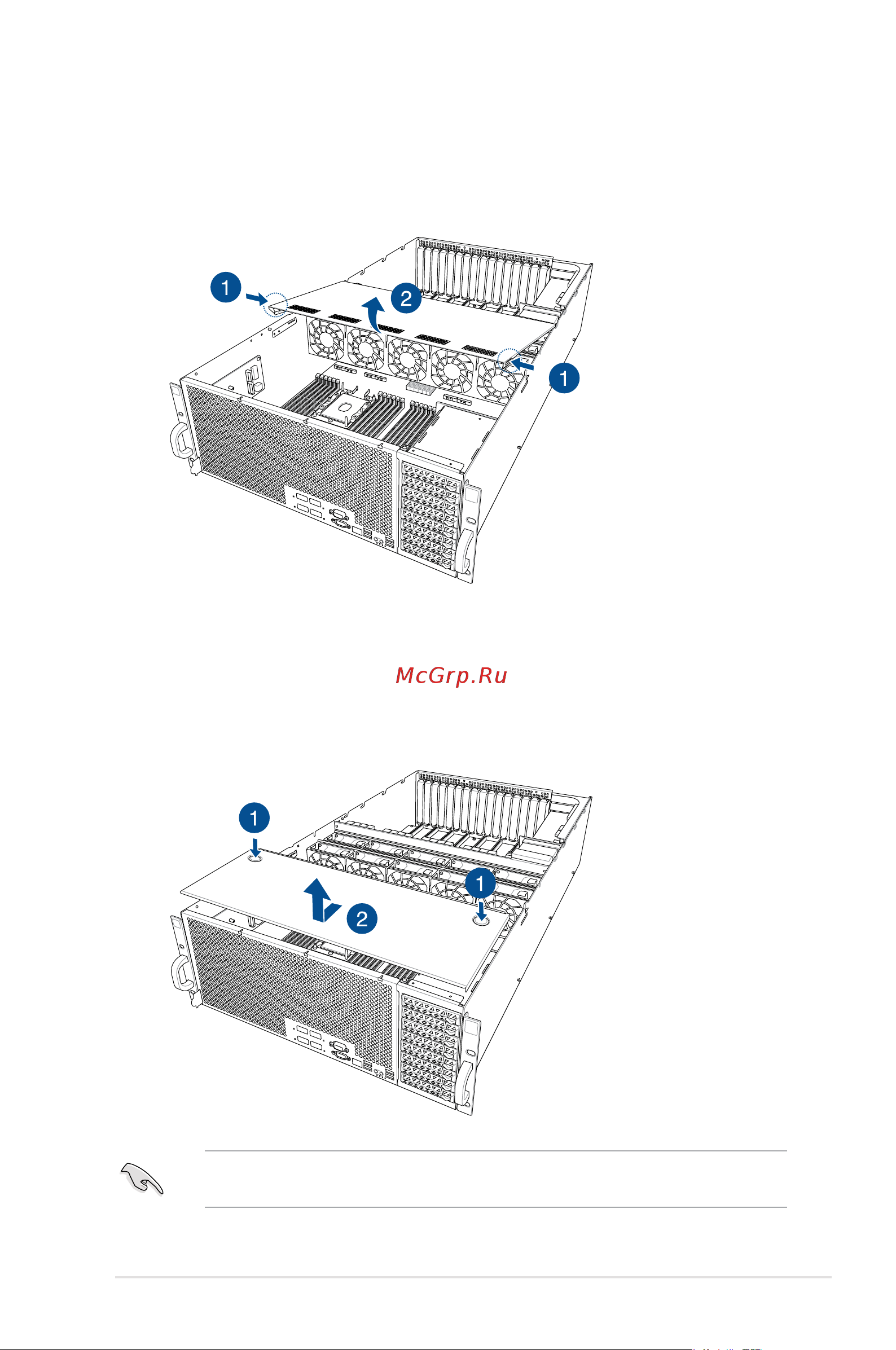

To remove the middle chassis cover:

1. Press the cover latches down on both sides of the middle chassis cover.

2. Lift the chassis cover to completely remove it from the chassis.

To remove the front chassis cover:

1. Push and hold the cover buttons down.

2. Slide the chassis cover towards the front to disengage it from the chassis and lift the

chassis cover to completely remove it from the chassis.
