2-7

ASUS ESC8000 G4 Series

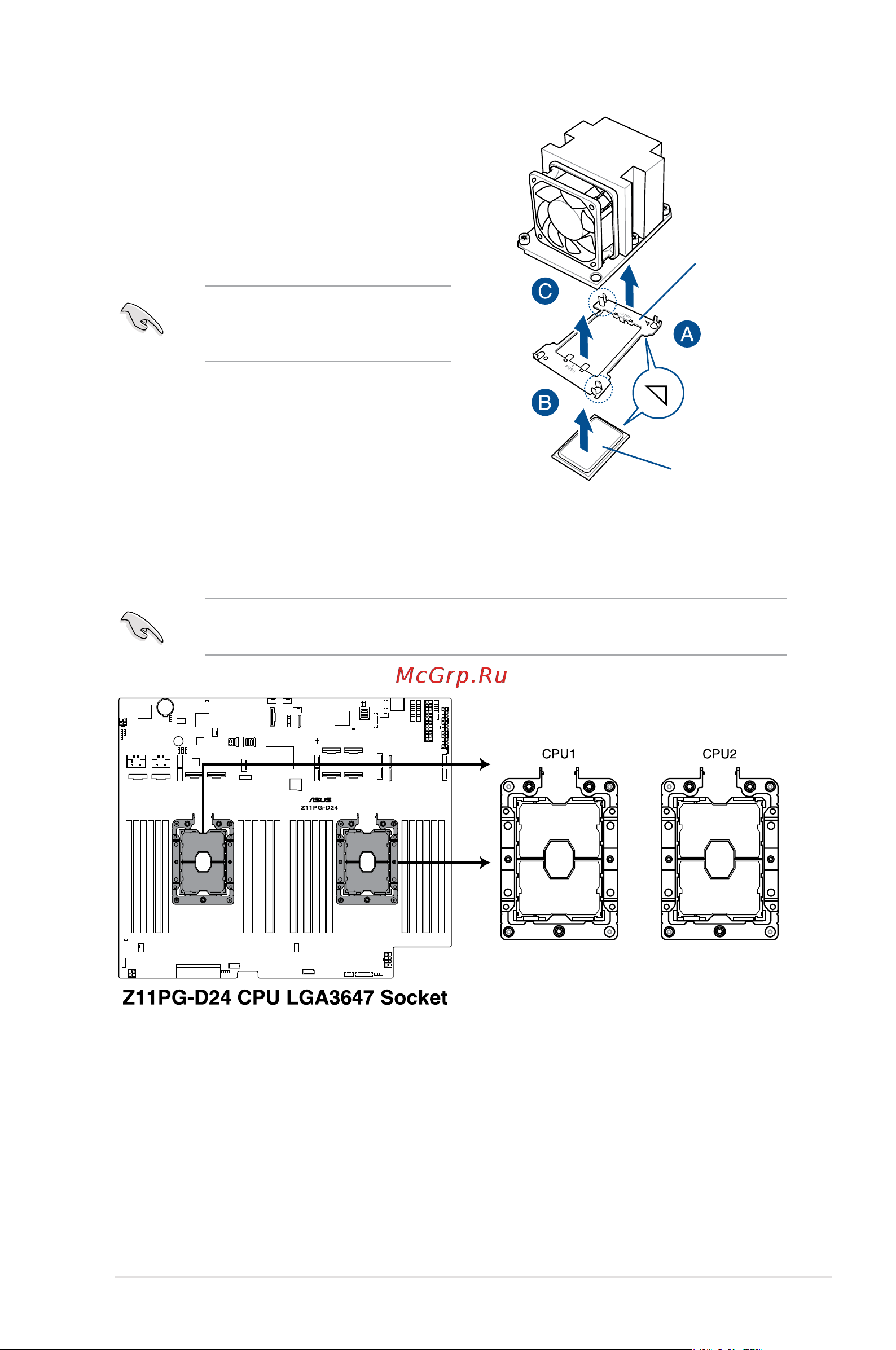

4. Align the triangle mark on the CPU with

the triangle mark on the CPU Carrier

(A), install the CPU into the CPU Carrier

until it clicks rmly into place (B), and

then install the CPU and CPU Carrier

into the cooler until it clicks rmly in

place (C).

Ensure that the triangle mark on the

CPU matches the triangle mark on

the CPU Carrier.

CPU Carrier

CPU

Triangle mark

5. Align the coolers in the correct orientation, then place the coolers on top of the CPU

sockets.

The CPU and CPU Carrier ts in only one correct orientation. DO NOT force the CPU and

CPU Carrier into the socket to prevent damaging the CPU pins on the socket.
