Chapter 3: Installation Options

3-10

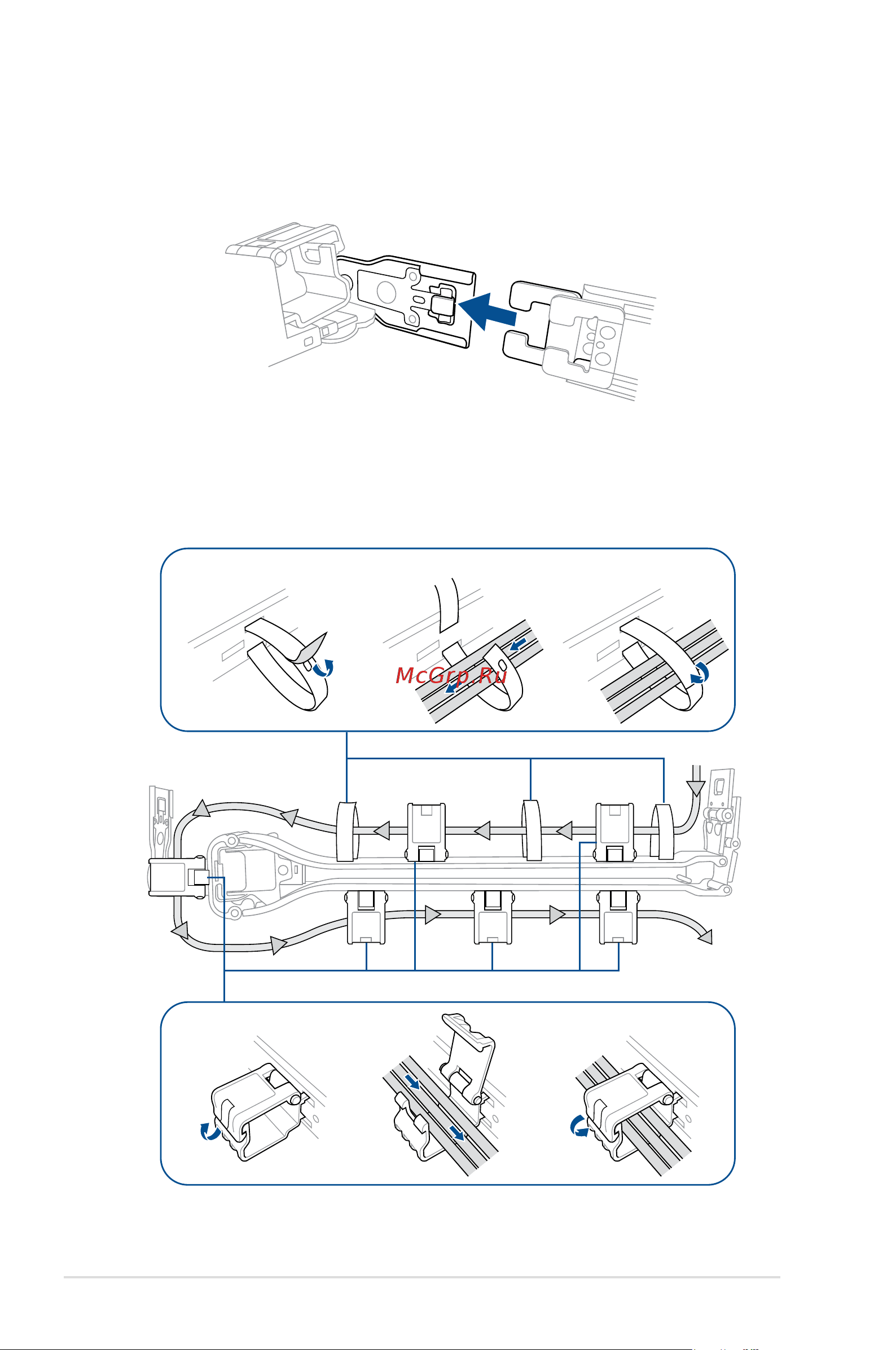

6. Align and connect the pivot receptor on the CMA with the connector on the other

intermediate rail.

7. Pass the cables from the server system through the hook and loop fasteners and the

cable fasteners on the CMA to complete.

Hook and loop fasteners

Cable fasteners
