ASUS ESC8000 G4 Series

4-17

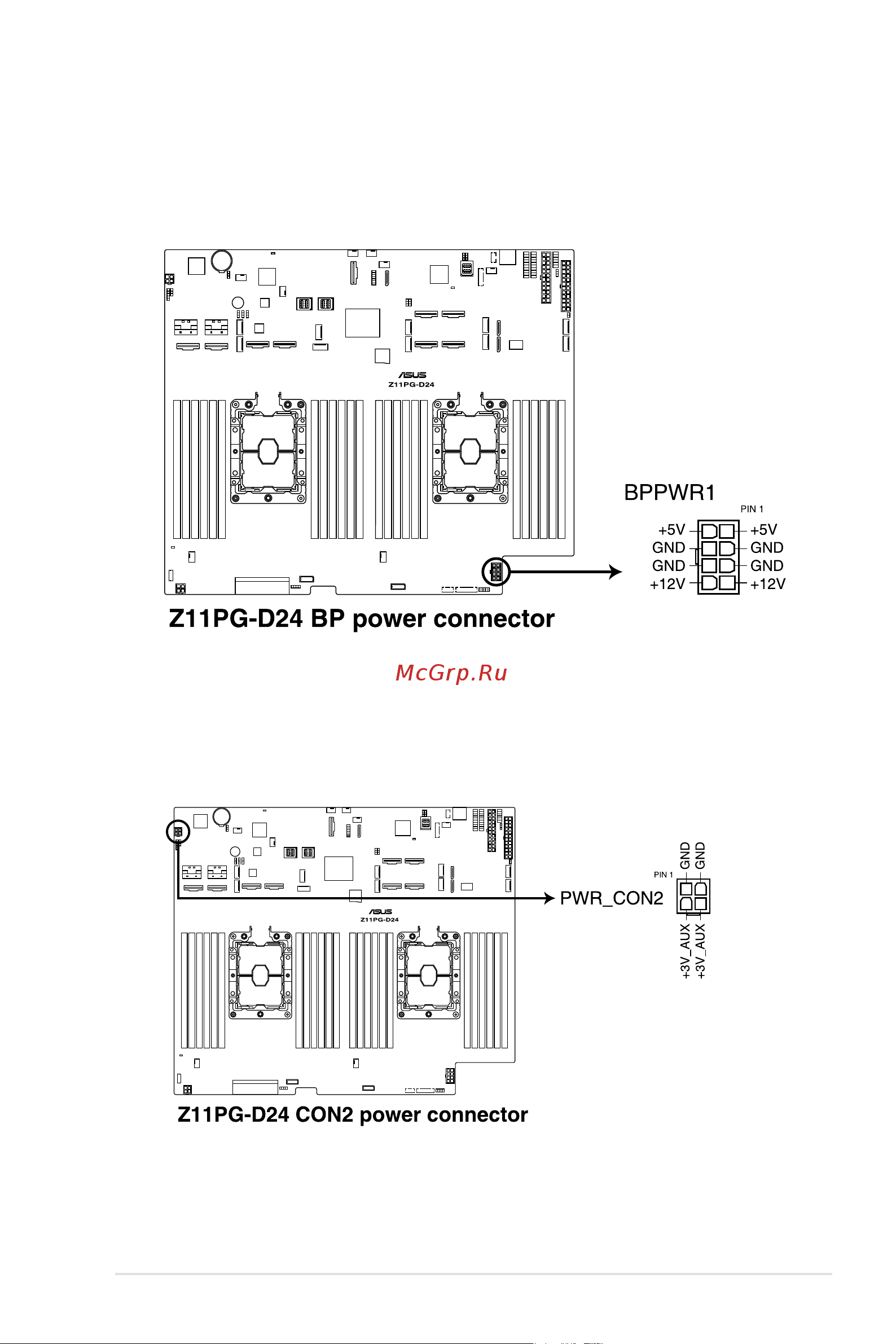

10. PCIE SKU board power connector (4-pin PWR_CON2)

This connector is for the power supply plugs that connects to the PCIE SKU board. The

power supply plugs are designed to t these connectors in only one orientation. Find

the proper orientation and push down rmly until the connectors completely t.

9. Backplane power connectors (8-pin BPPWR1)

These connectors are for the power supply plugs that connects to the backplane. The

power supply plugs are designed to t these connectors in only one orientation. Find

the proper orientation and push down rmly until the connectors completely t.
