4-22

Chapter 4: Motherboard Information

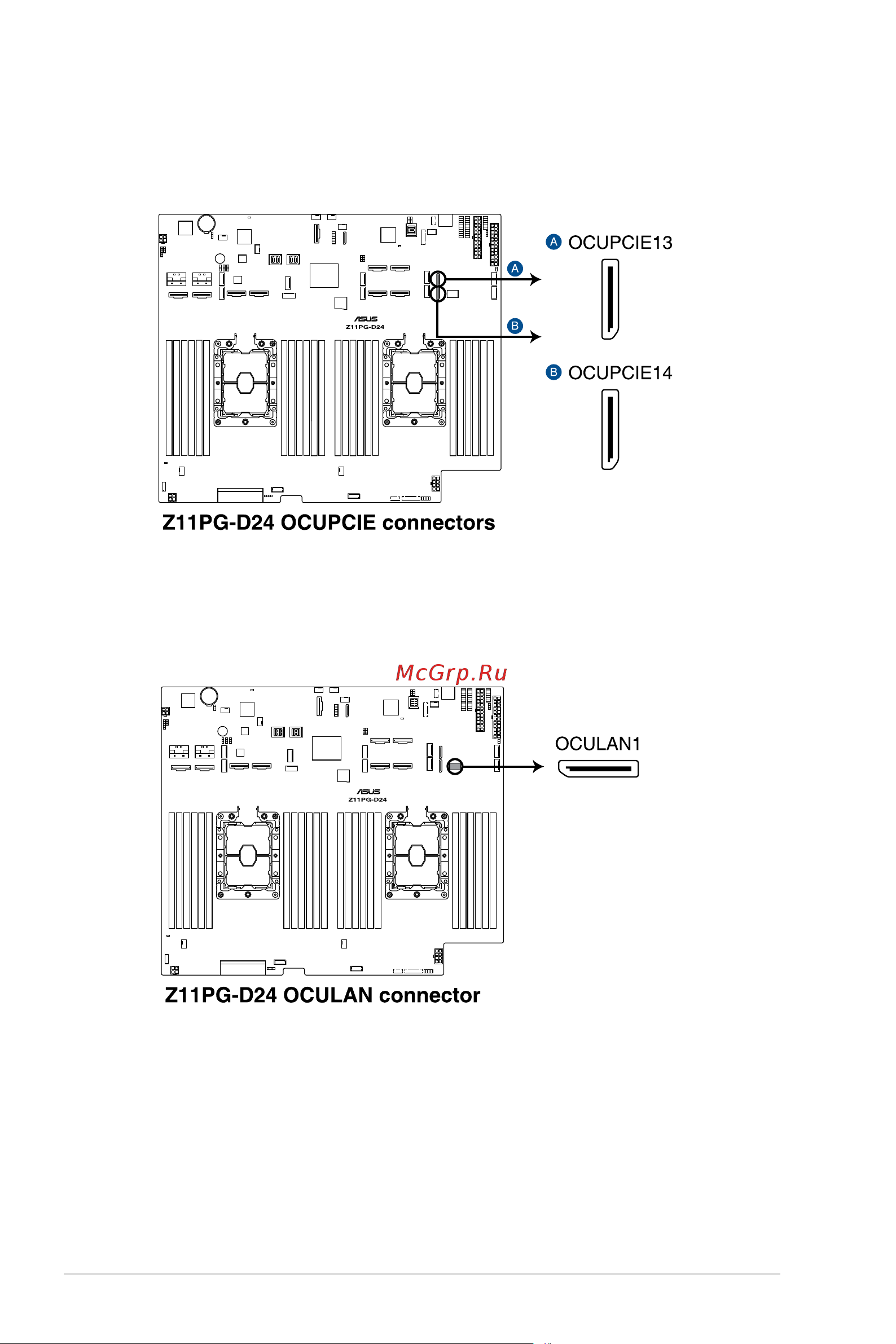

19. OCUPCIE connectors (OCUPCIE13-14)

Connects the PCIE signal to the front riser card or NVME port on the backplane.

20. OCULAN connectors (OCULAN1)

Connects the PCIE signal to the LAN port on the back panel.
