ASUS TS100-E9-PI4
3-5

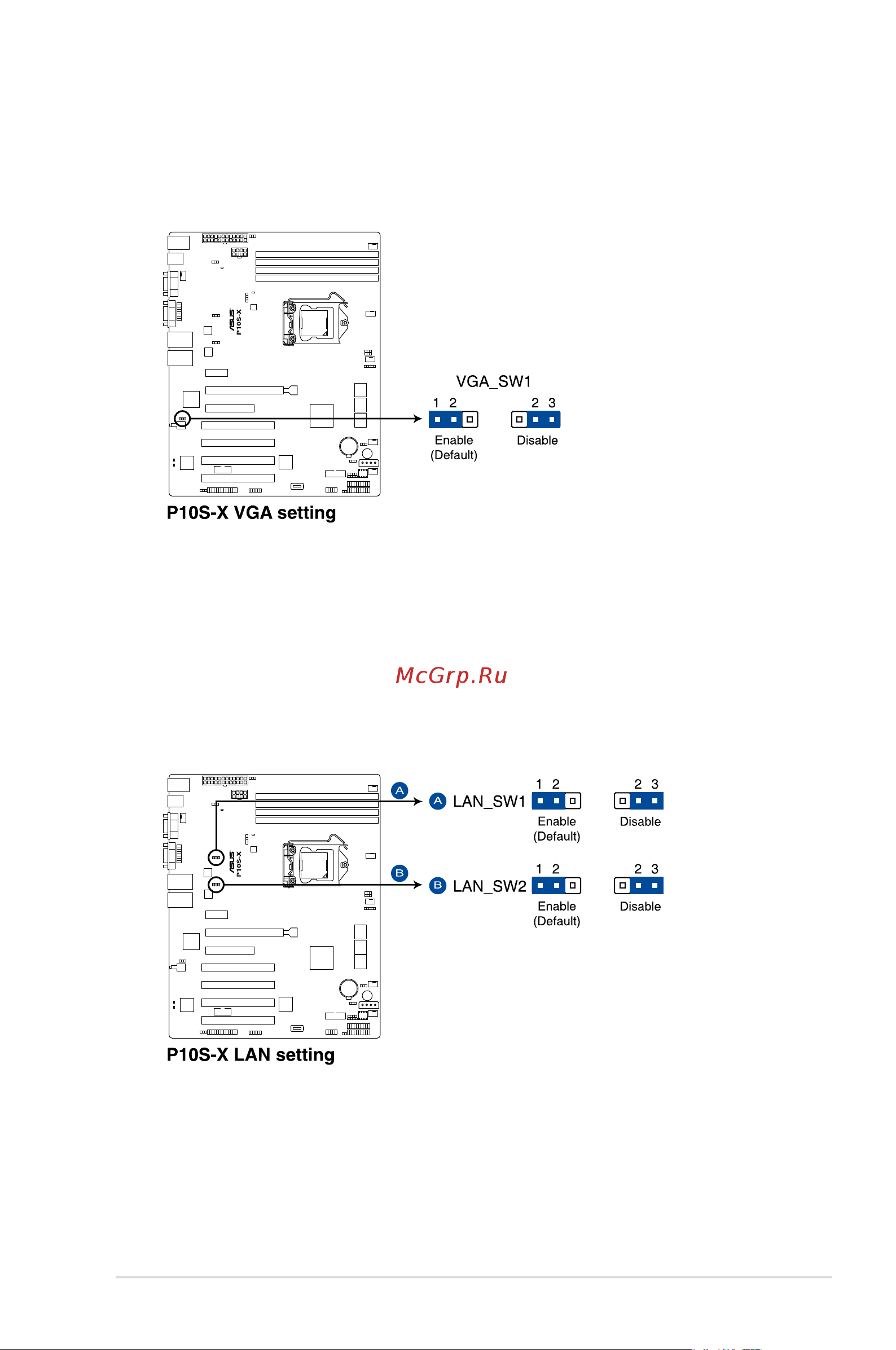

2. VGA controller setting (3-pin VGA_SW1)
ThisjumperallowsyoutoenableordisabletheonboardVGAcontroller.Settopins1–2
toactivatetheVGAfeature.
3. LAN controller setting (3-pin LAN_SW1, LAN_SW2)
ThesejumpersallowsyoutoenableordisabletheonboardIntel
®
I210 Gigabit LAN
controllers.Settopins1-2toactivatetheGigabitLANfeature.
