Chapter 3: Motherboard Information
3-6

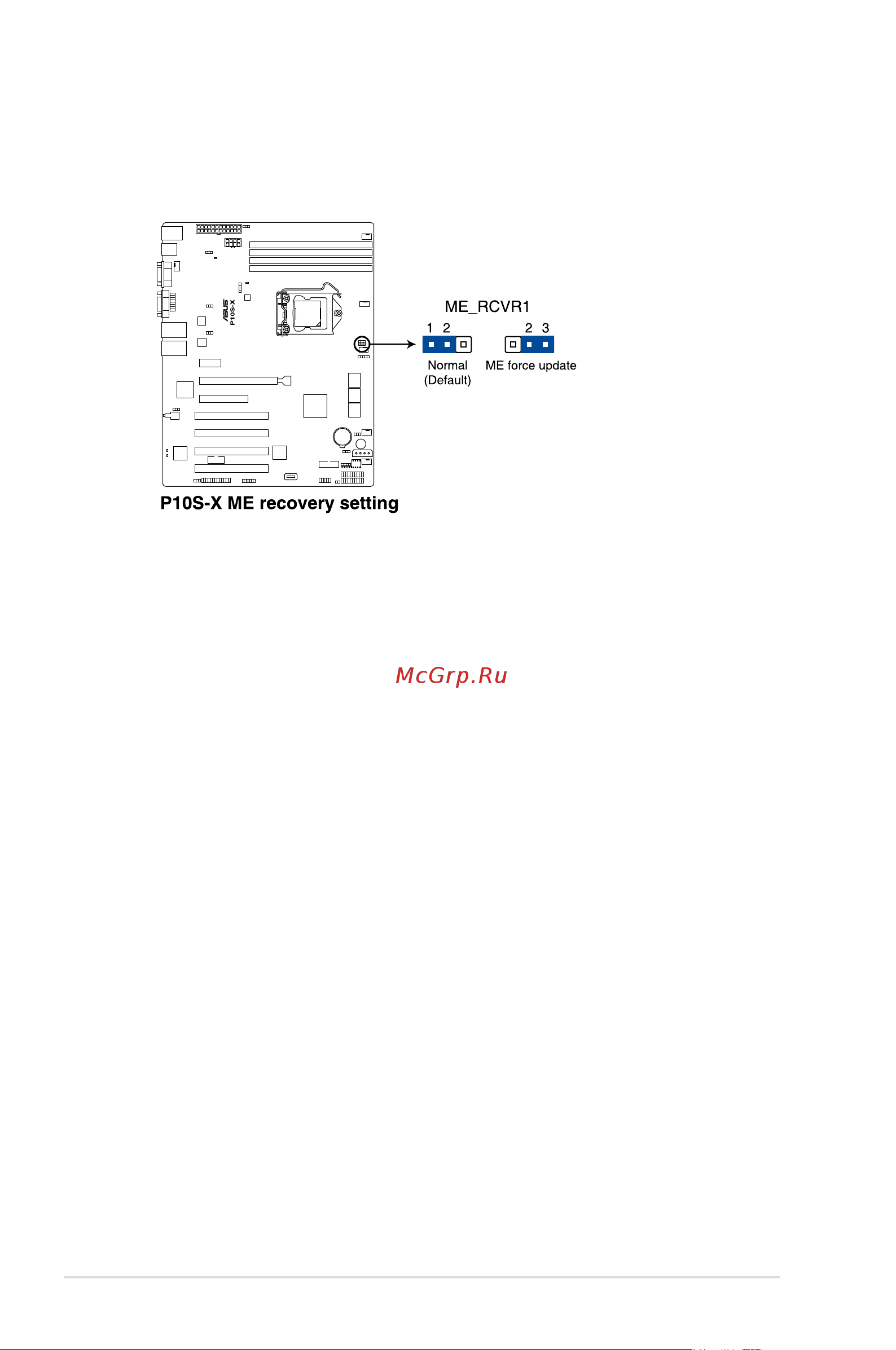

4. ME firmware force recovery setting (3-pin ME_RCVR1)
ThisjumperallowsyoutoforceIntelManagementEngine(ME)bootfromrecovery
modewhenMEbecomecorrupted.
