7 | Installation
Installer reference guide
58
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10
6
6
7
8

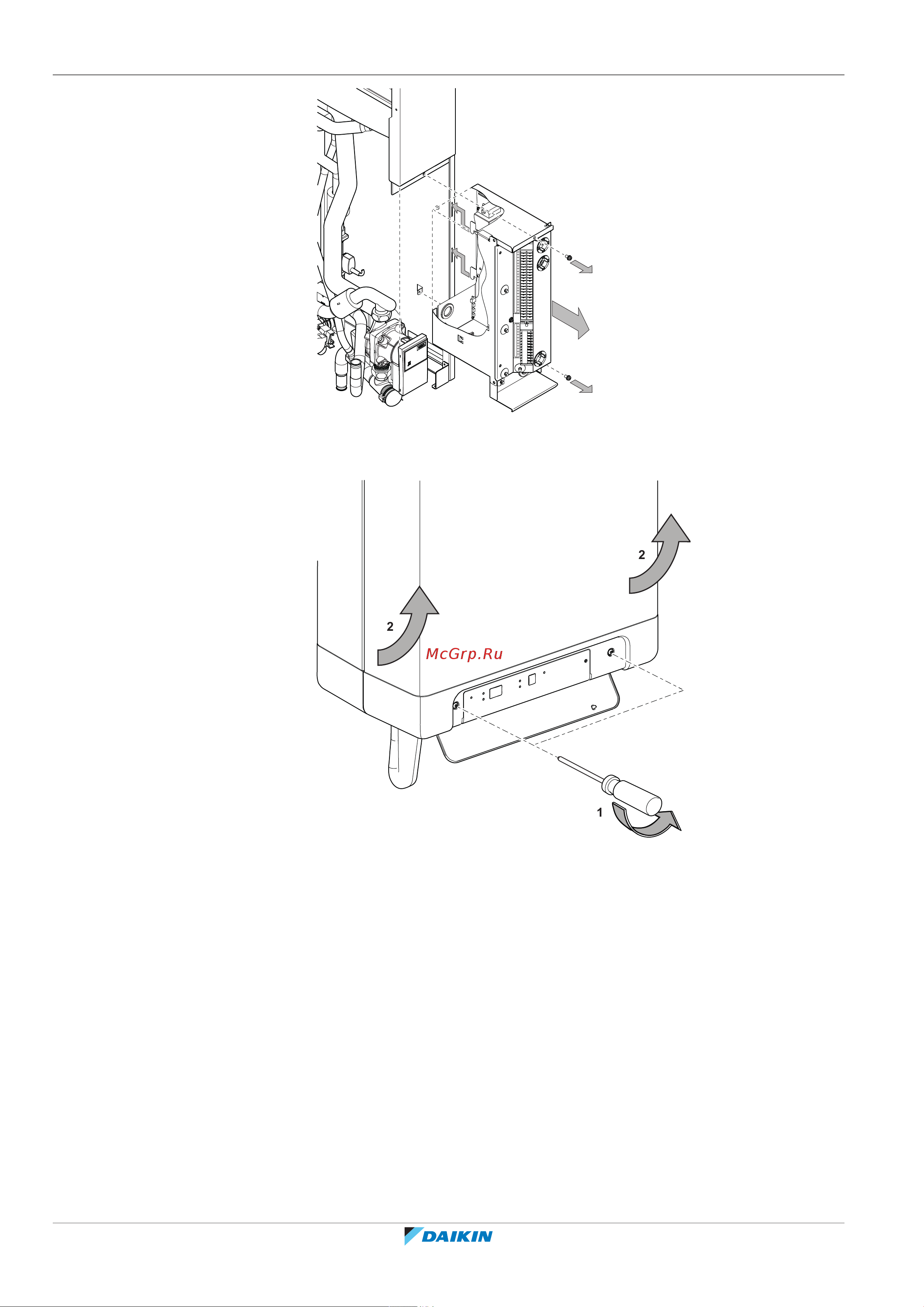

7.2.4 To open the gas boiler
1
2
2
1 Open the display cover.
2 Unscrew both screws.
3 Tilt the front panel towards you and remove the front panel.
7.2.5 To open the switch box cover of the gas boiler
1 Open the gas boiler, see "7.2.4To open the gas boiler"[458].
2 Pull the boiler controller unit forwards. The boiler controller will tip
downwards to provide access.
