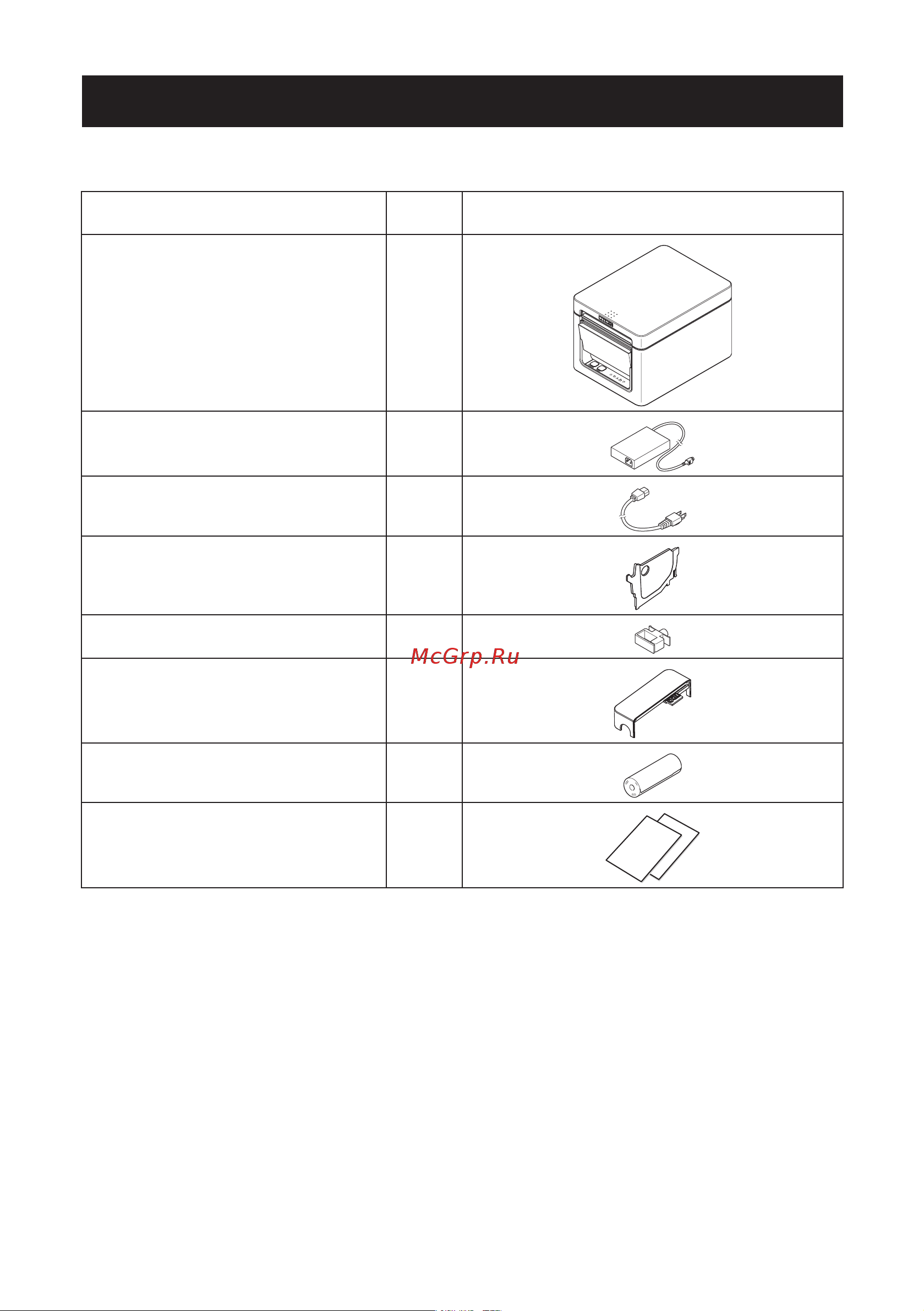

Citizen CT-E651L [15/72] Included with the rs and nn models

——

1.2 Unpacking

Make sure the following items are included with your printer.

NAME

QUAN-

TITY

ILLUSTRATION

Printer 1

AC Adapter (37AD5) 1

AC power cord 1

Partition 1

Cable clamp * 1

Cable cover 1

Sample paper roll 1 roll

Quick Start Guide 2

*: Included with the RS and NN models

Содержание

Ge fr sp 2
Ge fr sp it 2
Ge fr sp it du 2
Ge fr sp it du da 2
Ge fr sp it du da por 2
Ge fr sp it du da por pol 2
Weee mark 2
Compliance statement for european users 3
General precautions 4
Caution 6
Safety precaution 6
Safety precautions which should be strictly observed 6
Warning 6
Which should be strictly observed 6
Precautions on printer installation 7
Warning 7
Caution 8
Precautions in handling the printer 9
Warning 9
Caution 10
These labels indicate that the head becomes hot so touching it may cause burns and touching the auto cutter when opening the paper cover may cause cuts on hands 10
Caution 11
Daily maintenance 11
Explanation of printer parts 9 12
General outline 4 12
Maintenance and troubleshooting 5 12
Setup 5 12
The table of contents 12
External views and dimensions 2 5 printing paper 3 5 manual setting of memory switches 7 13
Other 2 13
Features 14
General outline 14
Included with the rs and nn models 15
Make sure the following items are included with your printer 15
Unpacking 15
Ct e651 rs e bk l 16
Model classification 16
Basic specifications 17
Notes 1 the number of printable columns is selected using a memory switch the numbers of columns noted in this table refer to typical models the number of columns varies depending on specifications 2 characters appear small because the dimensions include a blank area surrounding each character 3 this standard applies when our ac adapter 37ad5 is used 18
Explanation of printer parts 19
Printer appearance 19
Cash drawer kick out connector connect to the cable from the cash drawer 20
Interface connector serial usb etc connect to the interface cable 20
Operation panel 20
Power connector connect to the ac adapter cable 20
Rear connectors serial interface example 20
Refer to 4 error indications 20
Rs serial rs 232c usb 20
The operation panel has five leds and two buttons 20
Usb connector 20
Inside the paper cover 21
Caution 23
Other built in functions 23
Caution 24
Caution 25
Connecting the ac power cord 25
Caution 26
Connecting cables 26
Caution 27
Use a serial cable with the connection layout shown below 27
Bluetooth interface board 28
Bluetooth status led 28
Caution 28
Configure pairing settings 28
Detect bluetooth devices 28
Names of parts 28
Pairing operation 28
Status led leds indicate communication connection error status for this interface board 28
Usb connector receive data from the host computer via usb communication 28
When using this interface board as a usb interface do not connect usb cables to both the main unit side and interface board side if usb cables are connected to both priority will be given to communication of the one con nected to the connector on the main unit side 28
You need to perform the operations below the first time you establish a bluetooth con nection for bluetooth data communication 28
Caution 29
Auto reconnect invalid at the end of self test new setting will be printed as auto reconnect valid or invalid 30
Caution 30
Enabling and disabling auto reconnect 30
Refer to 4 self test 30
Bluetooth usb host interface board 31
Caution 31
Caution 32
Caution 35
Ethernet lan wireless lan interface board 35
2 3 1 2 3 1 2 3 36
Led functions 36
The tables below explain how to interpret led indications 36
Wired lan connection transmission status 36
Wired lan transmission speed 36
Wired wireless lan status 36
2 3 4 5 39
Caution 39
In addition to printer control via usb lightning communication lightning usb host interfaces can control peripheral devices connected via a usb port 39
Lightning usb host interface board 39
Names of parts 39
Communication status with the printer 41
Connection status with an apple device 41
Led functions 41
The tables below explain how to interpret led indications 41
1 connector pin configuration 42
Caution 42
Confirm the orientation of the cash drawer kick out cable connector and connect it to the cash drawer kick out connector at the back of the printer 42
Connect only the cash drawer kick out cable to this connector do not connect a telephone line signals cannot be output from the cash drawer kick out connector while printing hold the connector of the drawer kick cable perpendicular and straight when connecting or disconnecting it doing it at an angle may cause the connector to misconnect 42
Connecting the cash drawer 42
Remove the screw for the ground wire 42
Screw the cash drawer s ground wire to the body of the printer 42
Turn off the power 42
2 electric characteristics 43
3 drsw signal status can be tested by commands 43
4 drive circuit 43
Caution 43
Drive current approx 1 a max not to exceed 510 ms 43
Drive voltage 24 vdc 43
Drsw signal signal levels l 0 to 0 v h 3 to 5 v 43
Caution 44
Precautions for installing the printer 44
This printer can only be positioned horizontally it cannot be positioned vertically or on a wall 44
Adjusting the paper near end sensor 45
Caution 45
Change the settings of the paper near end sensor to set the position at which the near end of the paper is detected 45
Gently press the paper near end sensor with your finger 45
Keep the paper near end sensor pressed as you move it left and right the sensor posi tions are shown below for the various diameters of the paper roll used 45
Paper near end sensor 45
The diameter of the roll of paper that is detected is an estimate some variations may occur depending on the paper 45
Unit mm 45
Caution 46
Loading paper 46
Caution 47
Refer to precautions in handling the printer 47
Enter selecting paper type mode 1 with the top cover open turn on the printer power switch while pressing and holding the feed key the buzzer sounds and the status led flashes in green 2 after releasing your finger from the feed button briefly press the feed button consecutively four times next when the paper is set in place and the top cover closed the buzzer sounds four short times and paper selection mode starts 48
Paper type selection is available by the combination of memory switches msw4 4 and msw4 5 by the used of memory switch select mode in addtion the following procedure is available 48
Save the selected paper type to the printer open the top cover and then close it as it is the paper type selected is stored in the printer memory switch as shown in the table below the paper type setting mode finishes and the printer restarts automatically 48
Select paper type press the feed key to match the paper used with the paper type displayed by the status display led refer to the table below 48
Selecting a paper type 48
Calibrate the paper sensor to suit the actual paper you are using before using label paper or black mark paper before executing this mode use the paper selection mode or the msw4 4 and msw4 5 settings to set the paper type you want to use 49
Calibrating the paper sensor 49
Refer to 3 1 selecting a paper type 49
Refer to 5 manual setting of memory switches 49
Caution 50
Caution 51
Mm width roll paper partition 51
Refer to 5 manual setting of memory switches 51
Refer to precautions in handling the printer 51
Caution 52
It can extend the abrasion life of the head resistant by reducing the pressure to press the print head against the paper the long life printing llp function can be enabled by changing the position of the projection switch inside the paper cover 52
Refer to precautions in handling the printer 52
Setting the long life printing llp function 52
Mounting the cable cover 53
Download site for various electronic files 54
Precautions for creating applications and practical operations 54
Caution 55
Maintenance and troubleshooting 55
Periodic cleaning 55
Caution 56
Clearing a cutter error 56
If the auto cutter stops during the auto cutter operation with the blade of the auto cutter in the open position due to foreign matter entering paper jamming etc the cutter led flashes when a cutter error occurs resolve the cutter error with the following procedure 56
Refer to precautions in handling the printer 56
Buffer size 57
Firmware version 57
Interface settings 57
Memory switch settings 57
Performing a self test operation 57
Printer type name 57
Self test 57
You can use self test to check for printer problems 57
Caution 58
Do one of the following to stop printing 58
Hexadecimal dump printing 58
How to do hexadecimal dump printing 58
How to stop hexadecimal dump printing 58
Press the feed button consecutively three times 58
Print example hex dump print mode 58
Print received data in hexadecimal if problems such as missing or duplicated data occur this function allows you to check whether or not the printer is receiving data cor rectly 58
Receive a reset command from an interface 58
Turn off the power 58
Error indications 59
The status display for various messages is shown below 60
Caution 61
Paper jams 61
Precautions for performing printing for which printing speed changes 61
Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing if paper cannot get out of the printer it can roll up on the platen inside the printer and cause an error if the paper wraps around the platen open the paper cover and carefully pull the paper out 61
When printing for which the printing speed changes is performed white lines may be printed or paper may not be fed depending on the printing conditions to prevent these problems change the following memory switch settings 61
External views and dimensions 62
Caution 63
Printing paper 63
This product is not equipped with a manual cutter thus it cannot manually cut paper with perforated lines well cutting paper with perforated lines with the auto cutter may cause paper scraps to accumulate internal part of the printer causing it to break down 63
Use the paper shown in the following table or paper of the same quality 63
Caution 64
Thermal roll paper 64
Unit mm 64
Use thermal paper that is wound as follows not creased and fits tight to the core not folded not glued to the core rolled with the printable side out 64
Caution 65
Label media 65
Unit mm 65
When using the auto cutter this may damage the cutter lock or the cutter so be careful of the following keep the paper cut length to 29 mm or more set the cut position to cut between the labels the backing paper section do not cut the label paper the tack paper if you have changed the label backing paper type be sure to adjust the paper sensors again keep both the left and right margins of the paper to at least 2 mm keep the top and bottom margins of the paper to at least 1 mm 65
Black mark paper 66
Caution 66
Unit mm 66
Use a black mark pcs value of 0 0 or more take the basic printing position 2 mm into account for print cue accuracy using black mark detection for printing length take variations in the ambient temperature and platen diameter machining accuracy in the initial state into account and allow for 2 with regard to setting values additionally when considering the product life allow for a maximum of 5 with regard to setting values when using preprinted paper give due consideration to the print layout if printing spans multiple black marks the black marks are ignored and printing continues 66
Individual setting mode 67
Manual setting of memory switches 67
Memory switches are used to set various printer settings memory switches can be set manually or by utilities or commands this section explains how to perform manual settings for information on how to set the memory switches using commands please refer to the command reference 67
Set the memory switches individually do the settings while confirming the memory switch function and settings on the print out 67
Memory switch initialization 68
Set all the memory switches to the factory settings 68
The function of each memory switch is shown in the following table shaded values are factory settings 69
1 label specifications black mark specifications 2 for label specifications black mark specifications msw4 8 settings are not applied limited to full cut 71
