![Citizen CT-E651L [62/72] External views and dimensions](/img/pdf.png)

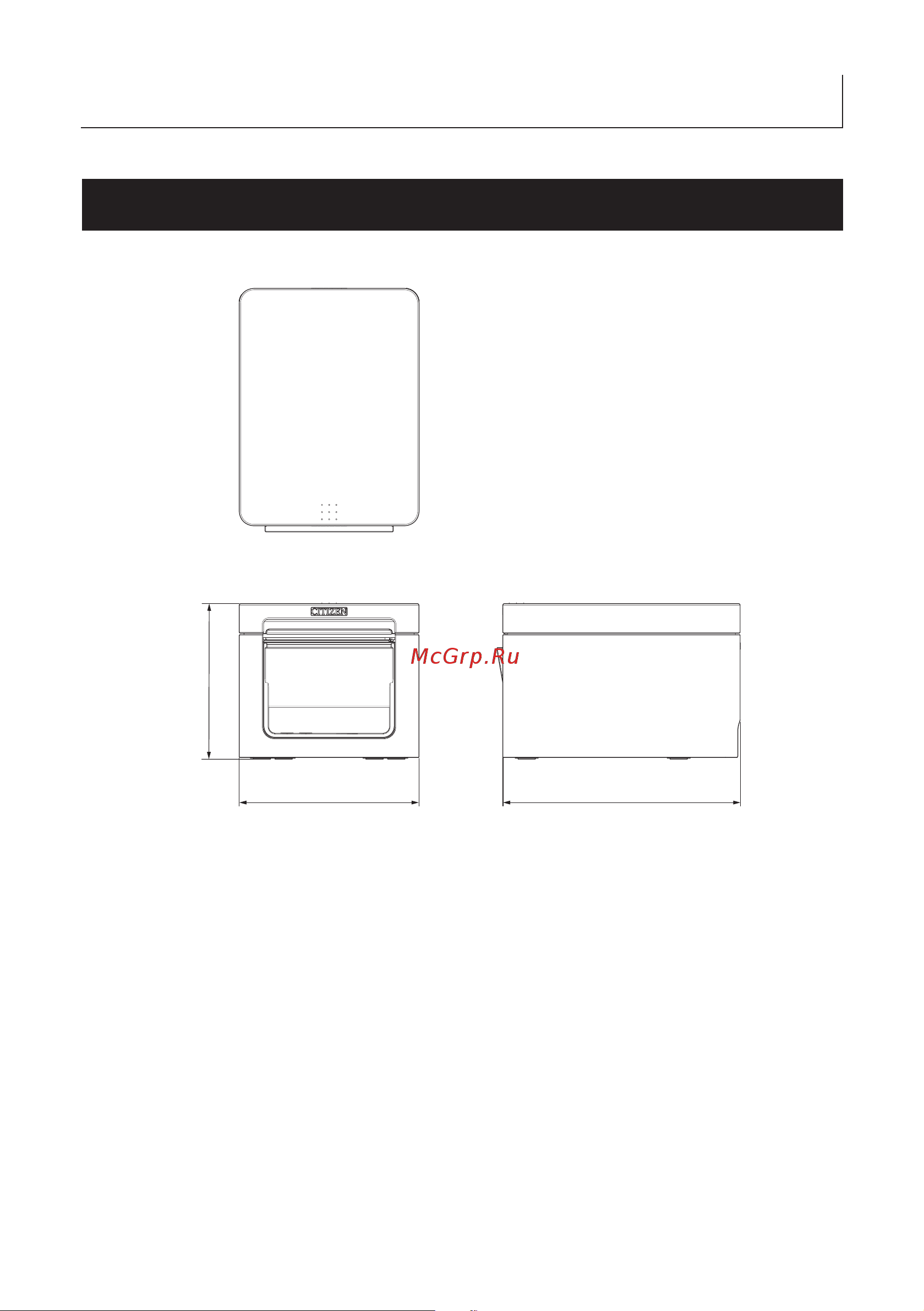

Citizen CT-E651L [62/72] External views and dimensions
![Citizen CT-E651L [62/72] External views and dimensions](/views2/1843441/page62/bg3e.png)
Содержание
- Ge fr sp 2
- Ge fr sp it 2
- Ge fr sp it du 2
- Ge fr sp it du da 2
- Ge fr sp it du da por 2
- Ge fr sp it du da por pol 2
- Weee mark 2
- Compliance statement for european users 3
- General precautions 4
- Caution 6
- Safety precaution 6
- Safety precautions which should be strictly observed 6
- Warning 6
- Which should be strictly observed 6
- Precautions on printer installation 7
- Warning 7
- Caution 8
- Precautions in handling the printer 9
- Warning 9
- Caution 10
- These labels indicate that the head becomes hot so touching it may cause burns and touching the auto cutter when opening the paper cover may cause cuts on hands 10
- Caution 11
- Daily maintenance 11
- Explanation of printer parts 9 12
- General outline 4 12
- Maintenance and troubleshooting 5 12
- Setup 5 12
- The table of contents 12
- External views and dimensions 2 5 printing paper 3 5 manual setting of memory switches 7 13
- Other 2 13
- Features 14
- General outline 14
- Included with the rs and nn models 15
- Make sure the following items are included with your printer 15
- Unpacking 15
- Ct e651 rs e bk l 16
- Model classification 16
- Basic specifications 17
- Notes 1 the number of printable columns is selected using a memory switch the numbers of columns noted in this table refer to typical models the number of columns varies depending on specifications 2 characters appear small because the dimensions include a blank area surrounding each character 3 this standard applies when our ac adapter 37ad5 is used 18
- Explanation of printer parts 19
- Printer appearance 19
- Cash drawer kick out connector connect to the cable from the cash drawer 20
- Interface connector serial usb etc connect to the interface cable 20
- Operation panel 20
- Power connector connect to the ac adapter cable 20
- Rear connectors serial interface example 20
- Refer to 4 error indications 20
- Rs serial rs 232c usb 20
- The operation panel has five leds and two buttons 20
- Usb connector 20
- Inside the paper cover 21
- Caution 23
- Other built in functions 23
- Caution 24
- Caution 25
- Connecting the ac power cord 25
- Caution 26
- Connecting cables 26
- Caution 27
- Use a serial cable with the connection layout shown below 27
- Bluetooth interface board 28
- Bluetooth status led 28
- Caution 28
- Configure pairing settings 28
- Detect bluetooth devices 28
- Names of parts 28
- Pairing operation 28
- Status led leds indicate communication connection error status for this interface board 28
- Usb connector receive data from the host computer via usb communication 28
- When using this interface board as a usb interface do not connect usb cables to both the main unit side and interface board side if usb cables are connected to both priority will be given to communication of the one con nected to the connector on the main unit side 28
- You need to perform the operations below the first time you establish a bluetooth con nection for bluetooth data communication 28
- Caution 29
- Auto reconnect invalid at the end of self test new setting will be printed as auto reconnect valid or invalid 30
- Caution 30
- Enabling and disabling auto reconnect 30
- Refer to 4 self test 30
- Bluetooth usb host interface board 31
- Caution 31
- Caution 32
- Caution 35
- Ethernet lan wireless lan interface board 35
- 2 3 1 2 3 1 2 3 36
- Led functions 36
- The tables below explain how to interpret led indications 36
- Wired lan connection transmission status 36
- Wired lan transmission speed 36
- Wired wireless lan status 36
- 2 3 4 5 39
- Caution 39
- In addition to printer control via usb lightning communication lightning usb host interfaces can control peripheral devices connected via a usb port 39
- Lightning usb host interface board 39
- Names of parts 39
- Communication status with the printer 41
- Connection status with an apple device 41
- Led functions 41
- The tables below explain how to interpret led indications 41
- 1 connector pin configuration 42
- Caution 42
- Confirm the orientation of the cash drawer kick out cable connector and connect it to the cash drawer kick out connector at the back of the printer 42
- Connect only the cash drawer kick out cable to this connector do not connect a telephone line signals cannot be output from the cash drawer kick out connector while printing hold the connector of the drawer kick cable perpendicular and straight when connecting or disconnecting it doing it at an angle may cause the connector to misconnect 42
- Connecting the cash drawer 42
- Remove the screw for the ground wire 42
- Screw the cash drawer s ground wire to the body of the printer 42
- Turn off the power 42
- 2 electric characteristics 43
- 3 drsw signal status can be tested by commands 43
- 4 drive circuit 43
- Caution 43
- Drive current approx 1 a max not to exceed 510 ms 43
- Drive voltage 24 vdc 43
- Drsw signal signal levels l 0 to 0 v h 3 to 5 v 43
- Caution 44
- Precautions for installing the printer 44
- This printer can only be positioned horizontally it cannot be positioned vertically or on a wall 44
- Adjusting the paper near end sensor 45
- Caution 45
- Change the settings of the paper near end sensor to set the position at which the near end of the paper is detected 45
- Gently press the paper near end sensor with your finger 45
- Keep the paper near end sensor pressed as you move it left and right the sensor posi tions are shown below for the various diameters of the paper roll used 45
- Paper near end sensor 45
- The diameter of the roll of paper that is detected is an estimate some variations may occur depending on the paper 45
- Unit mm 45
- Caution 46
- Loading paper 46
- Caution 47
- Refer to precautions in handling the printer 47
- Enter selecting paper type mode 1 with the top cover open turn on the printer power switch while pressing and holding the feed key the buzzer sounds and the status led flashes in green 2 after releasing your finger from the feed button briefly press the feed button consecutively four times next when the paper is set in place and the top cover closed the buzzer sounds four short times and paper selection mode starts 48
- Paper type selection is available by the combination of memory switches msw4 4 and msw4 5 by the used of memory switch select mode in addtion the following procedure is available 48
- Save the selected paper type to the printer open the top cover and then close it as it is the paper type selected is stored in the printer memory switch as shown in the table below the paper type setting mode finishes and the printer restarts automatically 48
- Select paper type press the feed key to match the paper used with the paper type displayed by the status display led refer to the table below 48
- Selecting a paper type 48
- Calibrate the paper sensor to suit the actual paper you are using before using label paper or black mark paper before executing this mode use the paper selection mode or the msw4 4 and msw4 5 settings to set the paper type you want to use 49
- Calibrating the paper sensor 49
- Refer to 3 1 selecting a paper type 49
- Refer to 5 manual setting of memory switches 49
- Caution 50
- Caution 51
- Mm width roll paper partition 51
- Refer to 5 manual setting of memory switches 51
- Refer to precautions in handling the printer 51
- Caution 52
- It can extend the abrasion life of the head resistant by reducing the pressure to press the print head against the paper the long life printing llp function can be enabled by changing the position of the projection switch inside the paper cover 52
- Refer to precautions in handling the printer 52
- Setting the long life printing llp function 52
- Mounting the cable cover 53
- Download site for various electronic files 54
- Precautions for creating applications and practical operations 54
- Caution 55
- Maintenance and troubleshooting 55
- Periodic cleaning 55
- Caution 56
- Clearing a cutter error 56
- If the auto cutter stops during the auto cutter operation with the blade of the auto cutter in the open position due to foreign matter entering paper jamming etc the cutter led flashes when a cutter error occurs resolve the cutter error with the following procedure 56
- Refer to precautions in handling the printer 56
- Buffer size 57
- Firmware version 57
- Interface settings 57
- Memory switch settings 57
- Performing a self test operation 57
- Printer type name 57
- Self test 57
- You can use self test to check for printer problems 57
- Caution 58
- Do one of the following to stop printing 58
- Hexadecimal dump printing 58
- How to do hexadecimal dump printing 58
- How to stop hexadecimal dump printing 58
- Press the feed button consecutively three times 58
- Print example hex dump print mode 58
- Print received data in hexadecimal if problems such as missing or duplicated data occur this function allows you to check whether or not the printer is receiving data cor rectly 58
- Receive a reset command from an interface 58
- Turn off the power 58
- Error indications 59
- The status display for various messages is shown below 60
- Caution 61
- Paper jams 61
- Precautions for performing printing for which printing speed changes 61
- Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing if paper cannot get out of the printer it can roll up on the platen inside the printer and cause an error if the paper wraps around the platen open the paper cover and carefully pull the paper out 61
- When printing for which the printing speed changes is performed white lines may be printed or paper may not be fed depending on the printing conditions to prevent these problems change the following memory switch settings 61
- External views and dimensions 62
- Caution 63
- Printing paper 63
- This product is not equipped with a manual cutter thus it cannot manually cut paper with perforated lines well cutting paper with perforated lines with the auto cutter may cause paper scraps to accumulate internal part of the printer causing it to break down 63
- Use the paper shown in the following table or paper of the same quality 63
- Caution 64
- Thermal roll paper 64
- Unit mm 64
- Use thermal paper that is wound as follows not creased and fits tight to the core not folded not glued to the core rolled with the printable side out 64
- Caution 65
- Label media 65
- Unit mm 65
- When using the auto cutter this may damage the cutter lock or the cutter so be careful of the following keep the paper cut length to 29 mm or more set the cut position to cut between the labels the backing paper section do not cut the label paper the tack paper if you have changed the label backing paper type be sure to adjust the paper sensors again keep both the left and right margins of the paper to at least 2 mm keep the top and bottom margins of the paper to at least 1 mm 65
- Black mark paper 66
- Caution 66
- Unit mm 66
- Use a black mark pcs value of 0 0 or more take the basic printing position 2 mm into account for print cue accuracy using black mark detection for printing length take variations in the ambient temperature and platen diameter machining accuracy in the initial state into account and allow for 2 with regard to setting values additionally when considering the product life allow for a maximum of 5 with regard to setting values when using preprinted paper give due consideration to the print layout if printing spans multiple black marks the black marks are ignored and printing continues 66
- Individual setting mode 67
- Manual setting of memory switches 67
- Memory switches are used to set various printer settings memory switches can be set manually or by utilities or commands this section explains how to perform manual settings for information on how to set the memory switches using commands please refer to the command reference 67
- Set the memory switches individually do the settings while confirming the memory switch function and settings on the print out 67
- Memory switch initialization 68
- Set all the memory switches to the factory settings 68
- The function of each memory switch is shown in the following table shaded values are factory settings 69
- 1 label specifications black mark specifications 2 for label specifications black mark specifications msw4 8 settings are not applied limited to full cut 71
