26
——
3.2 Connecting Cables
1. Turn off the power.
2. Orient the cable correctly and insert it into the connector.

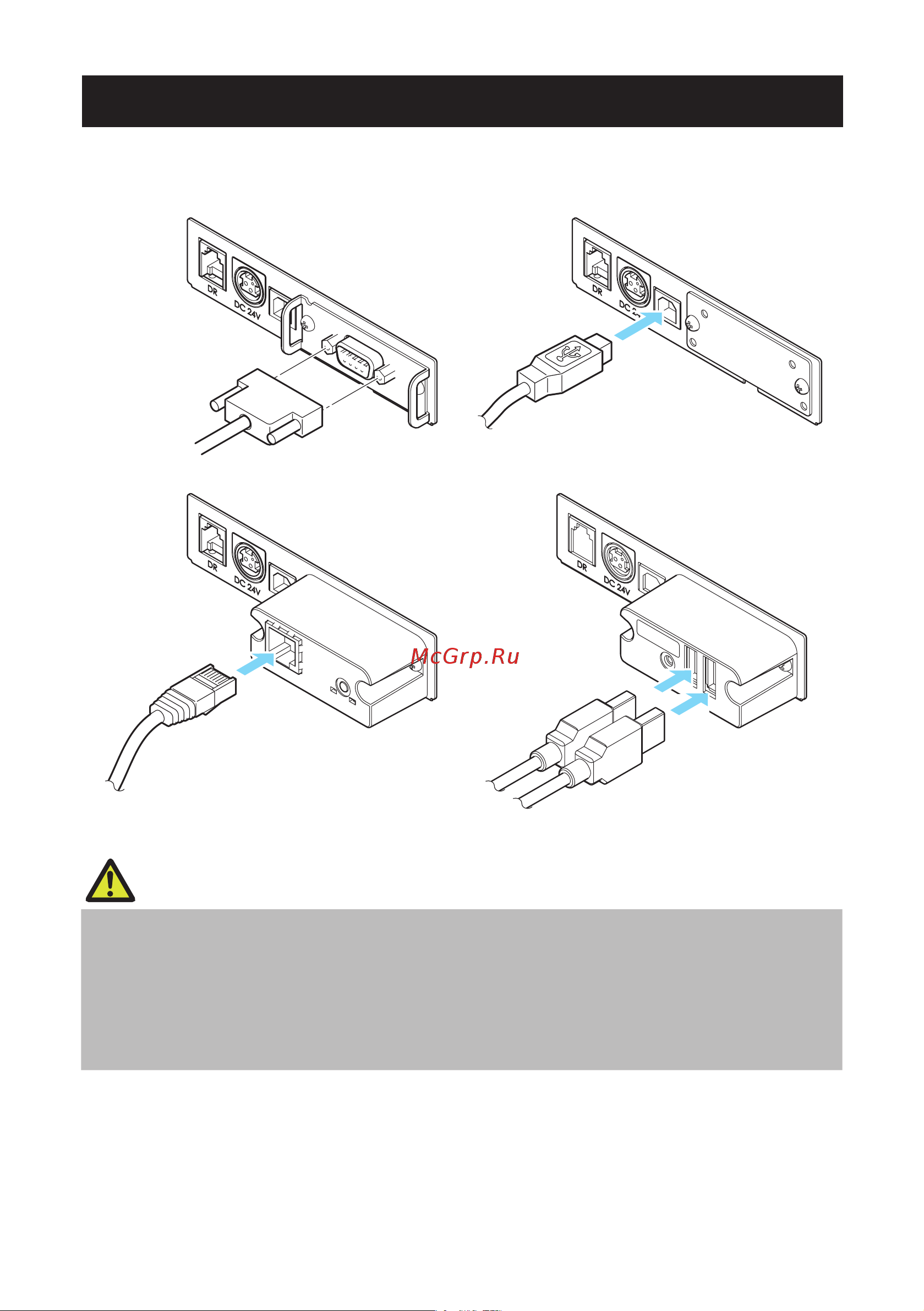

Serial RS-232C cable USB cable (T
ype-B)
USB cable (T
ype-A)
Ethernet cable
CAUTION
When disconnecting the cable, always hold the connector.
Be careful not to insert the USB cable into the cash drawer kick-out connector.
To connect more than one printer to a single computer by USB, you must change the serial
number of the USB interface.
Hold the connector of the LAN cable perpendicular and straight when connecting or discon-
necting it. Doing it at an angle may cause the connector to misconnect.
Do not connect multiple interfaces at the same time.
