50
——
Black mark paper sensor adjustment method
Check that MSW4-4: OFF and MSW4-5: OFF.

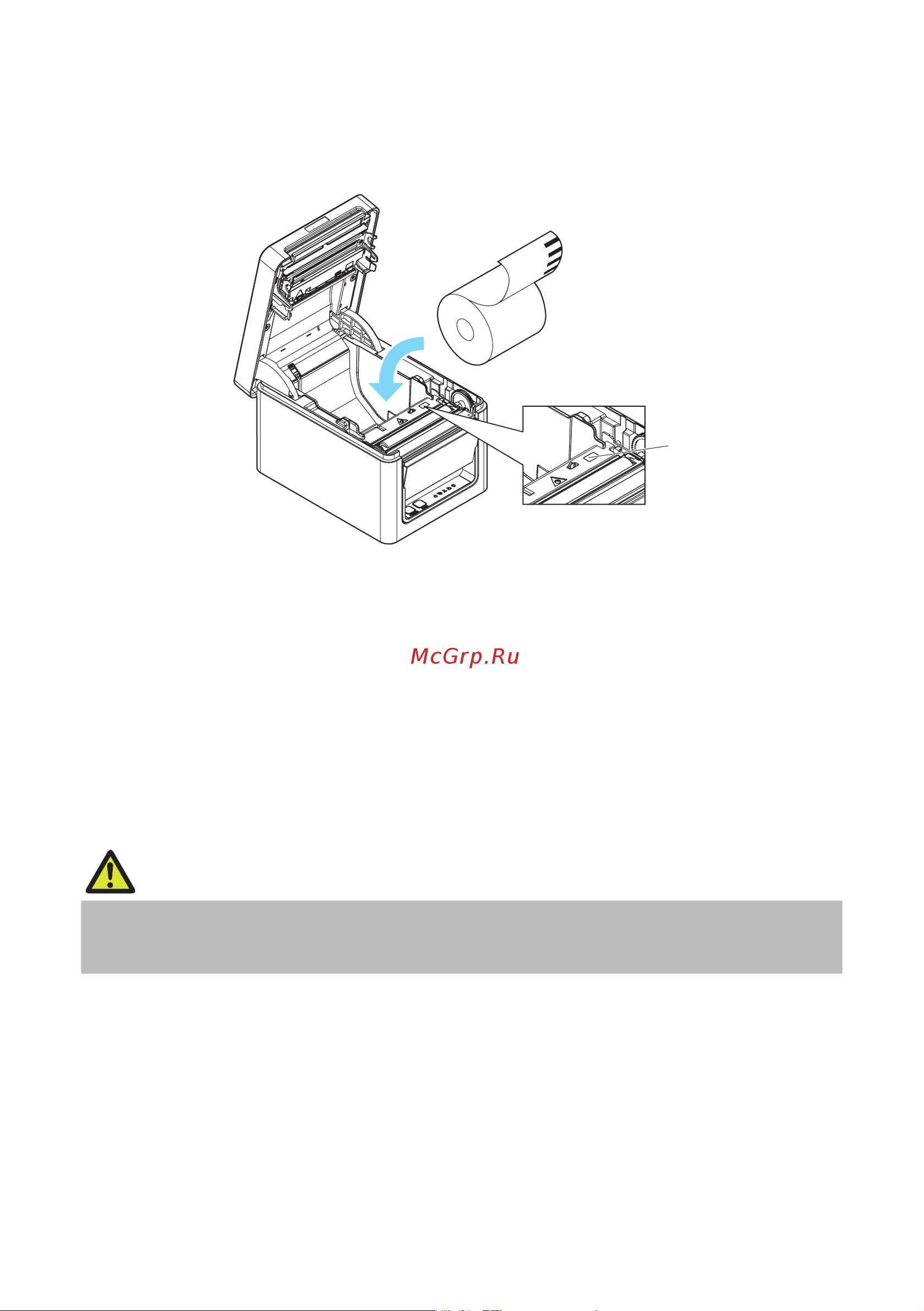

Set the roll paper in place with the printing surface facing up.
Adjust the position of the paper so that the black mark area is not above the bottom
sensor.
1
1. Bottom sensor
2. Enter the paper sensor adjustment mode
1) With the paper cover open, turn the printer power switch ON while holding down the FEED
button.
2) After releasing your nger from the FEED button briey, press the FEED button
consecutively ve times.
3) Next, close the paper cover so that the buzzer sounds ve times and paper sensor
adjustment mode starts.
3. Adjust the sensors
Press the FEED button. The sensors are adjusted automatically. Once sensors have been
adjusted the printer restarts.
CAUTION
Set MSW to match the paper you are using and adjust the paper sensors.
If you have changed the label paper or black mark paper type, please adjust the paper
sensors again.
