66
——

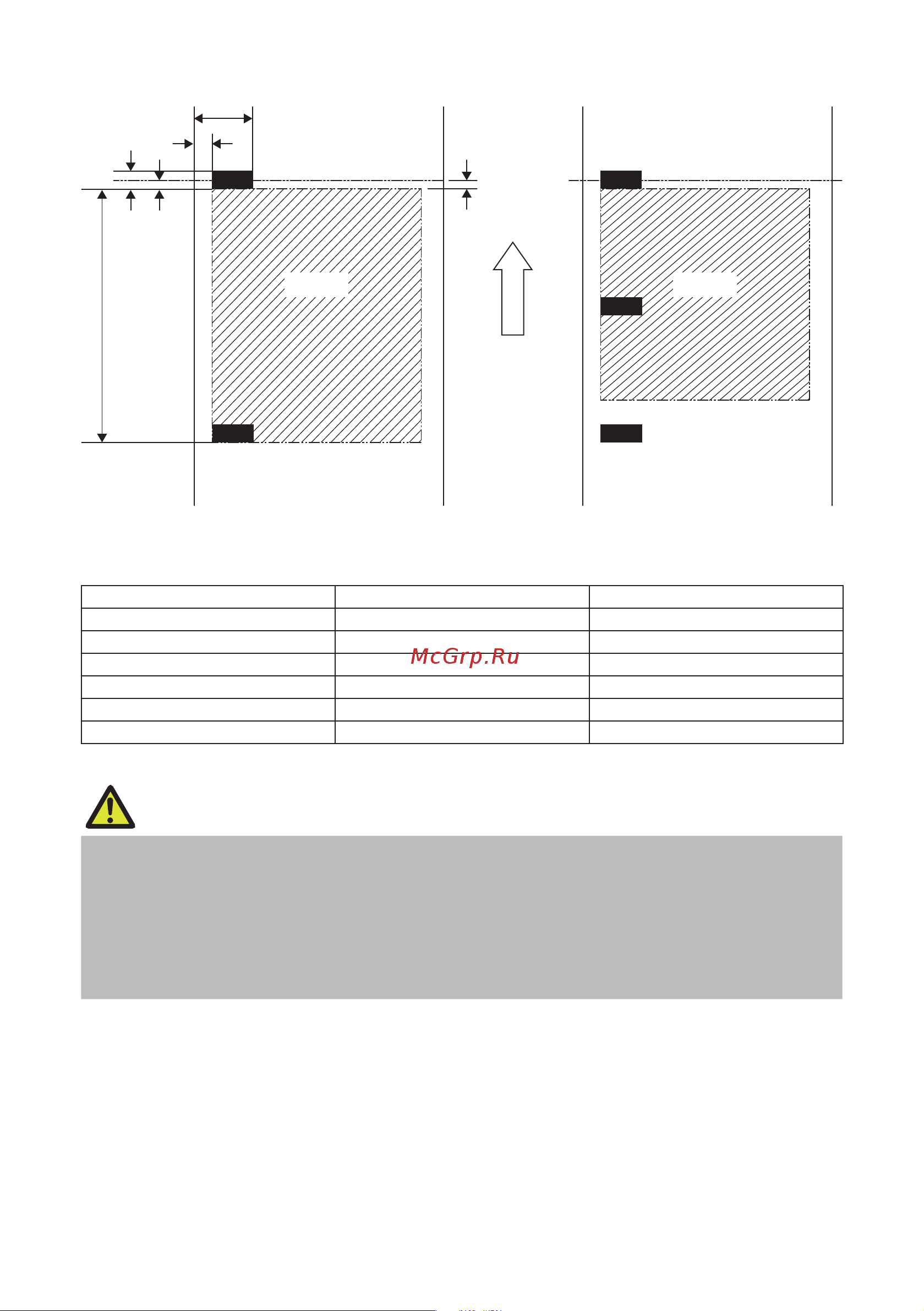

Black mark paper
B
DCE
A
Paper feeding
direction
Cut position
Printable
area
(a) Where printing is between BM gaps
Cut position
Printable
area
(b) Where printing spans multiple BM gaps
F
(Unit: mm)
Symbol Item Dimensions
A Black mark position on right edge 13.4 or more
B Black mark position on left edge 0.4 or less
C Black mark height 4 to 6
D Black mark cut position 2 to 3
E Above paper margin 0 ±0.5
F Black mark pitch 30 to 300
CAUTION
Use a black mark PCS value of 0.90 or more.
Take the basic printing position ±2 mm into account for print cue accuracy using black mark
detection. For printing length, take variations in the ambient temperature and platen diameter
machining accuracy in the initial state into account and allow for ±2% with regard to setting
values. Additionally, when considering the product life, allow for a maximum of -5% with regard
to setting values. When using preprinted paper, give due consideration to the print layout.
If printing spans multiple black marks, the black marks are ignored, and printing continues.
