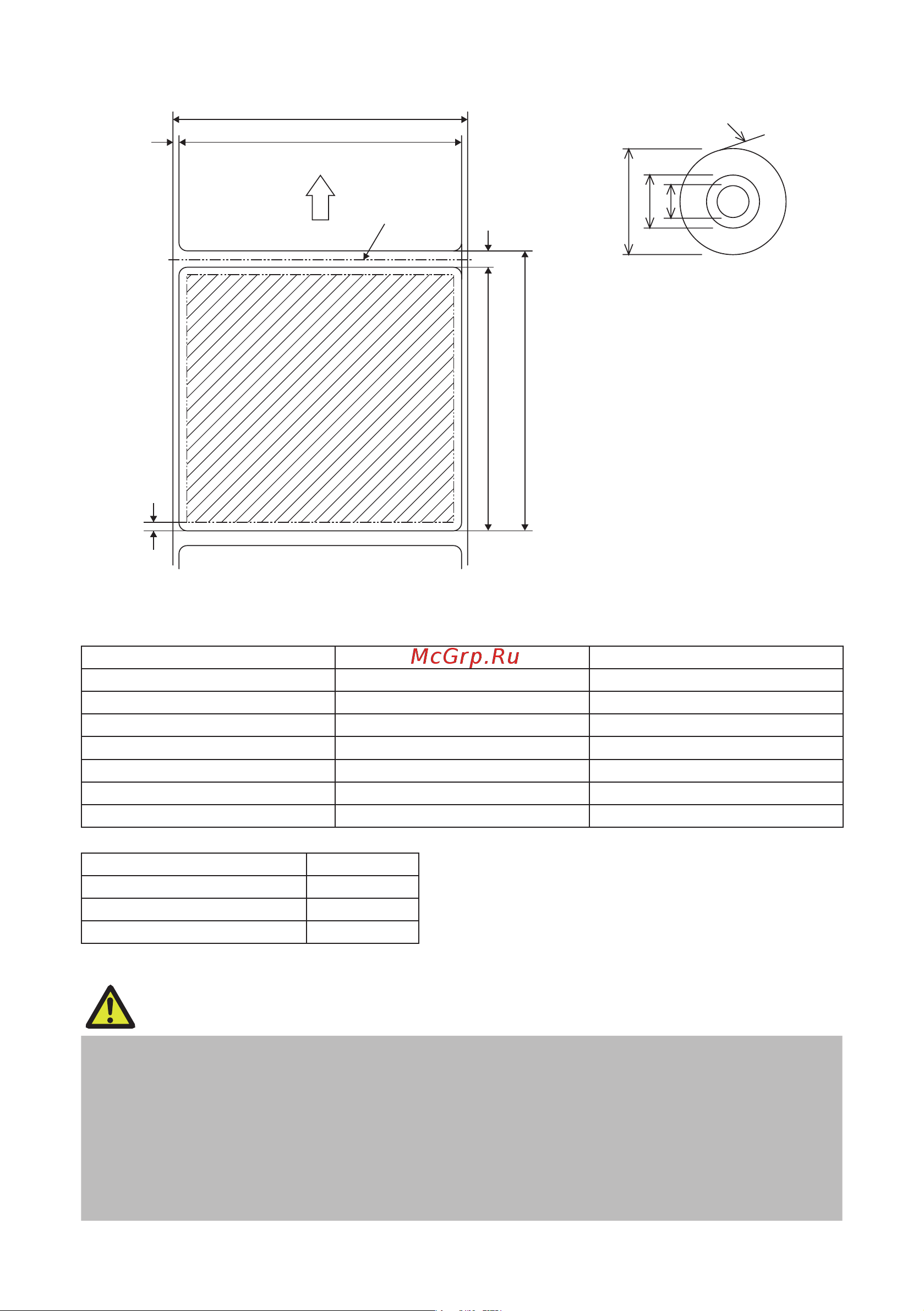

Label media
D
d
Paper feeding
direction
Cut position
Printing surface
83 or less
A
BC
E
D
F
G
(Unit: mm)
Symbol Item Dimensions
A Backing paper width 57.5/79.5 ±0.5
B Label width 53.5/75.5 ±0.5
C Label position on left edge 2 ±0.5
D Label gap 4 to 30
E Label length 25 to 300
F Label pitch D + E
G Label paper angle (R) 3 or less
Label paper thickness 65 to 85 μm
Backing paper thickness 60 μm or less
Core inner diameter d (mm) 25.4
Core outer diameter D (mm) 32
CAUTION
When using the auto cutter, this may damage the cutter lock or the cutter, so be careful of the
following.
· Keep the paper cut length to 29 mm or more.
· Set the cut position to cut between the labels (the backing paper section). Do not cut the
label paper (the tack paper).
If you have changed the label backing paper type, be sure to adjust the paper sensors again.
Keep both the left and right margins of the paper to at least 2 mm.
Keep the top and bottom margins of the paper to at least 1 mm.
