Citizen CT-E651L [43/72] Caution

——

(2) Electric characteristics

1) Drive voltage: 24 VDC

2) Drive current: Approx. 1 A max. (not to exceed 510 ms.)

3) DRSW signal: Signal levels: “L” = 0 to 0.5 V, “H” = 3 to 5 V

(3) DRSW signal

Status can be tested by commands.

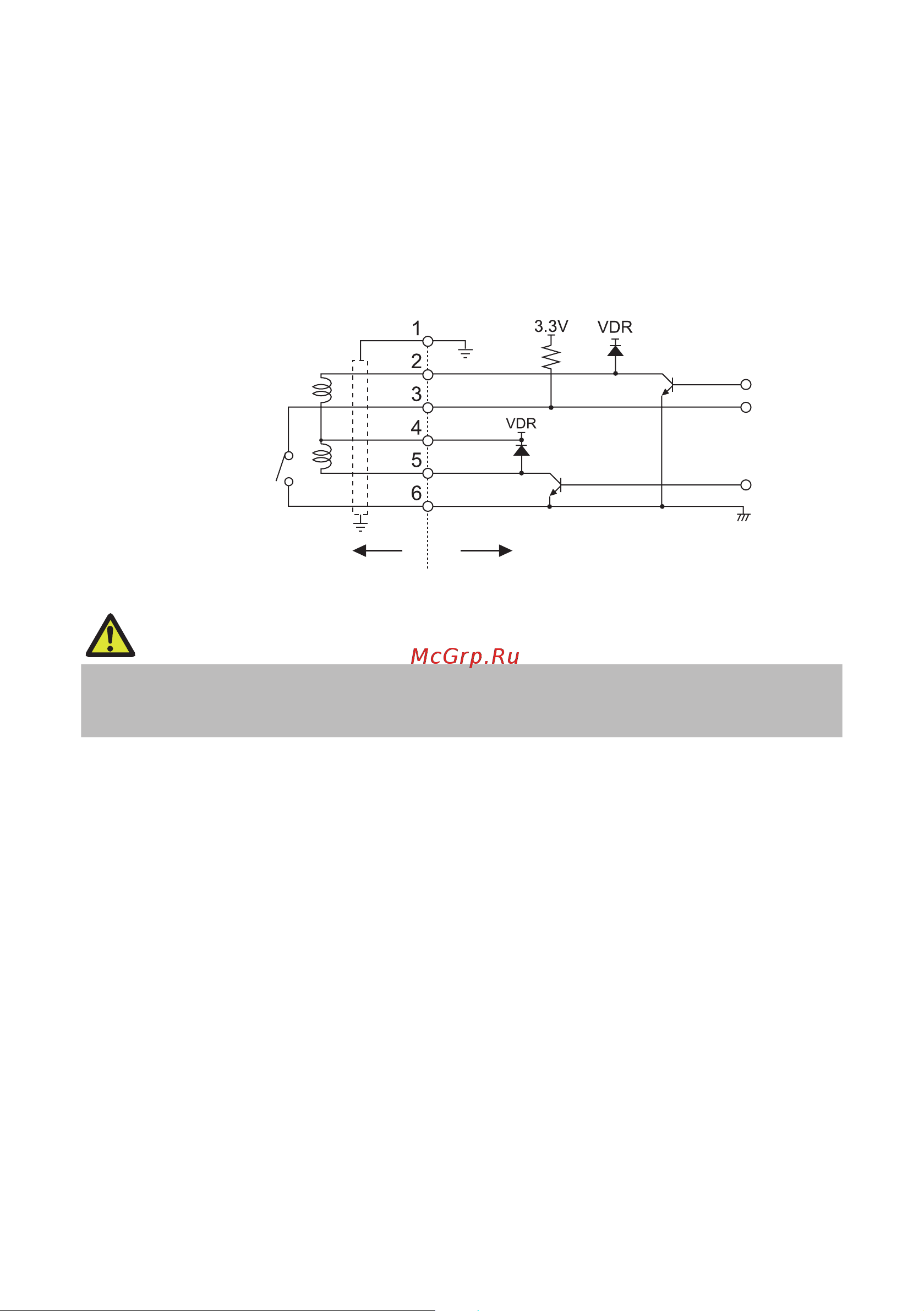

(4) Drive circuit

Cash drawer kick-out connector

Cash drawer

open/close

switch

Shielded

Printer

Cash drawer

CAUTION

 Cash drawers 1 and 2 cannot be operated at the same time.

 The solenoid used for the cash drawer should be 24 Ω or more. Do not allow the electric cur-

rent to exceed 1 A. Excessive current could damage or burn out the circuits.
