35
——
3.5 Ethernet (LAN)/Wireless LAN Interface Board
This section provides an overview of the interface board. For details on this board, in-
cluding explanations about the USB host function and XML peripheral device support,
refer to the separate manual.

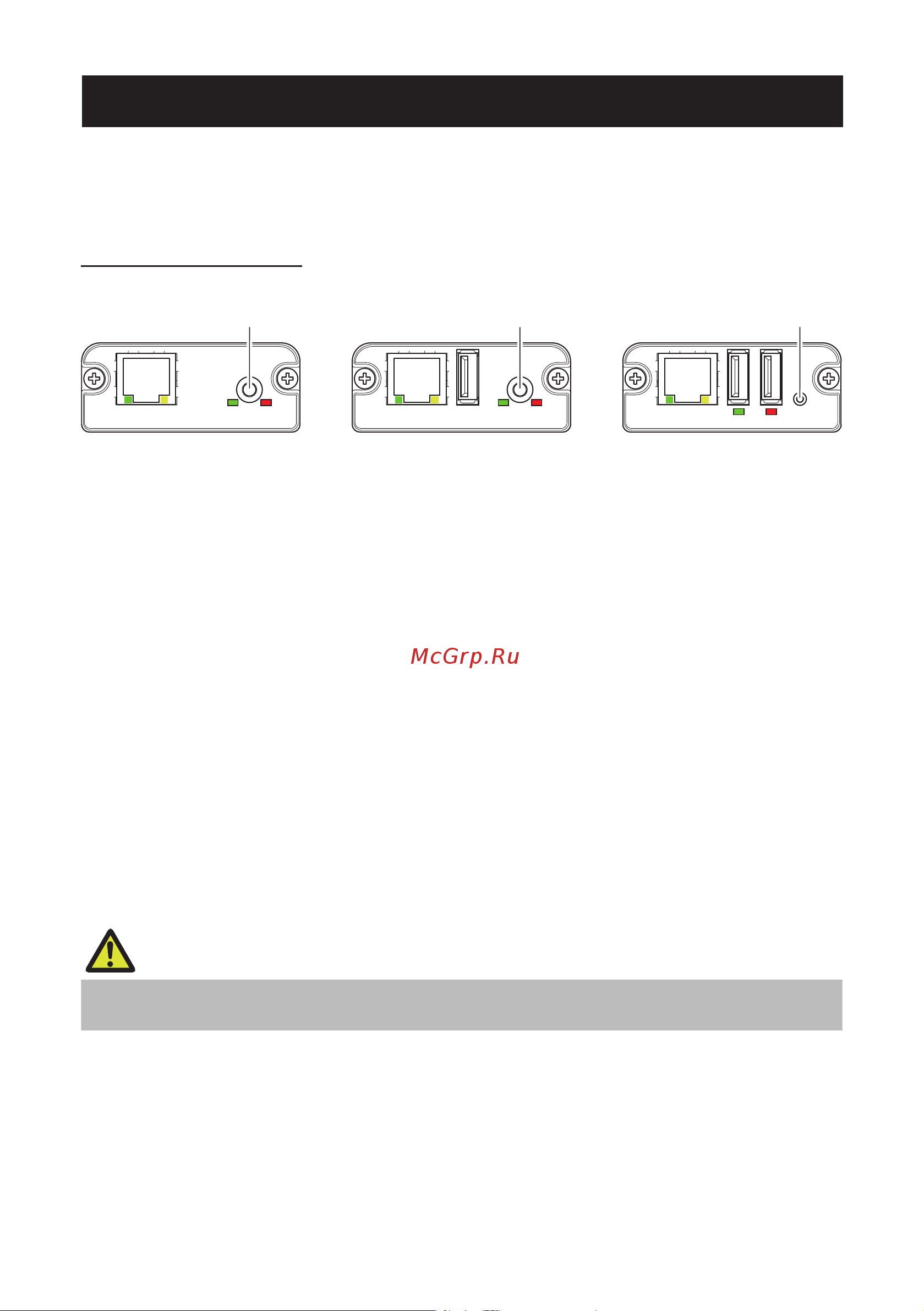

Panel button operation
Board operations are performed using the panel button on the rear of the LAN board.
Panel buttonPanel button
Wireless LANEthernet
Panel button
Ethernet
USB host model
Enabling LAN connection
Turn on the printer. Operation of this board will start about 20 seconds later.
Printing LAN setup information
Press the panel button.
Entering setting mode
Hold down the panel button. A buzzer will sound once to indicate that setting mode
has been entered.
You can use setting mode to read factory settings.
If no operation is performed for 3 seconds in conguration mode, the mode
switches back to normal mode.
Returning to factory settings
Enter the board setting mode, and then hold down the panel button. This returns the
board to its factory settings.
CAUTION
The board will automatically restart after this operation is complete. After clearing settings, you
will need to re-congure network settings.
