 Print the interface board state

After starting the printer, pressing the panel button once prints the interface board

state.

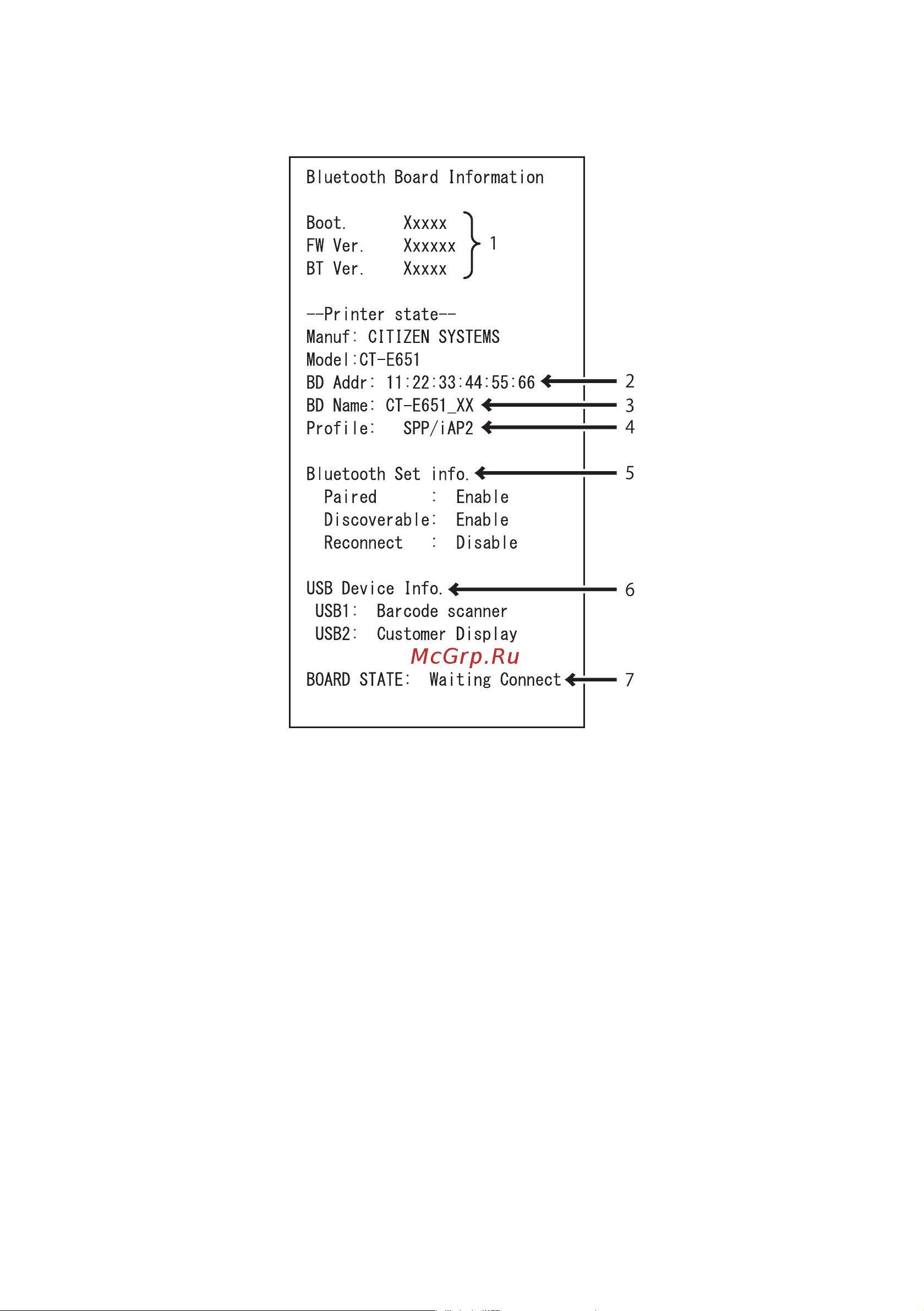

Print example

1. Board rmware version

2. Address of equipped Bluetooth module

3. Bluetooth name

4. Response prole in Bluetooth transmission

5. Bluetooth setting state

6. Name of connected USB device (“No connection” is displayed when there is no

connection)

7. Board status
