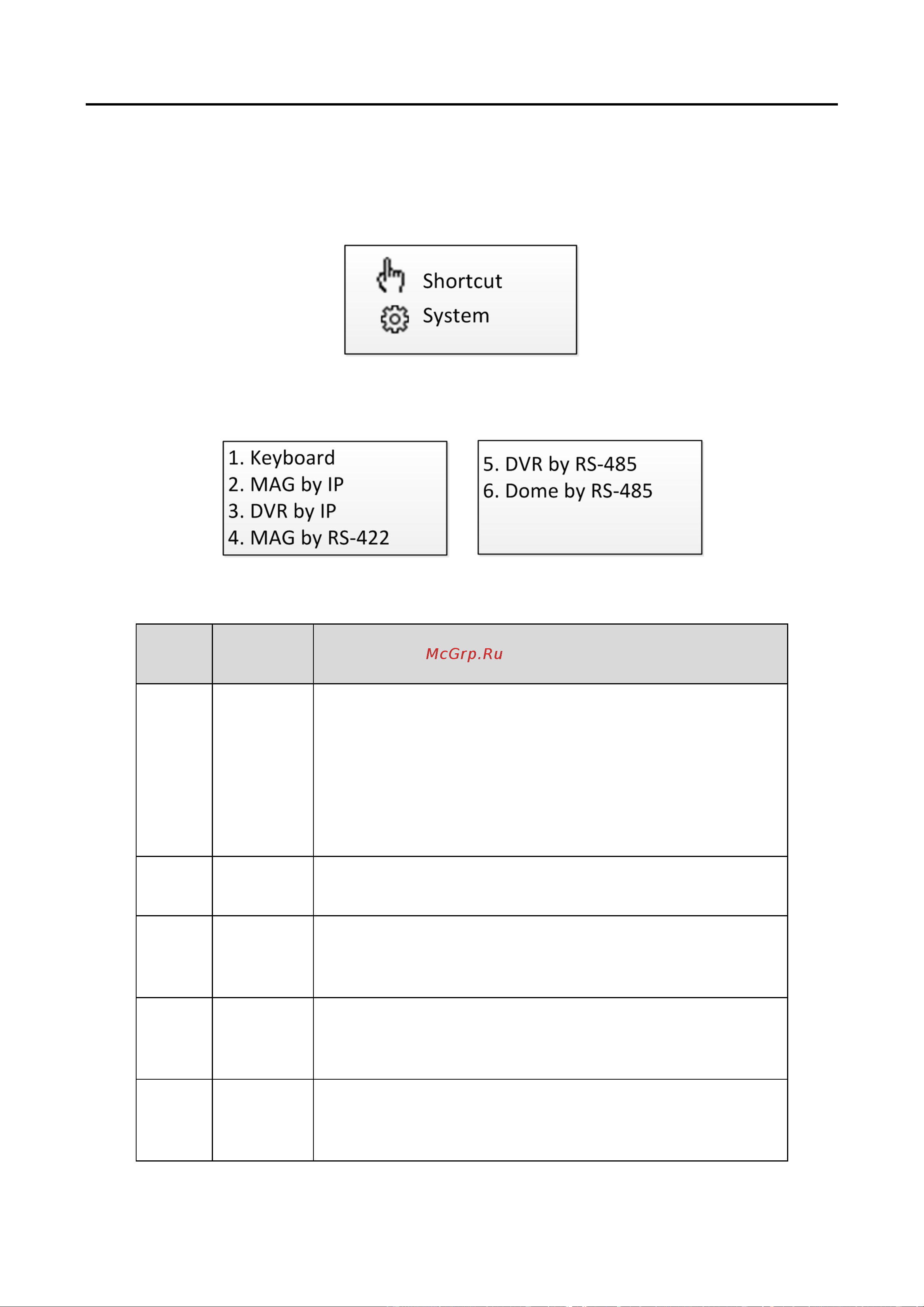

![Hikvision DS-1006KI [22/37] Keyboard operation chapter 4](/views2/1892089/page22/bg16.png)
DS-1200KI/1006KI Keyboard User Manual
DS-6900UDI Decoder User Manual
15
Keyboard Operation Chapter 4
Step 1 On the login interface, enter the user name and password to log in to the device.
Figure 4-1 Menu
Step 2 Press the MODE button on the panel to enter the operation for different device.
Figure 4-2 Operation Mode Selection
Description of Operation Mode Table 4-1
SN
Operation
Mode
Description
1
Keyboard
The keyboard can be used for managing the devices
(including the IPC, IP dome, DVR/NVR, MVC, decoder, video
wall controller, etc.) for control. The keyboard can add the
devices via Web browser and assign each of them the
unique device ID, and finally manage to communicate with
and realize the video wall or PTZ control through the device
ID+command operation.
2
MAG by IP
The keyboard can connect with the matrix access gateway,
and realize the video wall control, PTZ control, etc.
3
DVR by IP
The keyboard can connect with the DVR/NVR and remotely
call the device menu and realize PTZ control through the
virtual panel.
4
MAG by
RS-422
The keyboard can connect with the matrix access gateway
or MVC via RS-422 serial port, and realize the video wall
control, PTZ control, etc.
5
DVR by RS-
485
The keyboard can connect with the DVR/NVR via RS-485
serial port, and remotely call the device menu and realize
PTZ control through the virtual panel.
