RS-485/RS-422 Settings 5.4

You can connect the analog dome or DVR with the keyboard via RS-484 serial port, and the

MVC/MAG with keyboard via RS-422 serial port.

Select RS-485/RS-422 to enter the RS-485/RS-422 settings interface. You can configure the address

bit (RS-485 only), baud rate, data bit, protocol (PROT: PELCO-P, PELCO-D, VICON, KALATEL,

HIKVISION selectable), stop bit, parity, and copy all settings. When you set the Copy All to Yes for

RS-485 serial port, the current settings will be copied to the connection of all other RS-485 devices.

Click OK button or the central button of joystick to save the settings.

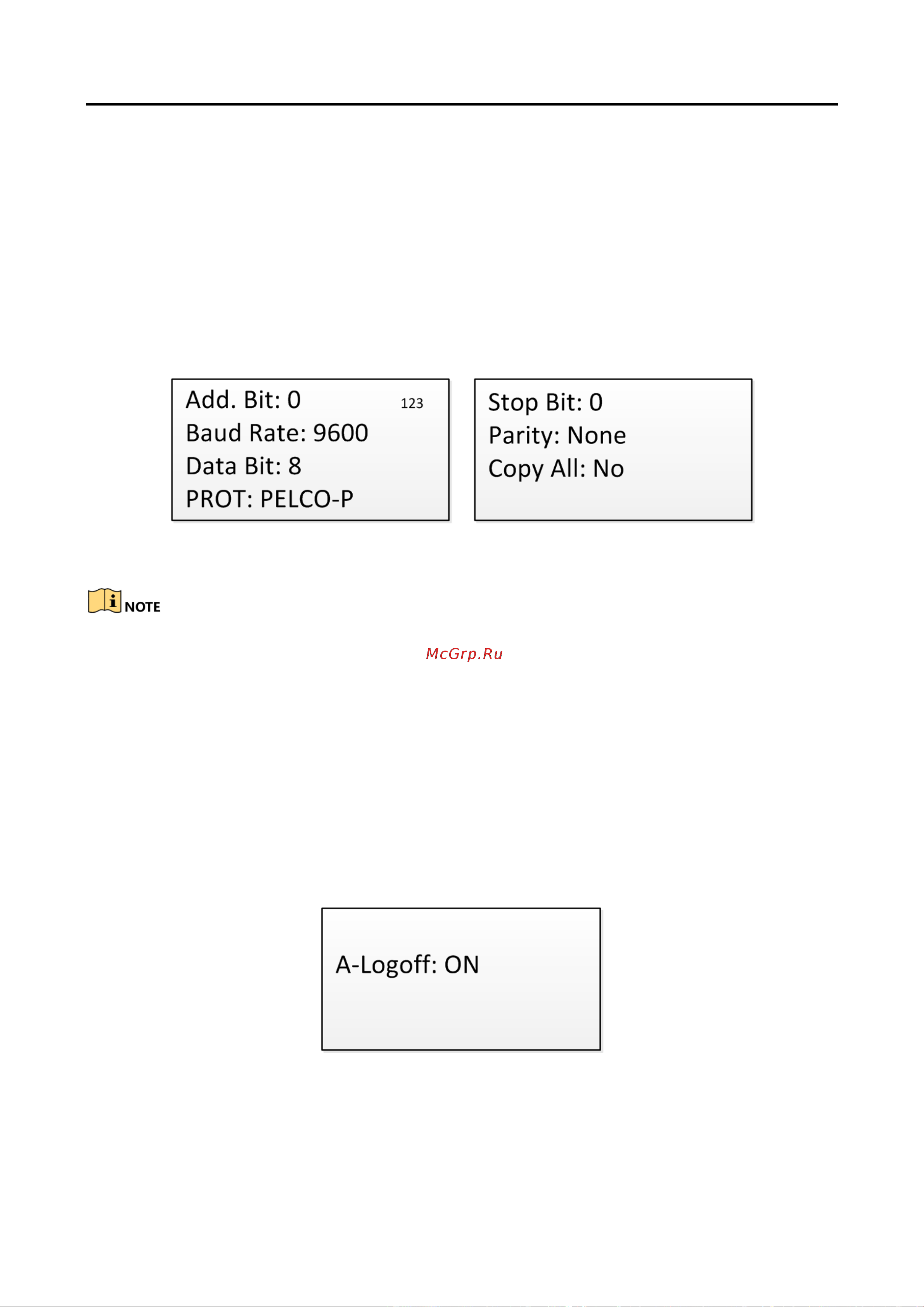

Figure 5-3 RS-485 Settings

The RS-485/RS-422 parameters configured here must be the same with the connected dome/DVR

or MVC/MAG.

Hardware 5.5

You can set the auto-logoff feature of the keyboard.

Select Hardware to enter the following interface, and move (left/right) the joystick to set the A-

Logoff to ON or OFF. Click OK button or the central button of joystick to save the settings.

When the auto-logoff is set to ON, the system will automatically log off after the device is not

operated for 30 minutes.

Figure 5-4 Auto-Logoff Settings
