Step 5 Press the Num + CAM/CAM-G buttons to select the input channel or input channel group.

You can press the PREV/NEXT buttons to switch to the previous or next camera / camera

group ID.

You can press the 0 + CAM buttons to stop decoding of the current camera, or press the 0 + CAM-

G buttons to stop cycle decoding of the camera group.

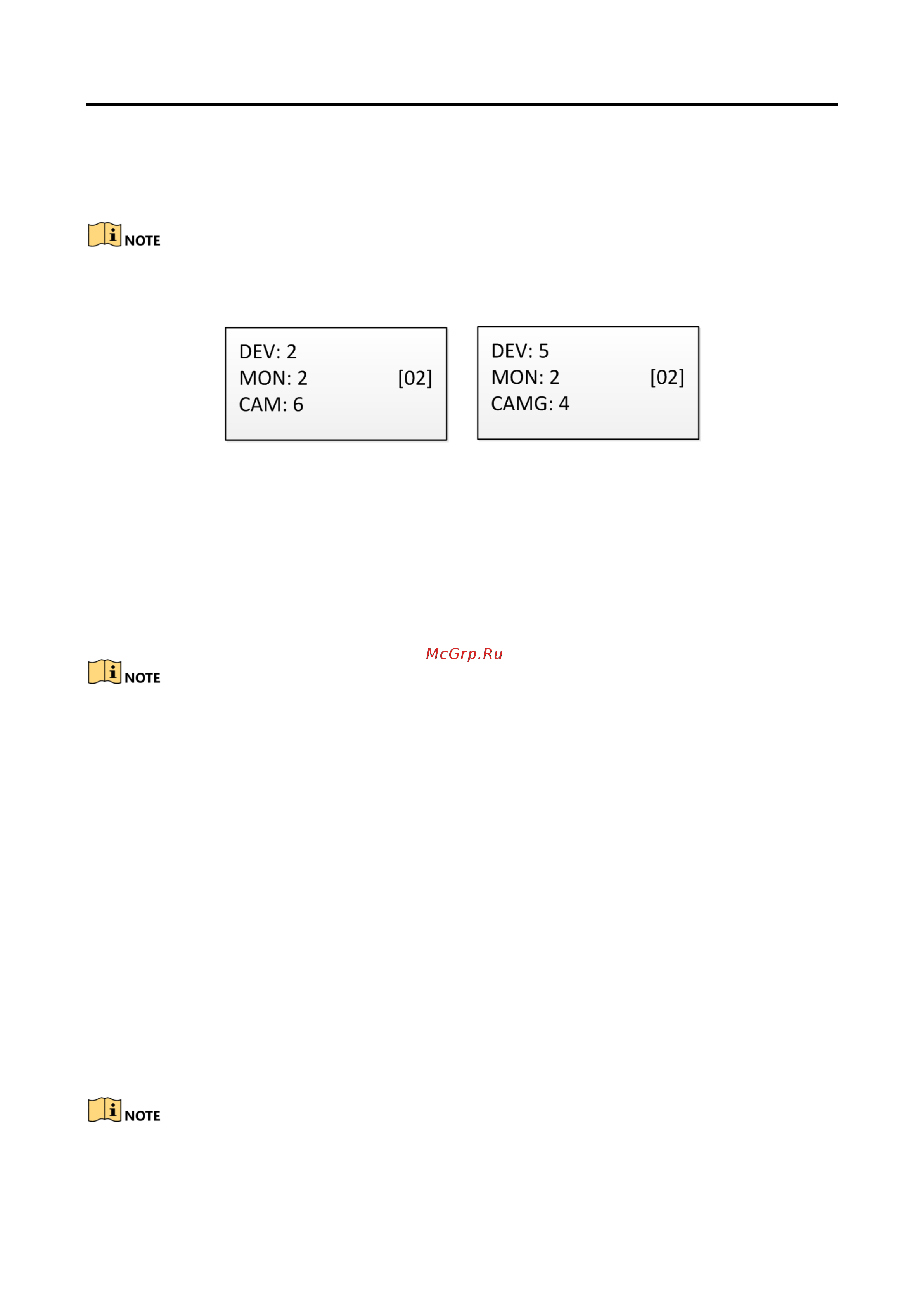

Figure 4-3 Video Wall Operation

Step 6 Operate the PTZ control on the video wall.

Move the joystick to realize pan/tilt movement in 8 directions and zoom in/out control.

Rotate the joystick in clockwise/anti-clockwise directions to l to realize the zoom in/out

control.

The central button of the joystick can be used to capture picture.

You can also directly press the Num + CAM buttons or Num + AUX (set to screen jointing, refer to

Chapter 4.1.4) and operate the PTZ control.

Preset/Patrol/Pattern Calling 4.1.2

The keyboard can be used to control the PTZ function of the connected IP dome camera, including

the pan/tilt movement, zoom/iris/focus adjustment, and preset/patrol/pattern calling.

Step 1 In the Keyboard operation mode, press the Num + MON buttons to select the output

channel ID.

Step 2 Press the Num + CAM buttons to select the input channel for PTZ control.

Step 3 Call the preset/patrol/pattern.

 Press the Num + PRESET buttons on the keyboard panel to call the defined preset.

 Press the Num + PATROL buttons on the keyboard panel to call the defined patrol.

 Press the Num + PATTERN buttons on the keyboard panel to call the defined pattern.

You can press PATTERN directly or 0 + PATTERN to call the auto scanning.
