DS-1200KI/1006KI Keyboard User Manual
DS-6900UDI Decoder User Manual
21

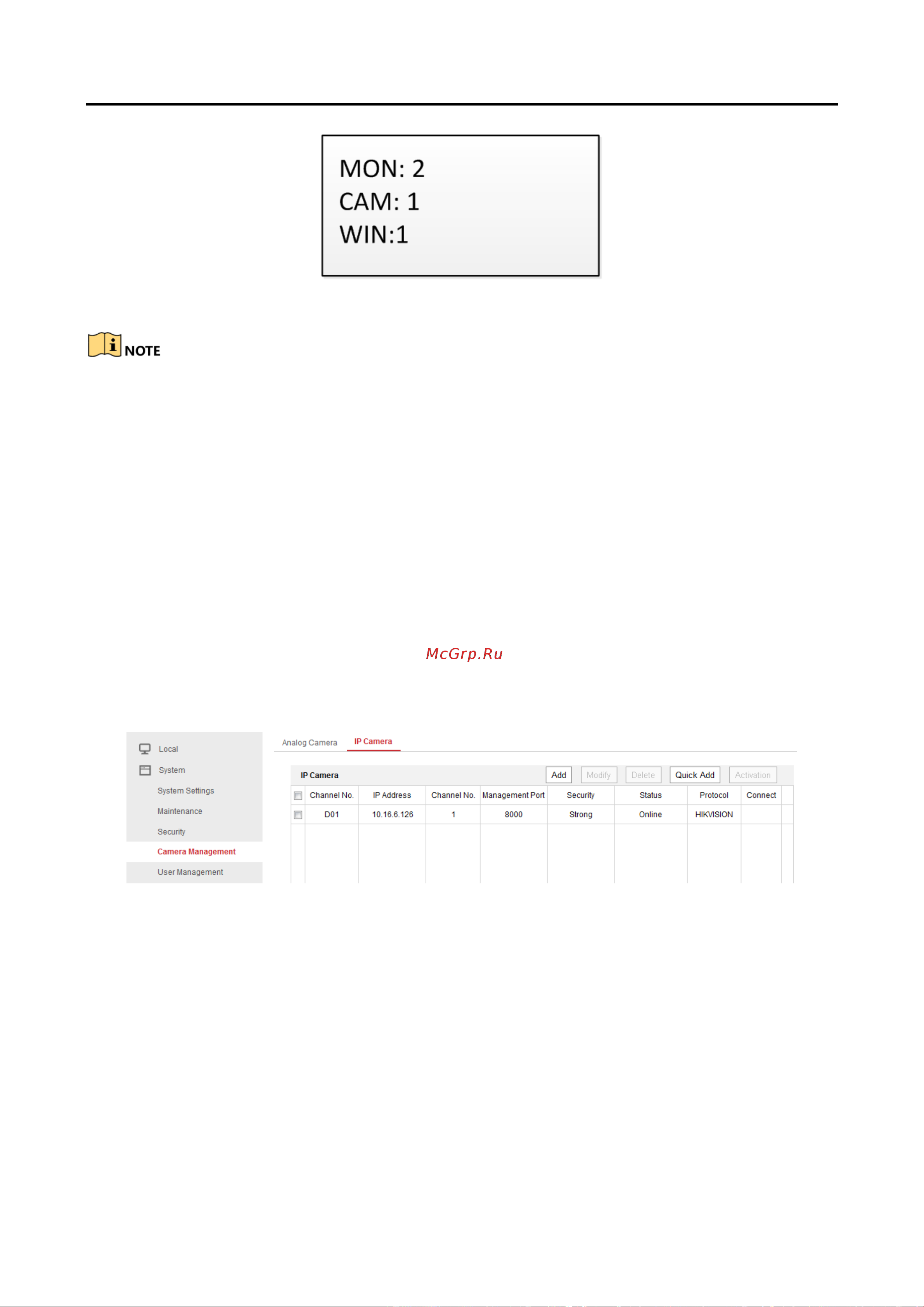

Figure 4-9 MAG by IP
For the initial use of MAG/MVC, you must use the configuration kits software to configure the
input/output channel ID of the MAG/MVC. Please refer to the user manual of MVC for details. The
input/output channel ID is used for switching on the video wall or PTZ control during keyboard
operation.
Step 7 Operate the PTZ control on the video wall. Refer to Step 6 in Chapter 4.1.1 for details.
DVR by IP 4.3
The keyboard can connect with the DVR/NVR and remotely call the device menu and realize PTZ
control through the virtual panel.
Step 1 Log in to the keyboard via Web browser (https://ip address), and enter the DVR/NVR device
list (Device Management>Device List>DVR/NVR).
Step 2 Click Add to add the DVR/NVR device. Please refer to Chapter3.2 Device Management.
Figure 4-10 DVR/NVR Management
Step 3 Enter the DVR by IP operation mode on the keyboard.
Step 4 Press the Num + DEV buttons on the keyboard panel to select the device ID (viewed on the
Device Management>Device List>DVR/NVR).
