Before you start:

Check the connection between the DVR/NVR and the Keyboard. The T+ ad T- terminals of the

keyboard’s RS-485 serial port must be connected with the D+ and D- terminals of the KB port on

the DVR rear panel respectively.

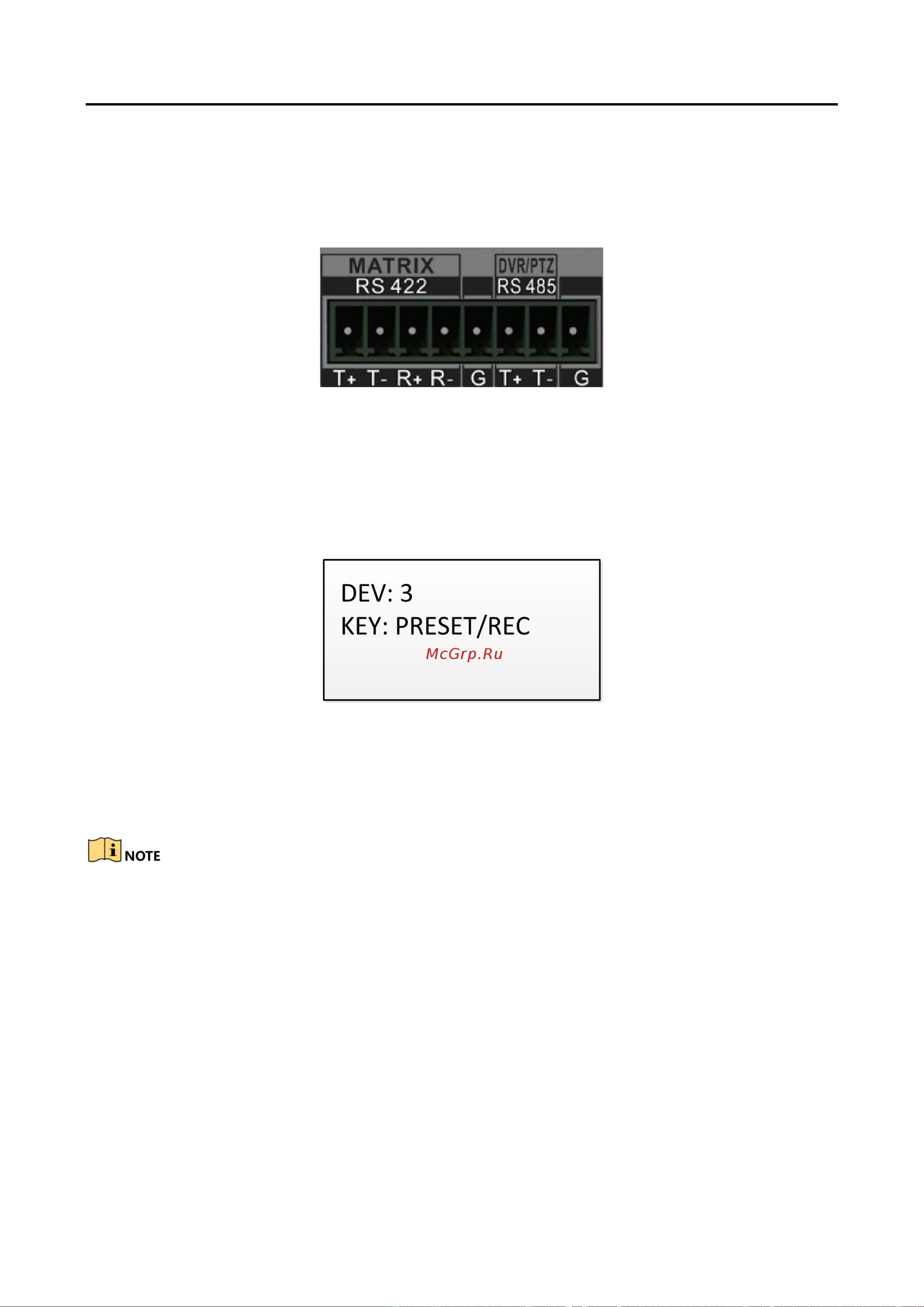

Figure 4-15 RS-485 Serial Port

Step 1 Use the ClientDemo to log in to the DVR/NVR to check the remote control ID.

Step 2 Enter the DVR by RS-485 operation mode on the keyboard.

Step 3 Press the Num + DEV buttons on the keyboard panel to select the device ID (corresponding

to the remote ID on ClientDemo).

Figure 4-16 DVR by RS-485

Step 4 Move the joystick and operate the buttons on the keyboard panel to realize the

corresponding functions. Please refer to Chapter 1.4 Functional Buttons to check the

description of the DVR control buttons.

The baud rate, protocol and other parameters of RS-485 of the keyboard must be configured to

9600, 8, 1 and none parity.

Dome by RS-485 4.6

The keyboard can connect with the analog dome or PTZ unit via RS-485 serial port, and realize PTZ

control.

Before you start:

Check the connection between the dome and the Keyboard. The T+ ad T- terminals of the

keyboard’s RS-485 serial port must be connected with the T+ and T- terminals of the dome

respectively.
