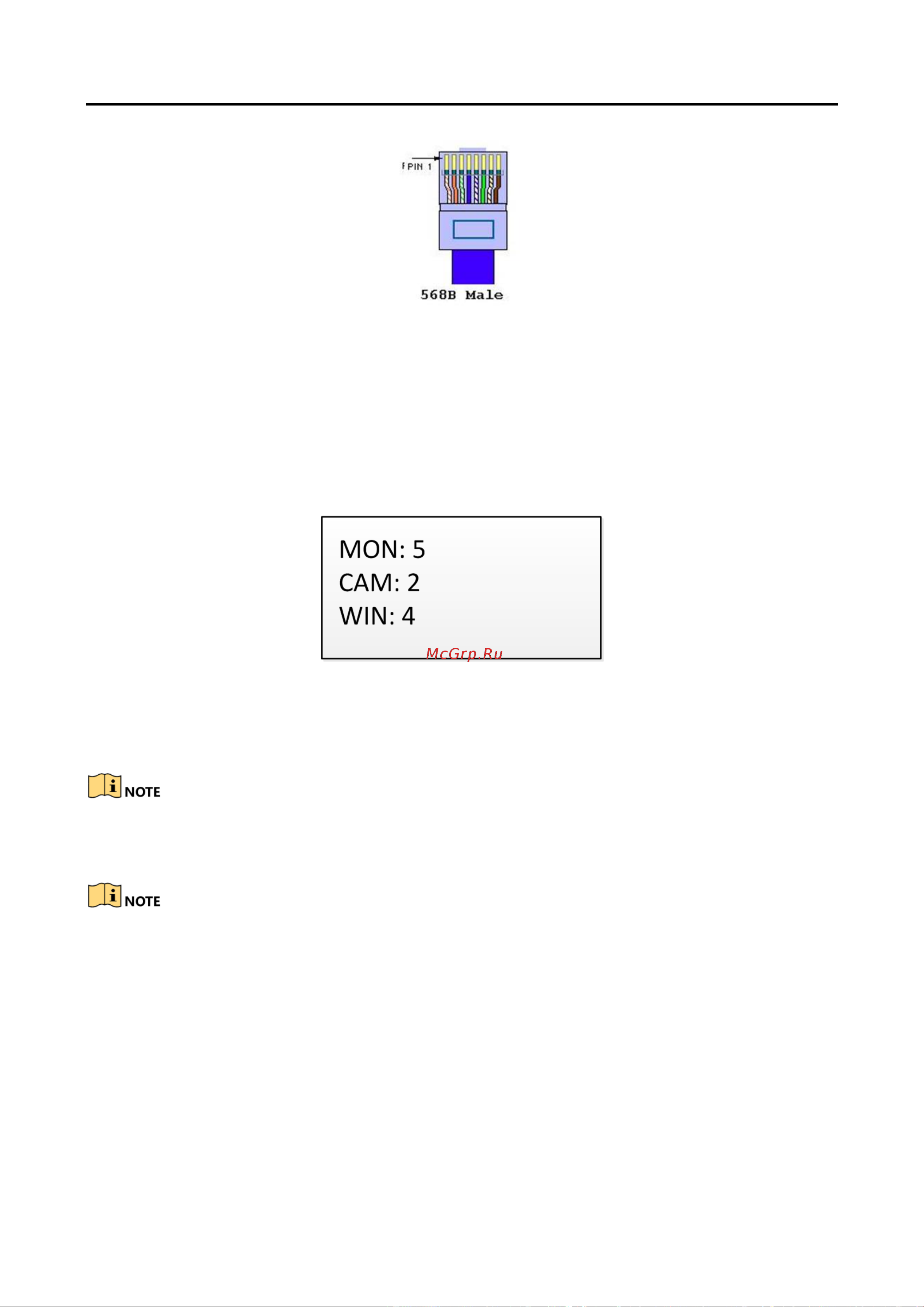

Figure 4-13 Network Cable

Step 1 Enter the MAG by RS-422 operation mode on the keyboard.

Step 2 Press the Num + MON buttons to select the display window for the output channel.

Step 3 Press the Num + WIN buttons to set the window to play the decoded video.

Step 4 Press the Num + CAM buttons to select the input channel.

Figure 4-14 Matrix Operation

Step 5 You can operate the PTZ control on the video wall for the connected dome. Refer to Chapter

4.1.2 for instructions.

You can also press the Num + CAM buttons to select the input channel, and operate the PTZ

control.



Both the MAG and MVC can be connected to the keyboard by RS-422 serial port.



For the initial use of MAG/MVC, you must use the configuration kits software to configure the

input/output channel ID of the MAG/MVC. Please refer to the user manual of MVC for details.

The input/output channel ID is used for switching on the video wall or PTZ control during

keyboard operation.

DVR by RS-485 4.5

The keyboard can connect with the DVR/NVR via RS-485 serial port, and remotely call the device

menu and realize PTZ control through the virtual panel.
