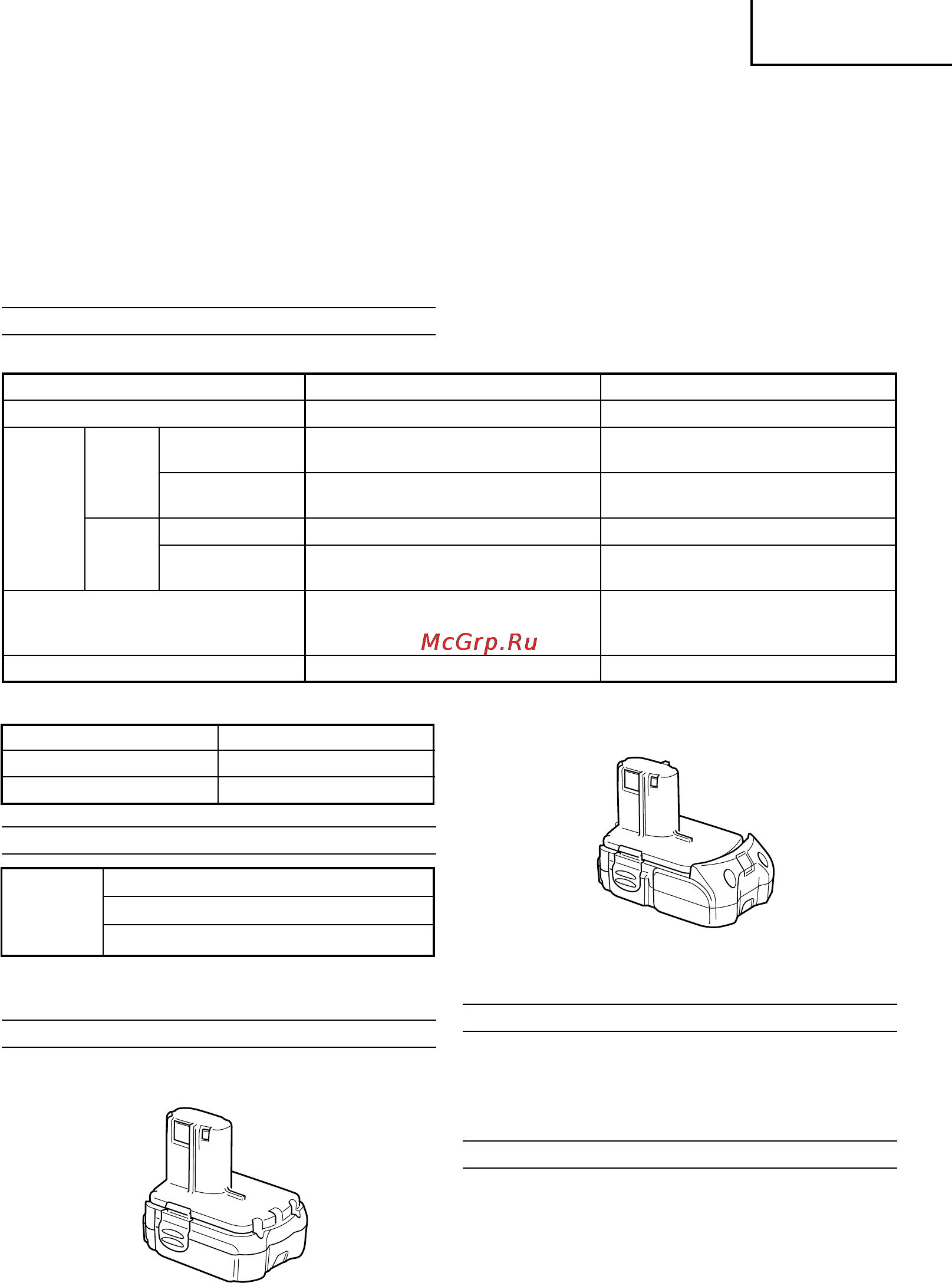

8
CAUTION
1. If liquid leaking from the battery gets into your
eyes, do not rub your eyes and wash them well
with fresh clean water such as tap water and
contact a doctor immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well
with clean water such as tap water immediately.
There is a possibility that this can cause skin
irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using
the battery for the first time, do not use and return
it to your supplier or vendor.
SPECIFICATIONS
POWER TOOL
Model DS14DFL DS18DFL
No-load speed (Low/High) 0 – 400 / 0 – 1200 min
–1
0 – 400 / 0 – 1200 min
–1
Wood
Drilling
(Thickness 18mm)
30 mm 38 mm
Metal Steel: 12 mm, Steel: 13 mm,
(Thickness 1.6mm)
Aluminum: 15 mm Aluminum: 13 mm
Machine screw 6 mm 6 mm
Driving
Wood screw
6 mm (diameter) × 75 mm (length) 6 mm (diameter) × 75 mm (length)
(Requires a pilot hole) (Requires a pilot hole)
BCL1415 Li-ion 14.4 V (1.5 Ah 4 cells)
BCL1815 Li-ion 18 V (1.5 Ah 5 cells)
Rechargeable battery
BCL1430 Li-ion 14.4 V (3.0 Ah 8 cells)
EBM1830 Li-ion 18 V (3.0 Ah 10 cells)
EBL1430 Li-ion 14.4 V (3.0 Ah 4 cells)
Weight 1.6 kg 1.7 kg
Capacity
STANDARD ACCESSORIES
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery
(BCL1415, BCL1430, EBL1430)
(For DS14DFL)
CHARGER
Model UC18YGL / UC18YRL
Charging voltage 7.2 – 18V
Weight 0.6 kg
DS14DFL
1 Plus driver bit (No. 2 × 65L)...... 1
DS18DFL
2
Charger (UC18YGL or UC18YRL) ...
1
3 Plastic case....................................... 1
2. Battery (BCL1815, EBM1830)
(For DS18DFL)
Optional accessories are subject to change without
notice.
APPLICATIONS
䡬 Driving and removing of machine screws, wood
screws, tapping screws, etc.
䡬 Drilling of various metals.
䡬 Drilling of various woods.
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch
to remove the battery (see Figs. 1 and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
