Aten SN3002 [23/111] Perpendicular din rail mount

Chapter 2. Hardware Setup

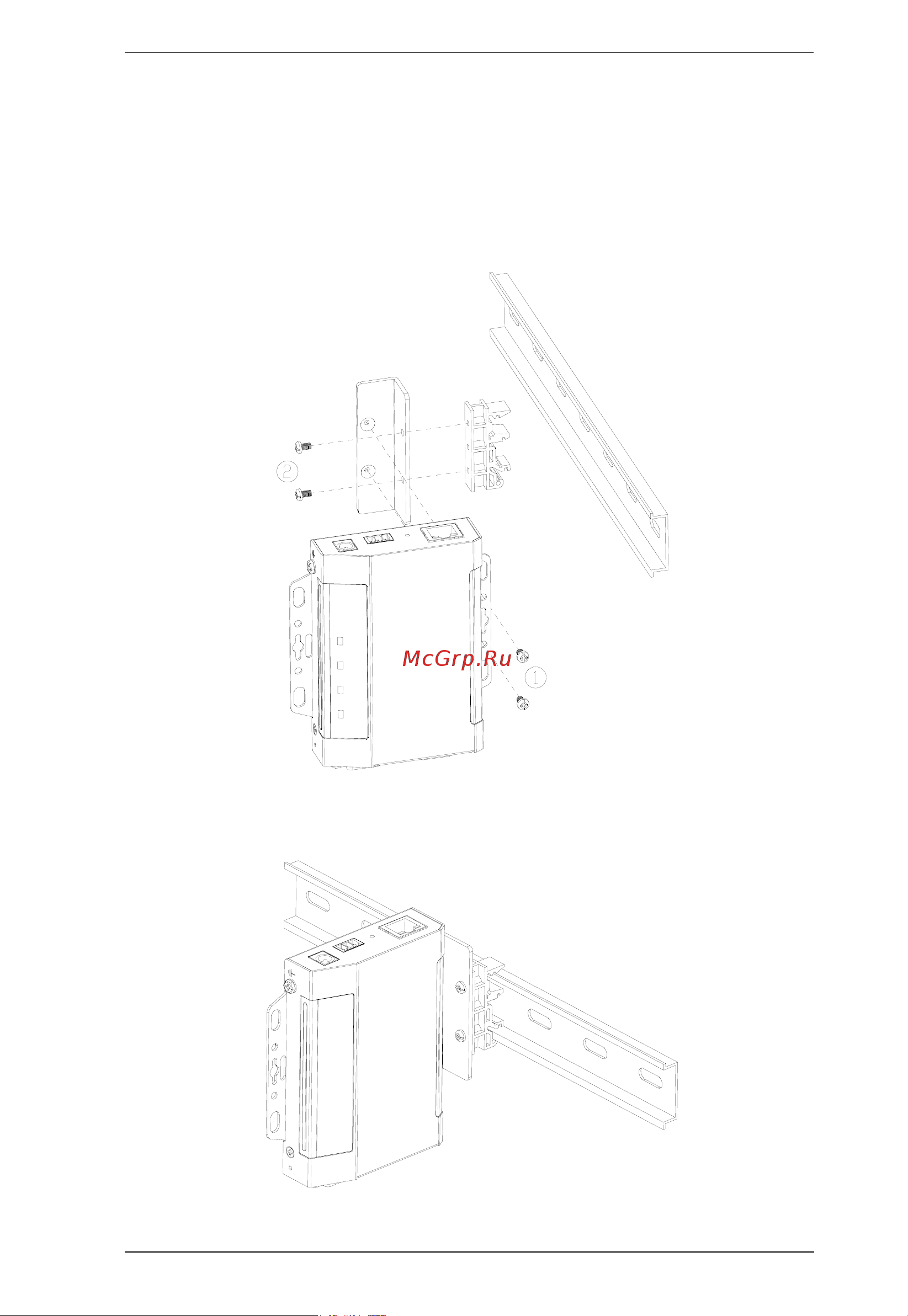

Perpendicular DIN Rail Mount

1. Attach the L-shape mounting bracket onto the unit with 2 M3x6 screws,

via its center screw holes at the side opposite to its grounding terminal.

2. Using 2 of the 4 screws enclosed, attach 1 DIN rail mount bracket onto the

side of the L-shape mounting bracket.

3. Hang the unit onto the DIN rail.
