Chapter 4. Web Console
27
Editing Serial Ports

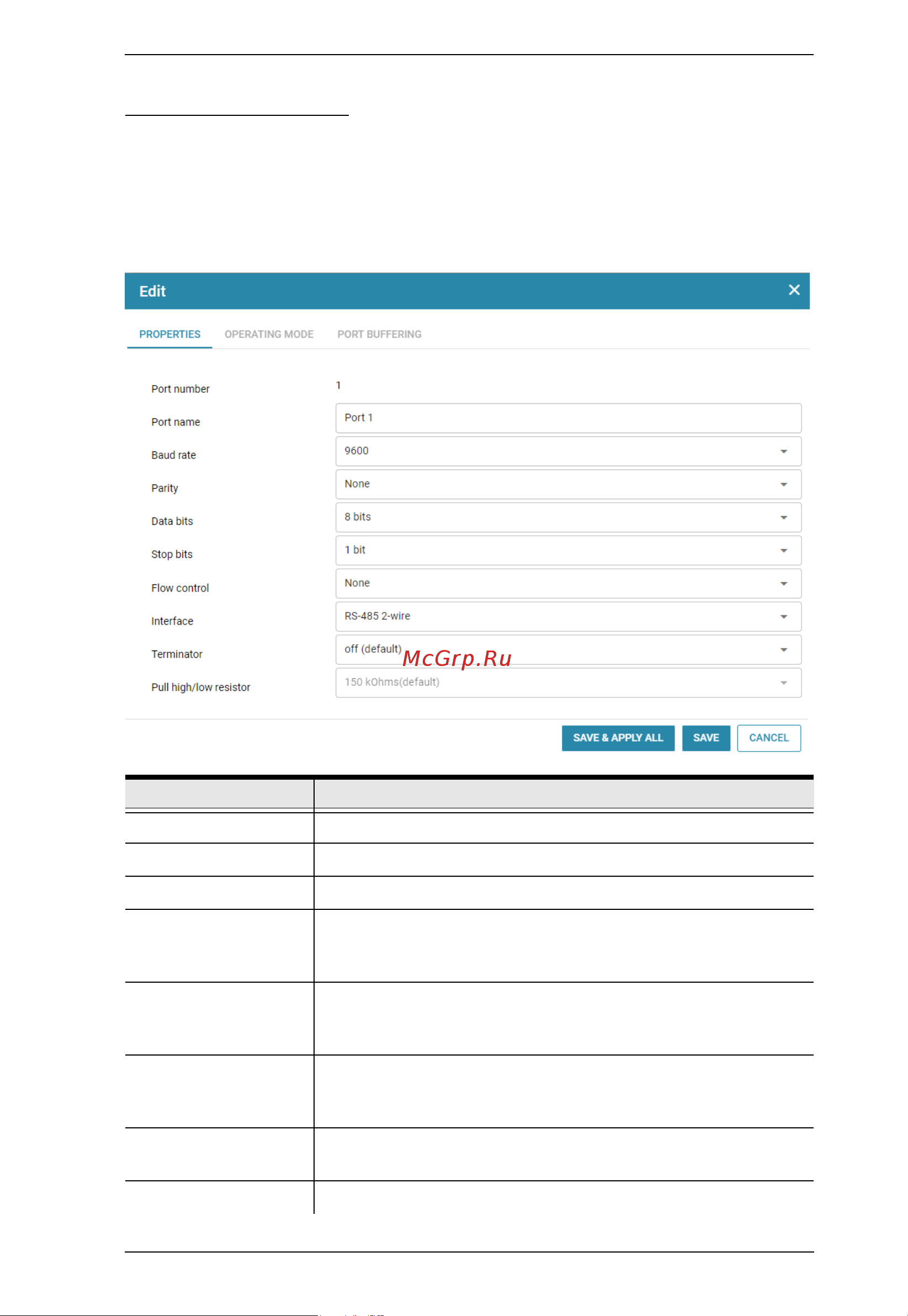

Click the EDIT button to modify the settings of a serial COM port. The edit
window, with Properties, Operating Mode, and Port Buffering tabs, appears.
Properties
Item Description
Port number Displays the number of the serial port.
Port name Sets the name of the serial port.
Baud rate Selects the serial ports’ data transfer speed. Default = “9600”
Parity Selects to check the integrity of the data transmitted, which
shall match the parity setting of the serial device connected.
Default = “None”
Data bits Selects the number of bits used to transmit one character of
data, and matching the data bit setting of the serial device
connected. Default = “8”
Stop bits Selects the stopping bit, indicating a character has been
transmitted, and matching the stop bit setting of the serial
device connected. Default = “1”
Flow control Selects how the data flow is controlled, and matching the flow
control setting of the serial device connected. Default = “None”
Interface Sets the type of serial interface for the COM port.
