Aten SN3002 [70/111] Deleting users

Secure Device Server User Manual

Deleting Users

To delete user account(s), select them and click Delete.

When asked Are you sure to delete?, Click OK to confirm.

Online Users

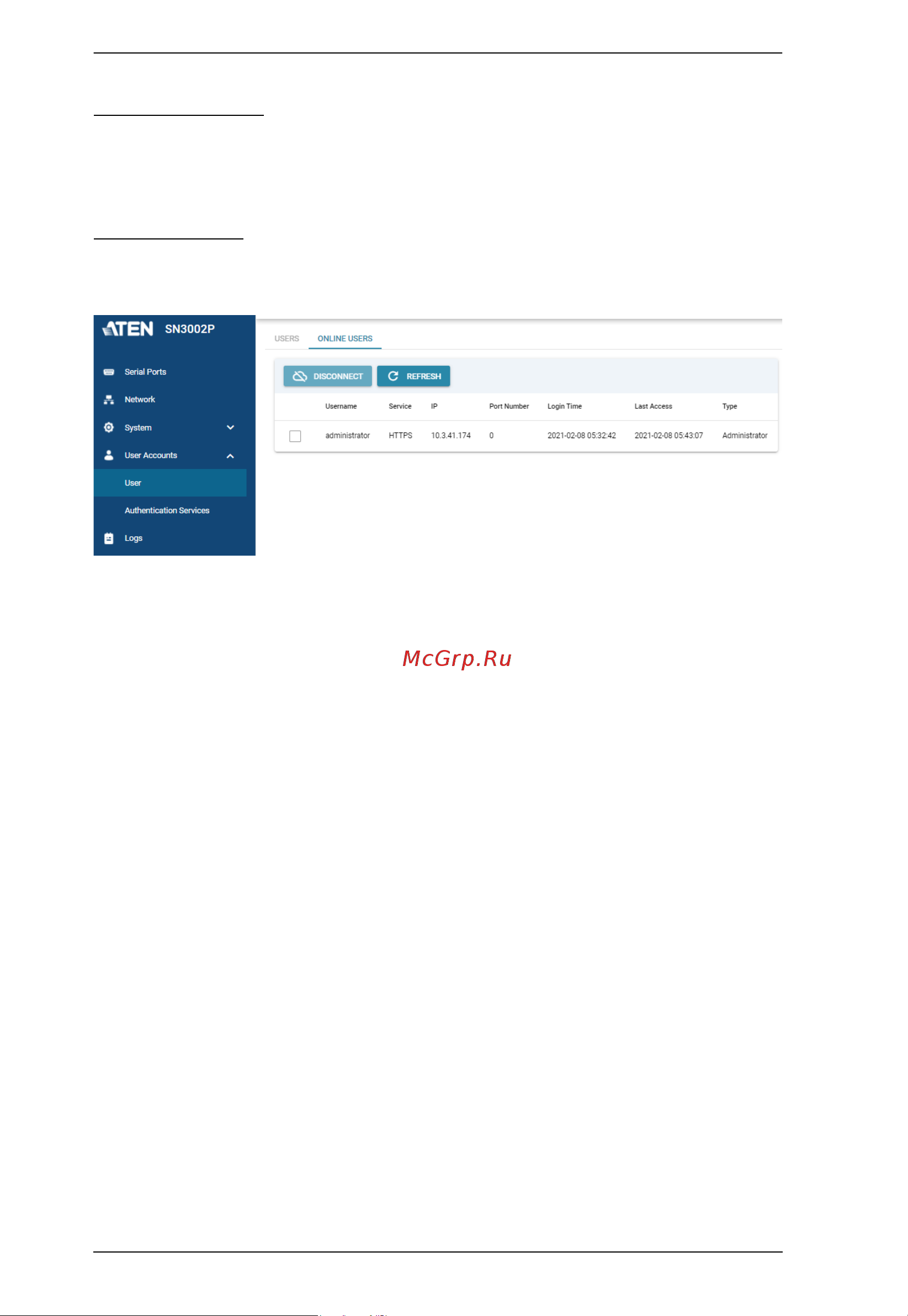

The Online Users tab displays the user accounts that are currently accessing

the Secure Device Server.

The administrator can check to select any other user accounts currently logged

in, and click Disconnect to terminate those users’ access sessions.
