Aten SN3002 [27/111] Installation

Chapter 2. Hardware Setup

Installation

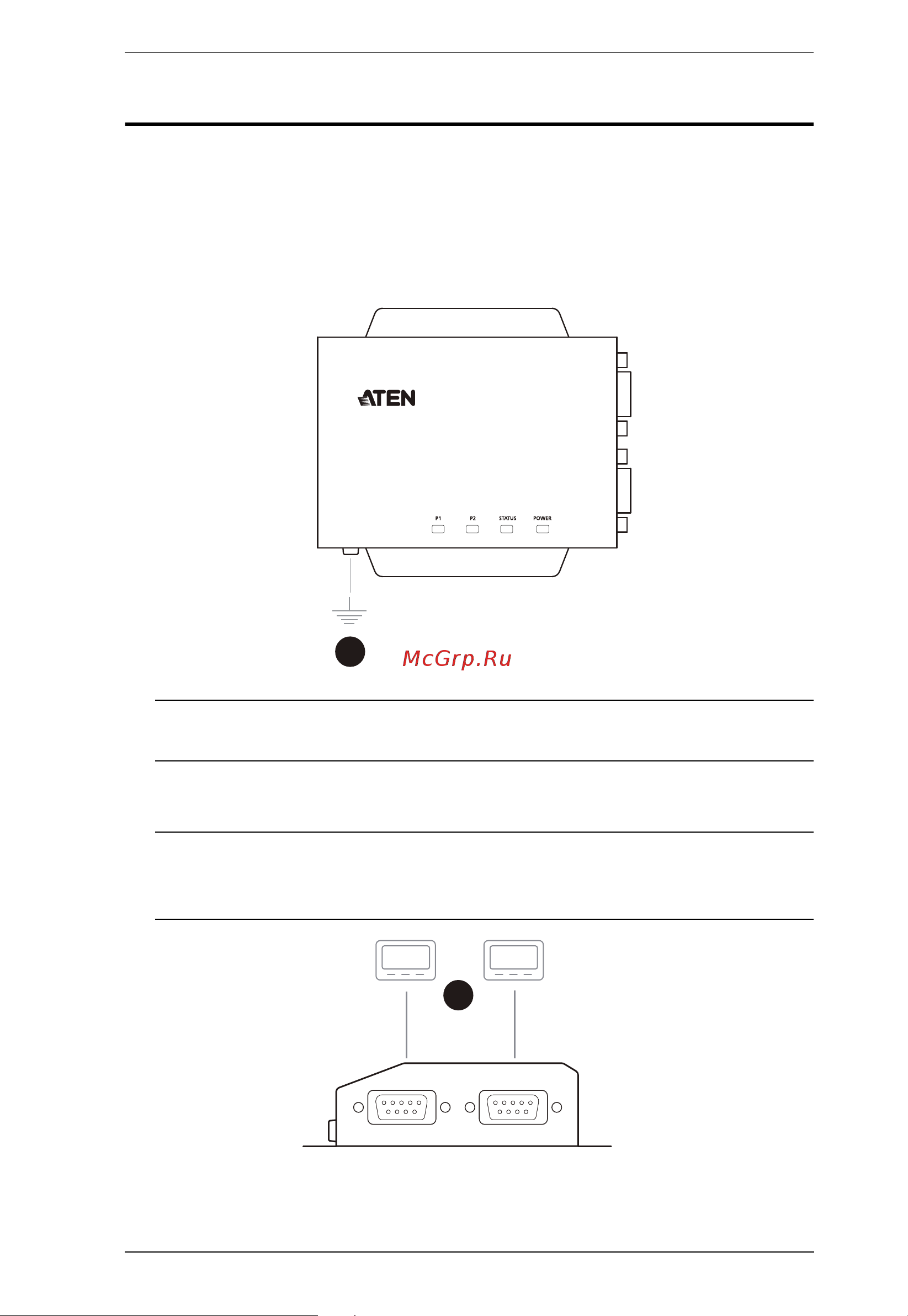

To install the Secure Device Server, follow the steps below and refer to the

diagram on the following page (the number labels correspond to the installation

steps).

1. Use a grounding wire to ground the unit by connecting one end of the

grounding terminal and the other end to a suitable grounded object.

Note: Do not omit this step. Proper grounding helps prevent damage to the

unit from power surges and static electricity.

2. Connect the unit’s serial port(s) to one or up to two serial device(s).

Note: The SN3001 / SN3001P / SN3002 / SN3002P supports RS-232

connections and SN3401 / SN3401P / SN3402 / SN3402P supports

RS-232 / RS-422 / RS-485 connections.
