Secure Device Server User Manual
16

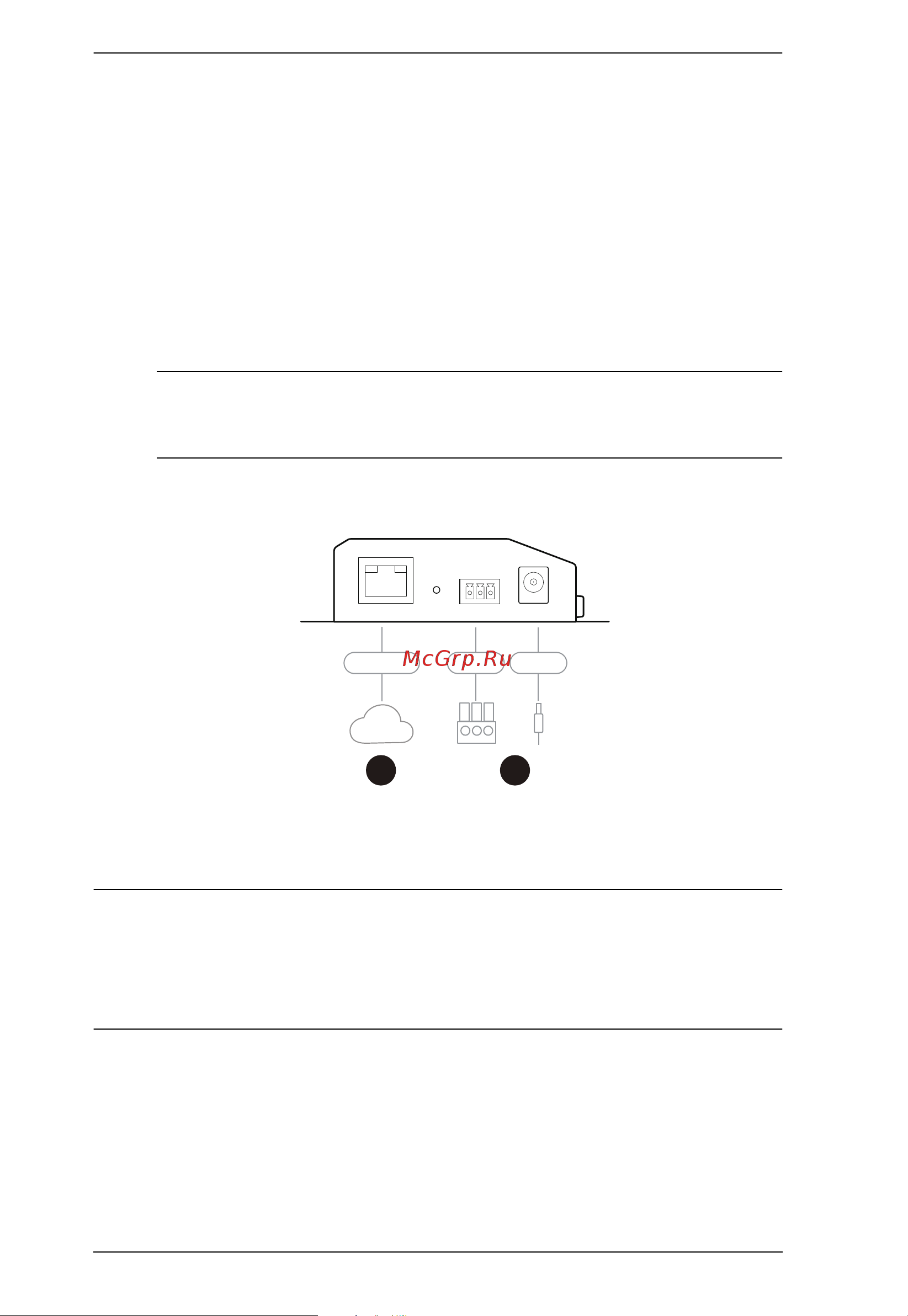

3. Connect the unit’s LAN port to the network using a Cat 5e/6 cable. For
SN3001P / SN3002P / SN3401P / SN3402P (PoE 802.3af compliant),
users can simultaneously supply power to the unit through a PoE switch
and skip 4.
4. Connect the unit to power, thereby turning it on, by doing one, or both of
the following for power redundancy:
Plug the power adapter provided (not included for SN3001P /
SN3002P / SN3401P / SN3402P) into an AC power source, and plug
its cable into the unit’s power jack.
Note: The temperature tolerance of the power adapter is 0 – 40 °C. If
your environment temperature is 40 – 60 °C, you can only power
the device via the power terminal.
Connect DC + and - wires (DC 9 – 48 V) to the unit’s power terminal
with the terminal block provided.
5. After supplying power, wait for about 50 seconds for the Secure Device
Server to be ready and lights its status LED in constant green.
Note: When more than one power supply is connected, the additional power
connections maintain operation when the other is interrupted. For example, if
you have the device connected to power via both its power jack and power
terminal, the power terminal maintains operation when the power from the
power jack fails, and vice versa.
3 4
PowerPowerNetwork
