25
Chapter 4
Web Console
Web Interface

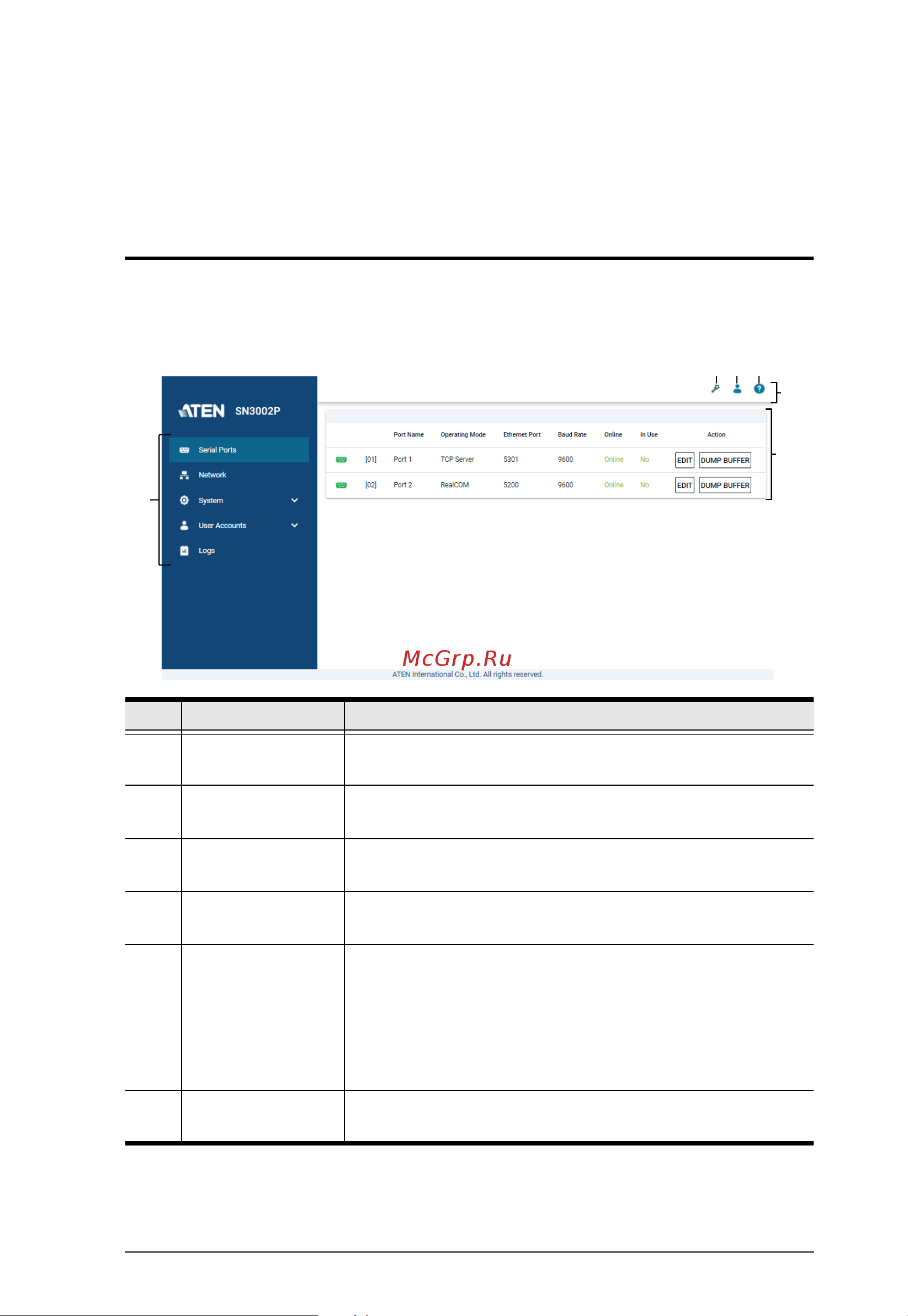

The web interface of the Secure Device Server and its components are shown
and explained below:
No. Item Description
A Sidebar Menu Provides a selection of configuration pages. Click to select
a configuration page and/or expand submenus.
B Task Bar Contains access to the Quick Setup Wizard, user settings
(including logout) and the device info.
C Interactive Display
Panel
Displays the configuration page currently selected.
1 Quick Setup
Wizard
Takes users through the basic settings of the Secure
Device Server. See p. 22.
2 Personal Click to display the user currently logged in, the time of
login, user preference option, change password, and
logout options.
Click Preferences to change the language of the interface.
Click Change password to change the password for the
current user account.
3 About Click to display the model number and the firmware
version of the device.
A
B
C
2
31
