Chapter 8. Remote Terminal Operation
77
Terminal Main Menu

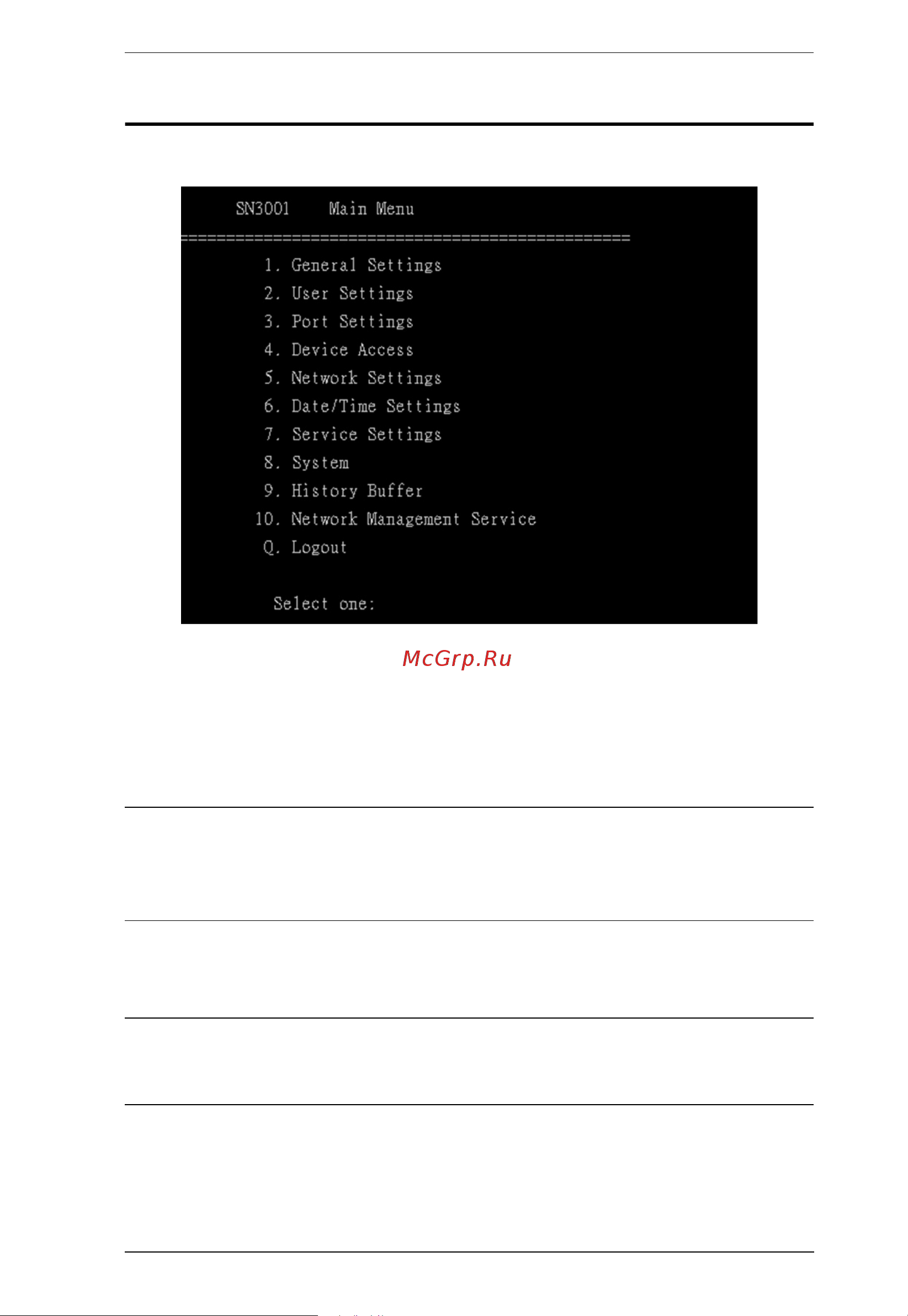

Once logged in, the following text-based main menu appears.
The terminal session main menus contain text-based configurations similar to
that of the web browser previously described, but with a few limitations, such
as unable to perform firmware upgrade and setting backup & restore.
Users can refer to the information provided in the browser version (see Web
Console, page 25) while working through the submenus.
Note: As with the browser version, access to many of these submenus are
restricted to the administrator or users with COM port access
permissions. If you select a submenu that you are not authorized for,
nothing will happen.
Users can access the serial devices connected to the Secure Device Server via
4. Device Access.
Note: To access a connected serial device, the Operating Mode of the serial
port must be set to Console Management (see Operating Mode,
page 30).
To close the terminal session, bring up the Main Menu and press [Q] to log out.
Then close the window.
