Secure Device Server User Manual
24

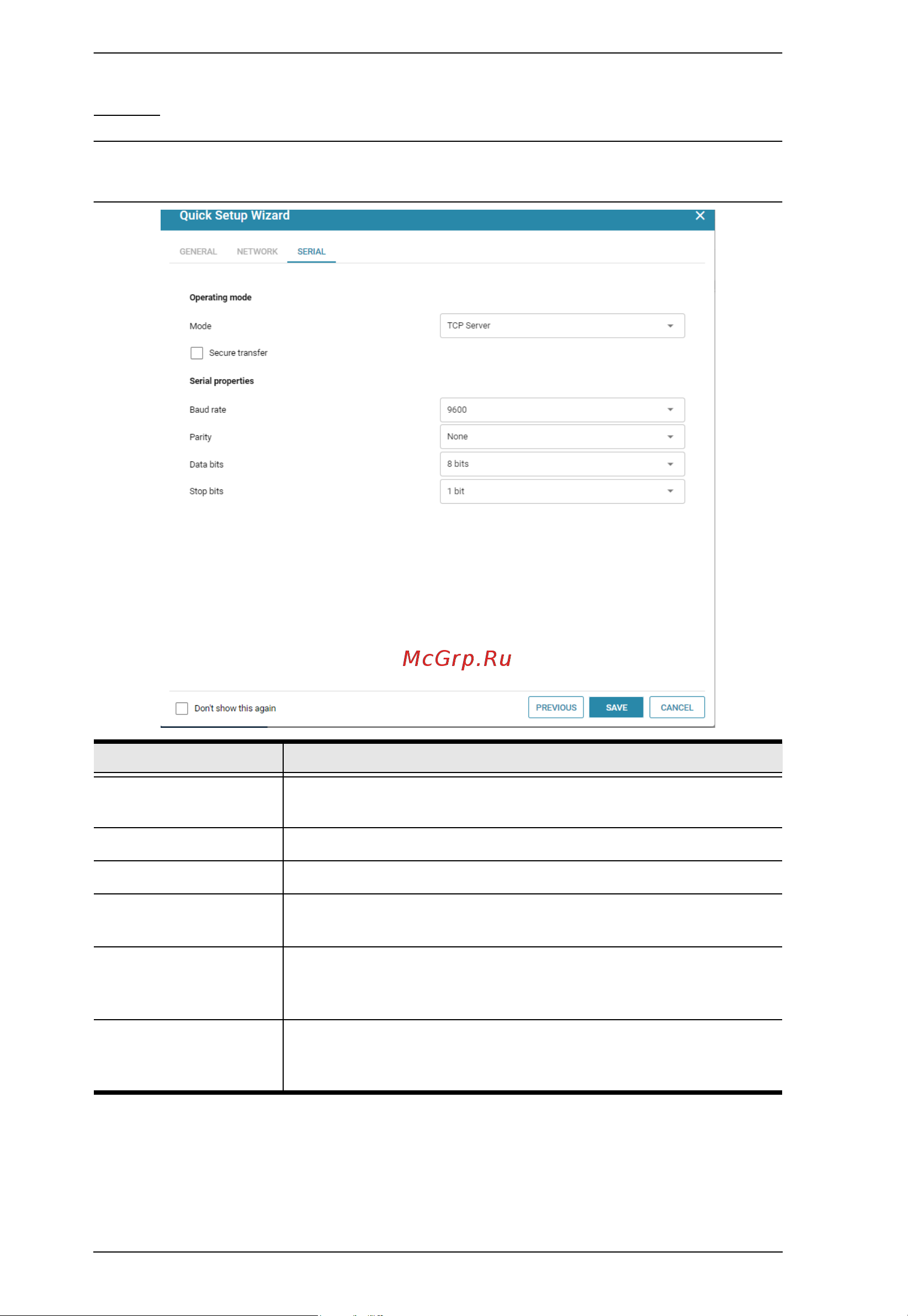

Serial
Note: Settings on the Serial tab applies to all serial ports of the Secure Device
Server.
Click Save for the settings to take effect.The Secure Device Server’s web
console main screen is displayed. See Web Console for details.
Item Description
Mode Selects the operation mode for the Secure Device Server’s
serial port(s). See Port Operating Modes.
Secure transfer Check for secured data transmission.
Baud rate Selects the serial ports’ data transfer speed.
Parity Selects to check the integrity of the data transmitted, which
shall match the parity setting of the serial device(s) connected
Data bits Selects the number of bits used to transmit one character of
data, and matching the data bit setting of the serial device(s)
connected.
Stop bits Selects the stopping bit, indicating a character has been
transmitted, and matching the stop bit setting of the serial
device(s) connected.
